Description

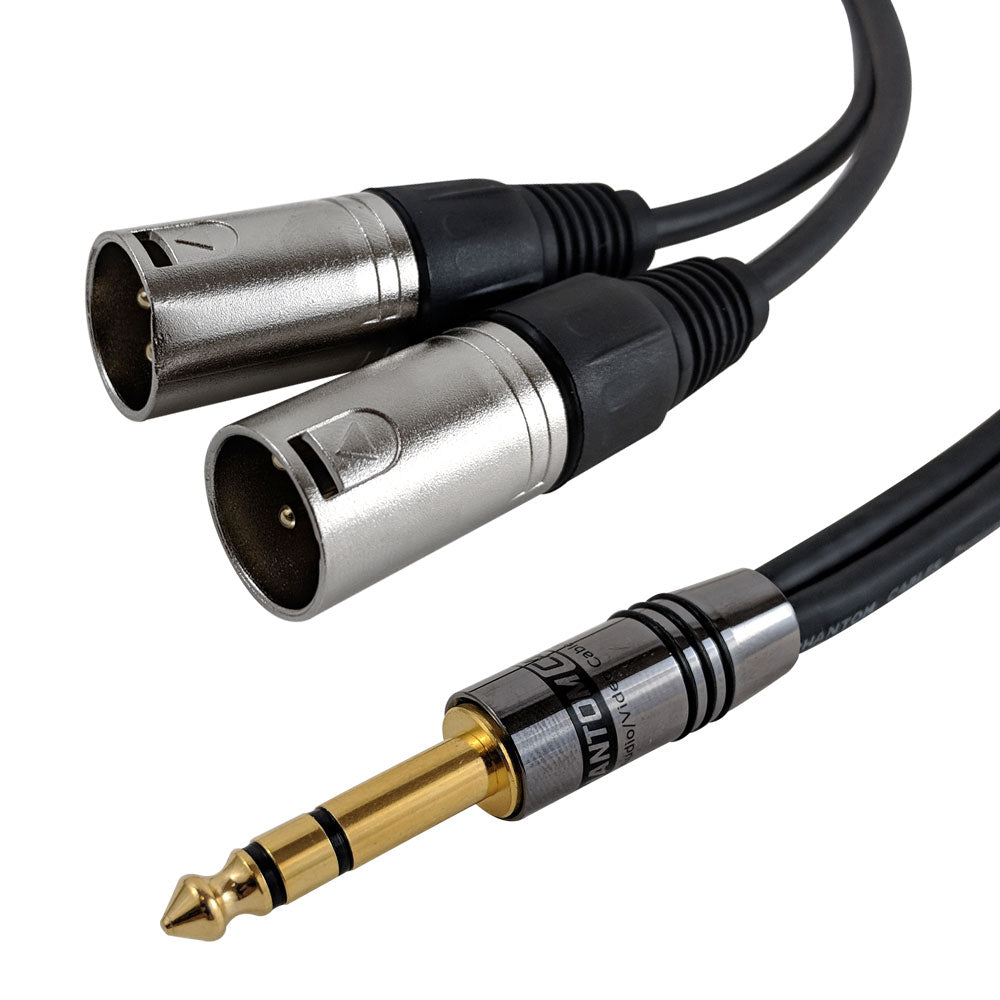

This stereo audio cable has a 1/4 inch TRS male on one end and two XLR males on the other. It is typically used to connect audio devices such as PCs and stereo systems to the input of unbalanced pro audio equipment.
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra-flexible to maximize mobility
- High quality, gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 5.0mm x 10.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | 1/4 inch TRS Male |
| Connector B | XLR Male |
| Connector C | XLR Male |
| Approvals | |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.45 lbs | 0.55 lbs | 0.80 lbs | 1.00 lbs | 1.35 lbs | 2.00 lbs | 2.65 lbs | 3.65 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| TRS-2XLRM-01.5 | 1.5ft | 0.11 lb |
| TRS-2XLRM-03 | 3ft | 0.19 lb |
| TRS-2XLRM-06 | 6ft | 0.34 lb |
| TRS-2XLRM-10 | 10ft | 0.53 lb |
| TRS-2XLRM-15 | 15ft | 0.77 lb |
| TRS-2XLRM-25 | 25ft | 1.25 lb |
| TRS-2XLRM-35 | 35ft | 1.73 lb |
| TRS-2XLRM-50 | 50ft | 2.45 lb |
