Description

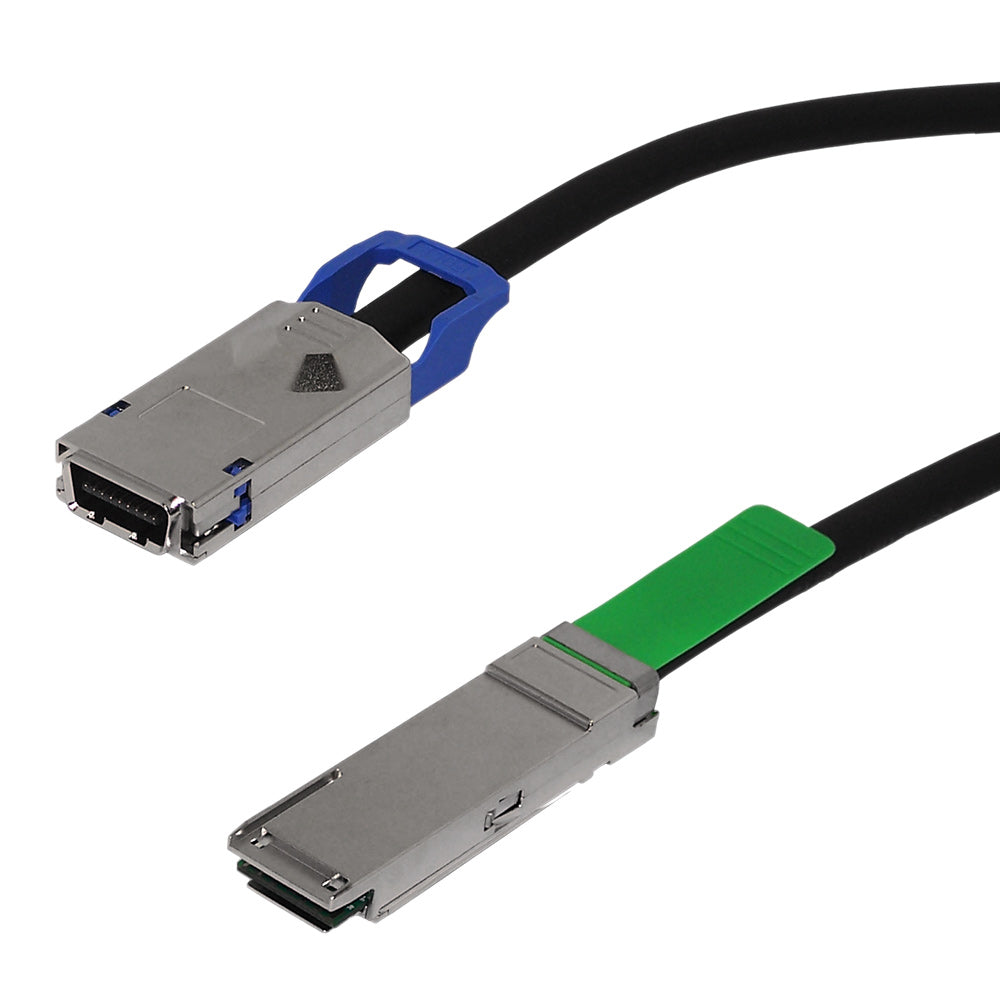

This CX4/QSFP+ InfiniBand cable has a QSFP+ (SFF-8436) connector on one end and a CX4 (SFF-8470) on the other. It is typically used to connect newer generation 40G QSFP enabled devices to existing CX4 InfiniBand network equipment.
| Physical Characteristics | |
|---|---|
| Impedance | 100Ā±5 ohm |
| Application | SAS 3G and CX4 |
| Wire Gauge | 28AWG |
| Cable Jacket Material | PVC |
| Contact Plating | Gold Plated |
| Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
| Connectors | |
| Connector A | QSFP+ (SFF-8436) |
| Connector B | CX4 Ejector Type (SFF-8470) |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 Cable |
| Warranty Information | |
| Warranty | 5 Year Warranty |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| MS-600-0.5M | 0.5m | 0.35 lb |
| MS-600-1M | 1m | 0.5 lb |
| MS-600-2M | 2m | 0.65 lb |
| MS-600-3M | 3m | 1.2 lb |
| MS-600-5M | 5m | 1.4 lb |
| MS-600-7M | 7m | 1.75 lb |
