Description

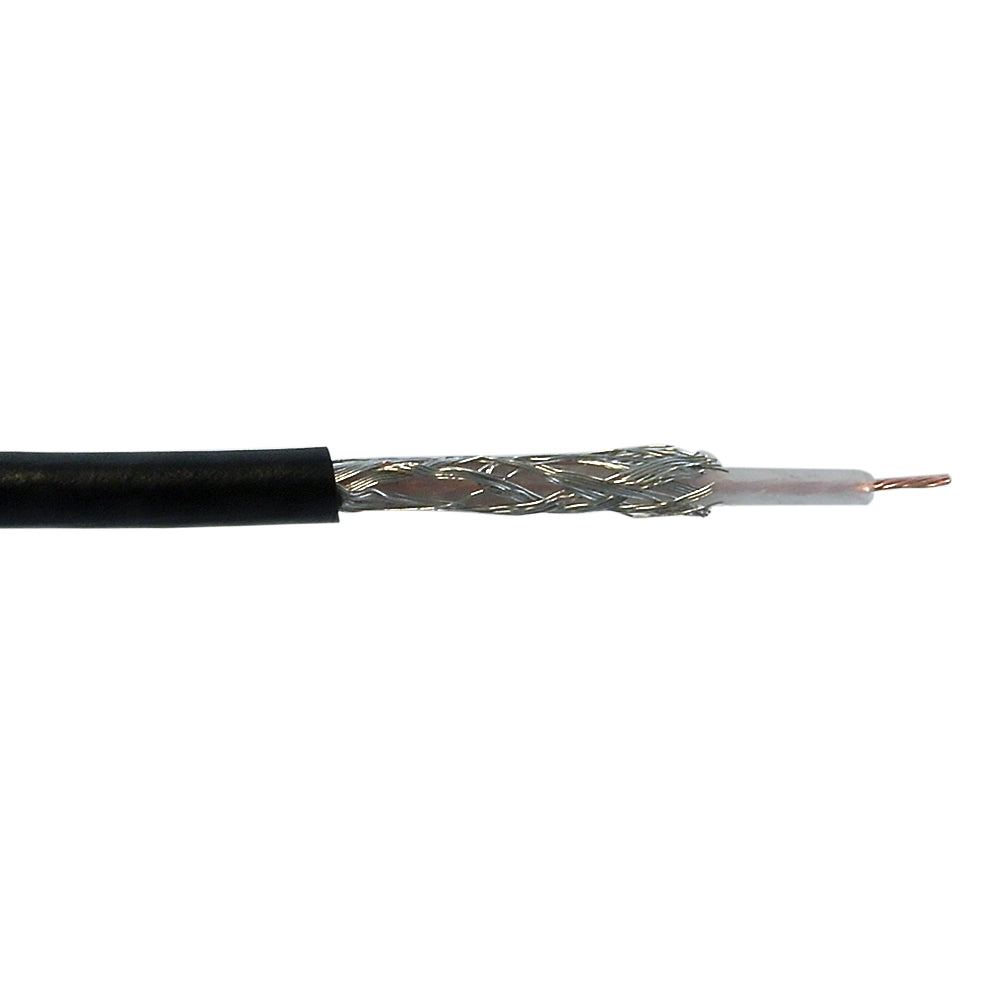

This bulk RG174 cable is and consists of a 26AWG stranded cable. It is ideal for jumper assemblies in wireless communication systems, short antenna feeder runs, GPS and mobile antenna applications.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Diameter | 2.79mm |
| Wire Gauge | 26AWG |
| Stranding Count & Diameter | 7x34 |
| Inner Conductor | 7/0.16mm BC |
| Insulation | 1.52mm Solid PE |
| Shield | 64 * 0.12mm |
| Conductor Material | Oxygen-Free Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] |
| Cable Shielding | 90% Tinned Copper |
| Temperature Rating | -20 ~ +75℃ |
| Electrical Characteristics | |
| Impedance | 50 ohms |
| Velocity of Propagation | 66% |
| Approvals/Environmental | |
| c(ETL)us | Compliant |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
Spec Sheets
Lead-time
We currently have full 1,000ft spools in stock. For any other lengths, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
| SKU | Options | Weight |
| BK-CXRG174-050 | 50ft | 1.15 lb |
| BK-CXRG174-100 | 100ft | 2.2 lb |
| BK-CXRG174-250 | 250ft | 5.75 lb |
| BK-CXRG174-500 | 500ft | 11.5 lb |
| BK-CXRG174 | 1000ft | 22.0 lb |
