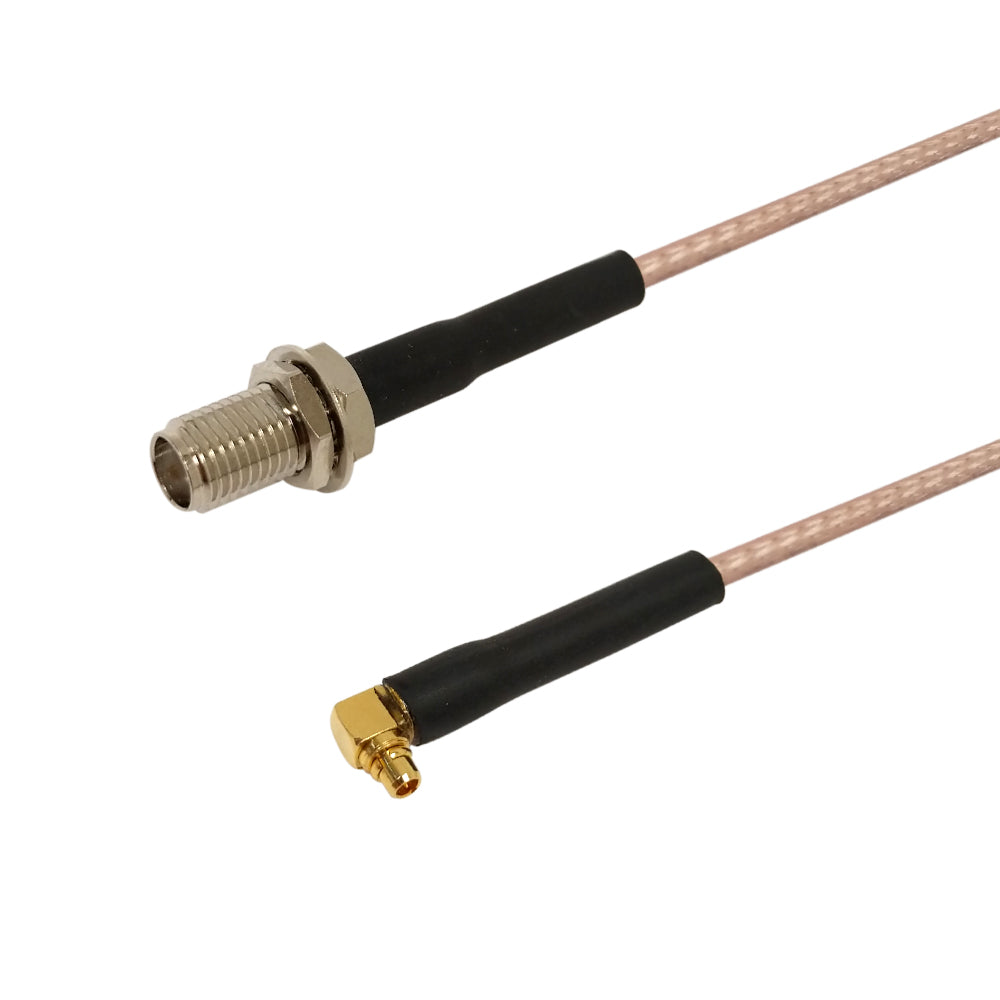

This RG316 antenna cable has a SMA female on one end and a MMCX right angle male on the other. It is typically used to connect devices that require radio frequency transmissions such as GPS, broadcast, telecommunications, etc. Due to its thin diameter and performance characteristics it is often used in military applications or areas with limited space and high performance requirements.
- Constructed of premium RG316 50 ohm RF coaxial cable
- Heat shrink added on either end for added strain relief
- Premium grade connectors allow for optimum durability and connectivity
| Physical Characteristics | |
|---|---|
| Cable Type | RG316 |
| Connectors | |
| Connector A | SMA Female |
| Connector B | MMCX Right Angle Male |
| Packaging Information | |
| Package Quantity | 1 Cable |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Options | Weight |
| RF316-1674-00.5 | 0.5ft | 0.05 lb |
| RF316-1674-01 | 1ft | 0.07 lb |
| RF316-1674-01.5 | 1.5ft | 0.07 lb |
| RF316-1674-03 | 3ft | 0.15 lb |
| RF316-1674-06 | 6ft | 0.21 lb |
| RF316-1674-10 | 10ft | 0.33 lb |
