Description
Overview

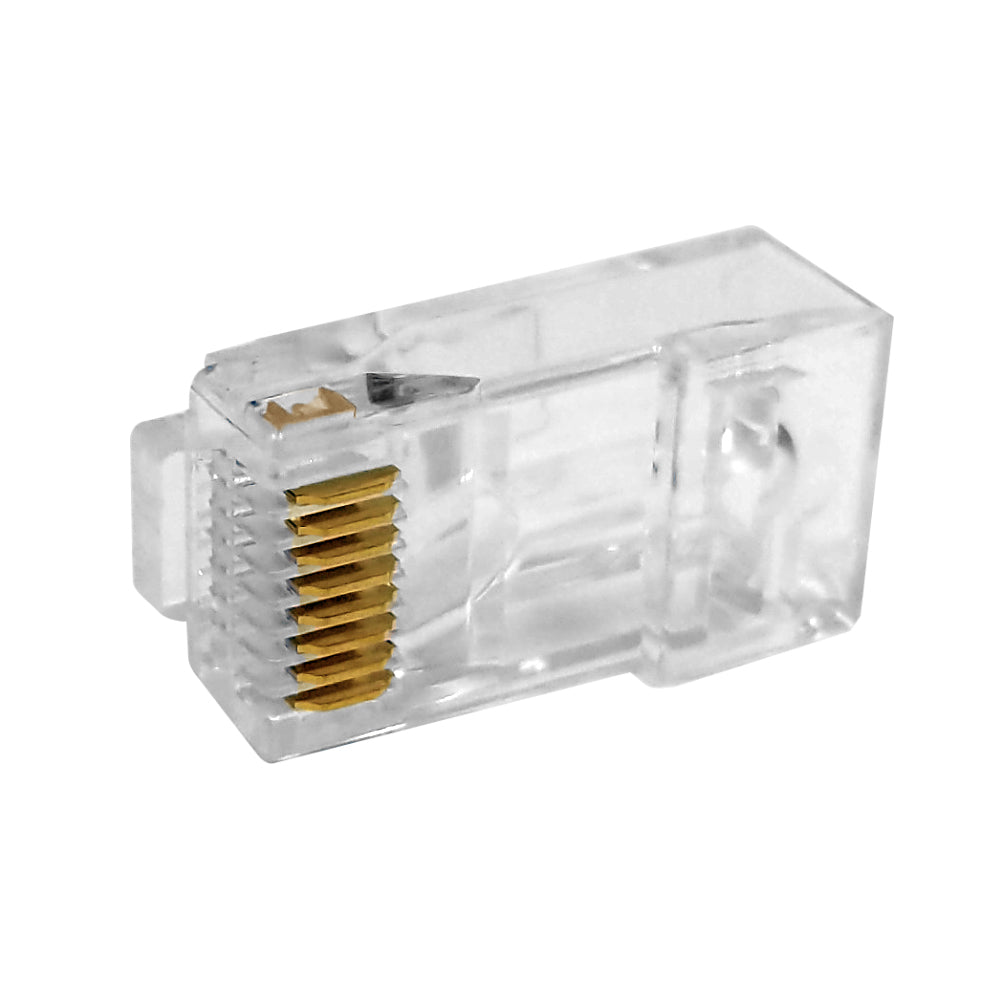

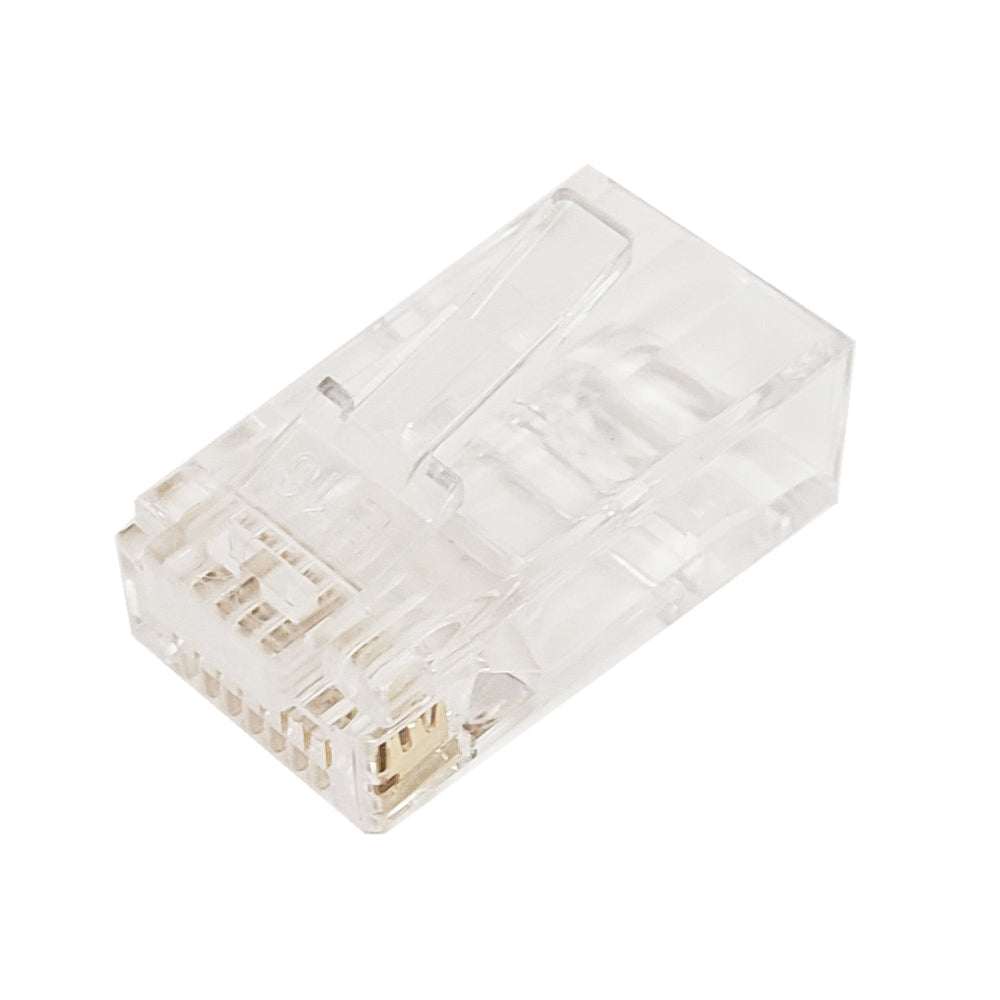

This modular RJ45 Cat5e/Cat6 connector is a pass through style, 8 position, 8 conductor plug. It's typically terminated on 4 pair solid or stranded round Cat5e/Cat6 cables. It's pass through style design makes the wire insertion process simple and quick.
 |
Easy to UseThis connector has an open end at the front which allows cable wires to be easily fed through. This allows you to arrange the wires easily and visually confirm that the wiring is correct before crimping. Better PerformanceWire twists can be better maintained since the plug can be seated tightly close to the cable jacket. This ensures optimal cable performance. |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Transparent |
| Housing Material | Polycarbonate UL 94V-2 |
| Contact Material | Bronze |
| Contact Plating | 50 micron Gold Plating |
| Contact Type | 3 prong |
| Cable Type | Round, UTP |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Connector | RJ45 Male (8P8C) |
| Performance Rating | Cat5e/Cat6 |
| Conductor Type | Solid or Stranded Cable |
| Conductor Opening Diameter | 1.0mm |
| Wire Gauge Accepted | 24AWG to 26AWG (With a Conductor Insulation < 1.0mm) |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 50 |
| Product Weight | 0.16 lbs [0.07 kg] |
| Contents | |
| Included in Package | 1 - Pack of 50 Connectors |
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-RJ45C5PT-50 | 0.24 lb |
