Description

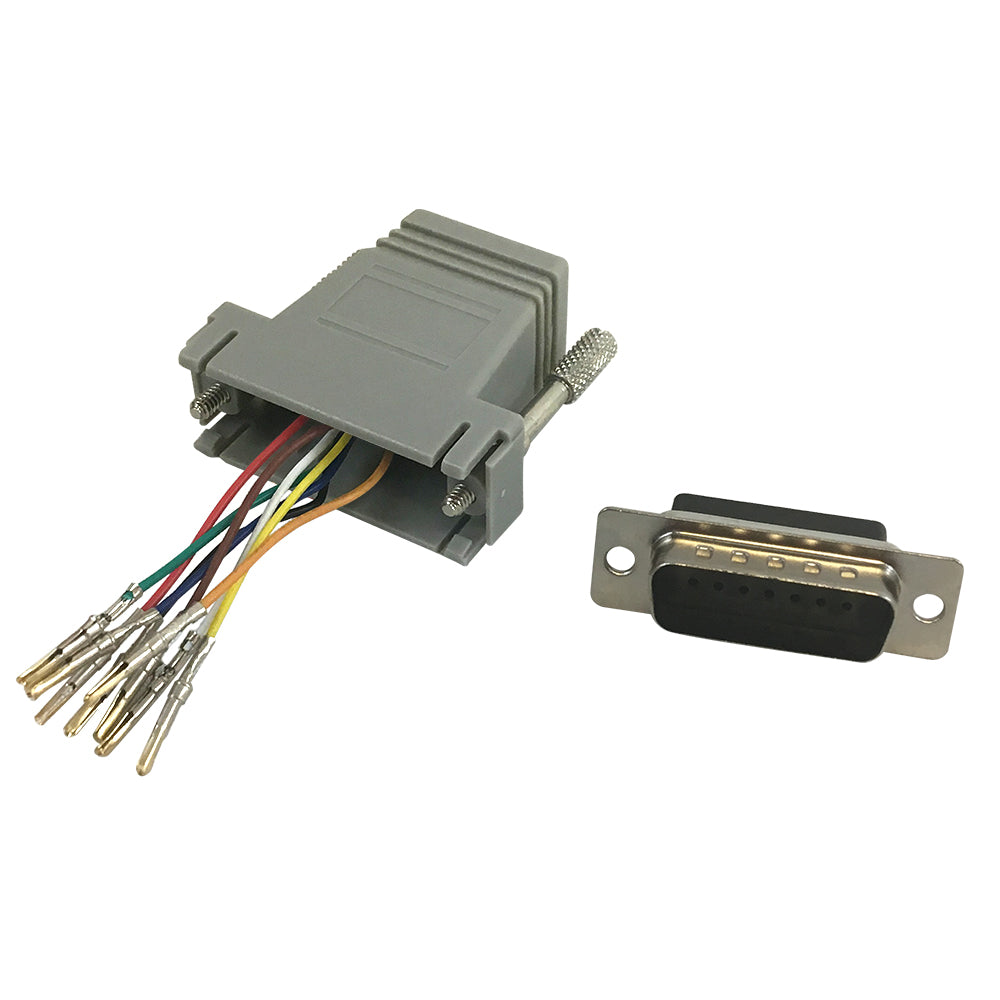

This modular adapter has a DB15 male connector on one end and a RJ45 female connector on the other. It converts a DB15 RS232, RS422 and RS485 serial port to an RJ45 connection. This adapter comes unpinned for custom pin out configuration.
| Physical Characteristics | |
|---|---|
| Color | Grey |
| DB9 Connector Plating | Nickel |
| Contacts | Gold |
| Connector(s) | |
| DB15 | Male |
| RJ45 | Female |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Product Weight | 0.05 lbs [0.02 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| MD-RJ45-DB15M | 0.05 lb |
