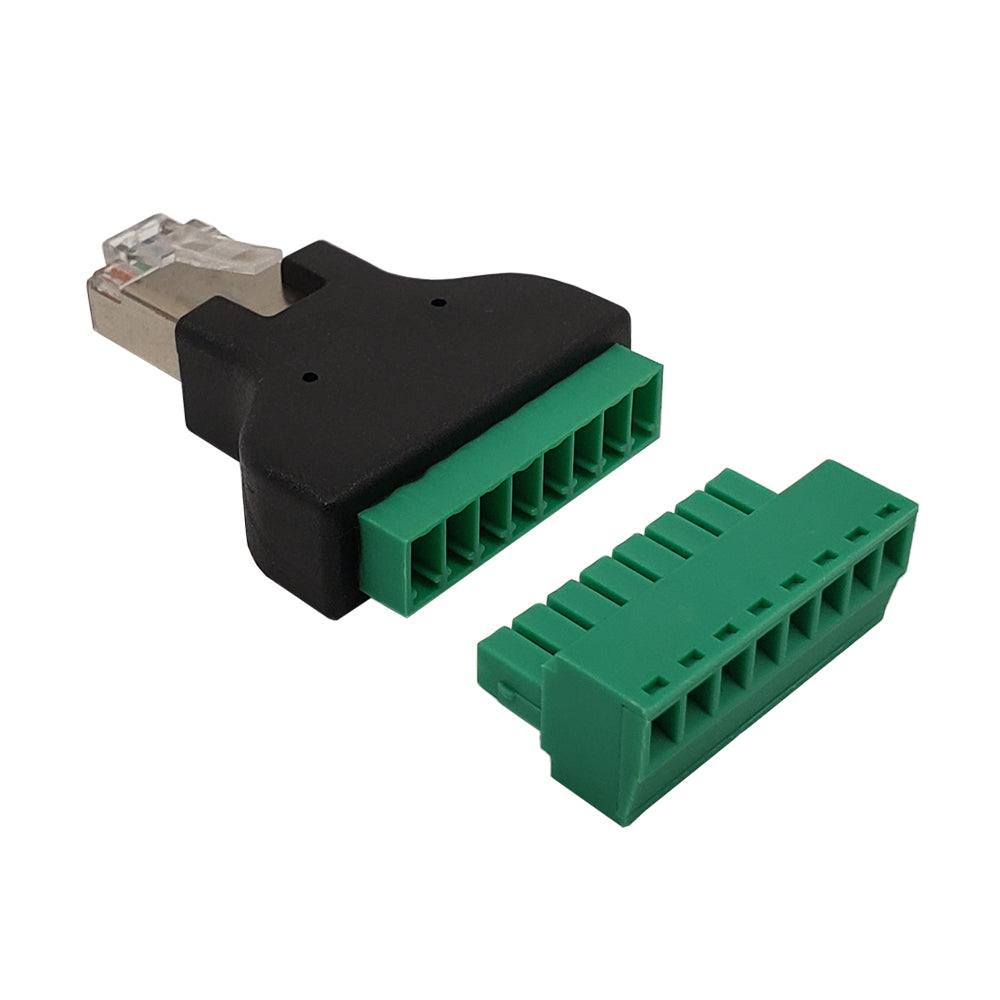

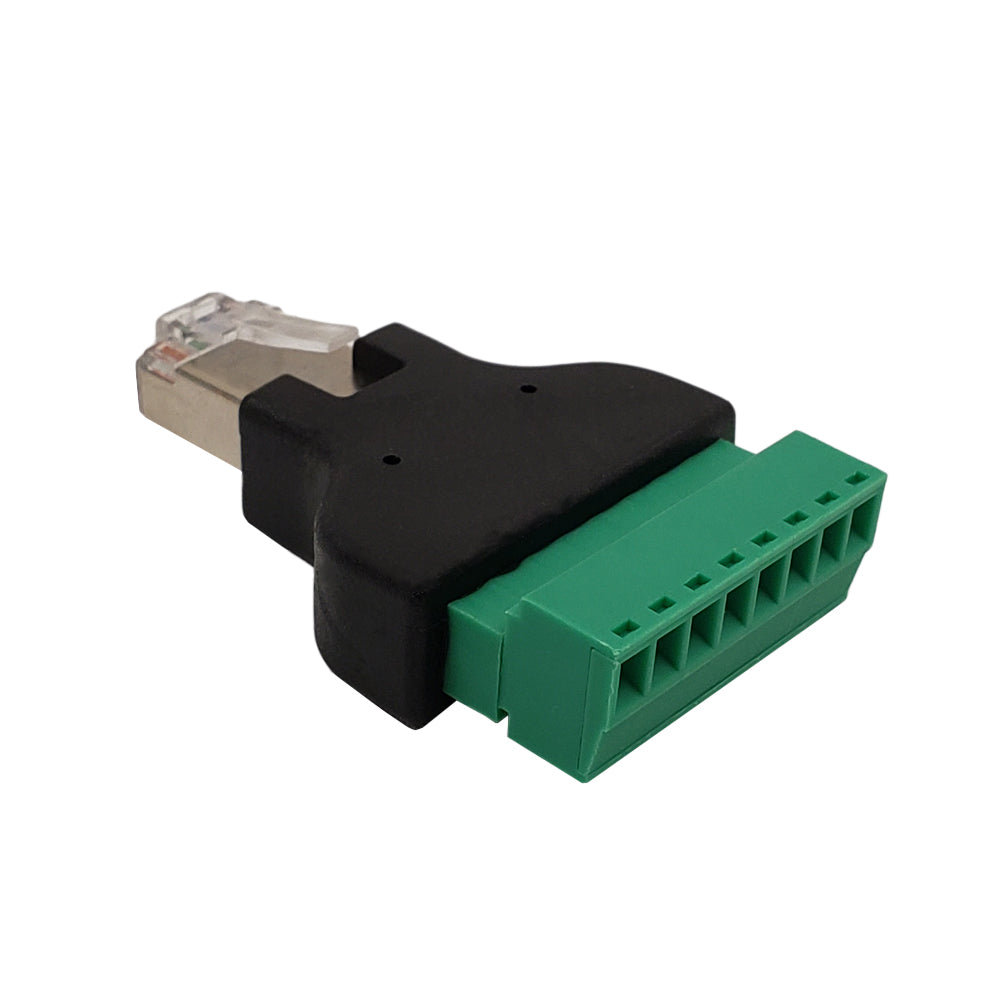

This connector consists of a RJ45 male on one end and eight screw terminals on the other end. It is typically used in a variety of PoE and CCTV applications. The terminal block is removable for easier termination.
| Physical Characteristics |
|---|
| Color |
Black |
| Contact Plating |
Gold |
| Attachment Method |
Screw Down |
| Wire Gauge |
28AWG to 16AWG |
| Pinout |
| Connector(s) |
| Connector A |
1 - RJ45 (8P8C) Male |
| Connector B |
8 - Screw Down Terminals |
| Environmental |
|---|
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.02 lbs [0.01 kg] |
|
