Overview

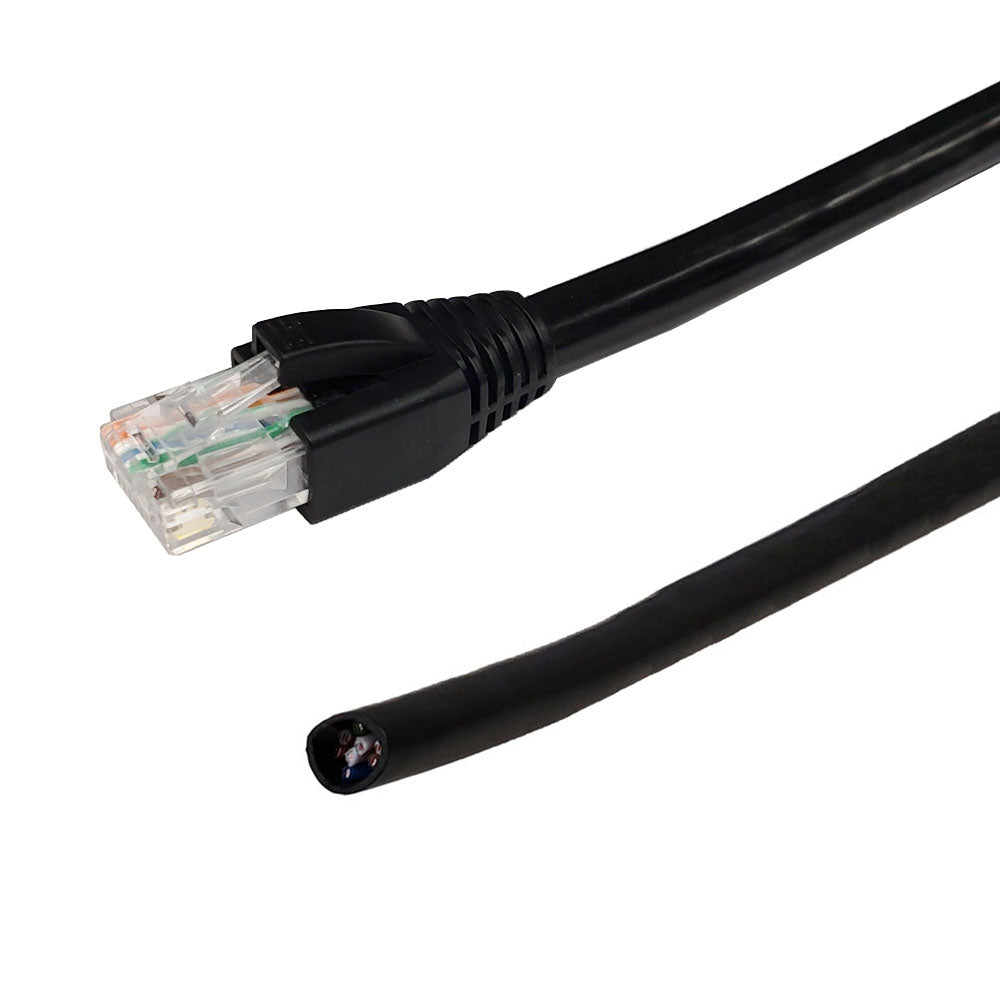

This Cat6a UTP outdoor UV direct burial ethernet cable consists of a RJ45 male on one end and has no termination on the other. The un-terminated end is typically used for punching down onto a jack or panel and the RJ45 end can be used outdoors either above or below ground as premise wiring to connect network devices.
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Outdoor Rated CableIdeal for use in cable runs that are located above or below ground as premise wiring to connect network devices.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Conductor Material | 100% Bare Copper |
| Cable Diameter | 7.60 mm |
| Wire Gauge | 23AWG Solid |
| Color Code | 568A / 568B |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Temperature Rating | -40Ā°C to +75Ā°C |
| Strain Relief |
Tab Style Strain Relief Boot |
| Jacket Rating | Direct Burial / UV |
| Jacket Material | LLDPE |
| UV | Yes |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | Un-terminated |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| 15ft | 16ft | 17ft | 18ft | 19ft | 20ft | 21ft | 22ft | 23ft | 24ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.43 lbs | 0.45 lbs | 0.47 lbs | 0.49 lbs | 0.51 lbs | 0.53 lbs | 0.55 lbs | 0.57 lbs | 0.58 lbs | 0.59 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs | 3.75 lbs | 4.50 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Options | Weight |
| CAT6AOPT-15BKA | 15ft / 568A | 0.5 lb |
| CAT6AOPT-15BKB | 15ft / 568B | 0.5 lb |
| CAT6AOPT-16BKA | 16ft / 568A | 0.57 lb |
| CAT6AOPT-16BKB | 16ft / 568B | 0.57 lb |
| CAT6AOPT-17BKA | 17ft / 568A | 0.64 lb |
| CAT6AOPT-17BKB | 17ft / 568B | 0.64 lb |
| CAT6AOPT-18BKA | 18ft / 568A | 0.71 lb |
| CAT6AOPT-18BKB | 18ft / 568B | 0.71 lb |
| CAT6AOPT-19BKA | 19ft / 568A | 0.78 lb |
| CAT6AOPT-19BKB | 19ft / 568B | 0.78 lb |
| CAT6AOPT-20BKA | 20ft / 568A | 0.63 lb |
| CAT6AOPT-20BKB | 20ft / 568B | 0.63 lb |
| CAT6AOPT-21BKA | 21ft / 568A | 0.7 lb |
| CAT6AOPT-21BKB | 21ft / 568B | 0.7 lb |
| CAT6AOPT-22BKA | 22ft / 568A | 0.71 lb |
| CAT6AOPT-22BKB | 22ft / 568B | 0.71 lb |
| CAT6AOPT-23BKA | 23ft / 568A | 0.72 lb |
| CAT6AOPT-23BKB | 23ft / 568B | 0.72 lb |
| CAT6AOPT-24BKA | 24ft / 568A | 0.74 lb |
| CAT6AOPT-24BKB | 24ft / 568B | 0.74 lb |
| CAT6AOPT-25BKA | 25ft / 568A | 0.77 lb |
| CAT6AOPT-25BKB | 25ft / 568B | 0.77 lb |
| CAT6AOPT-30BKA | 30ft / 568A | 0.95 lb |
| CAT6AOPT-30BKB | 30ft / 568B | 0.95 lb |
| CAT6AOPT-35BKA | 35ft / 568A | 1.1 lb |
| CAT6AOPT-35BKB | 35ft / 568B | 1.1 lb |
| CAT6AOPT-50BKA | 50ft / 568A | 1.55 lb |
| CAT6AOPT-50BKB | 50ft / 568B | 1.55 lb |
| CAT6AOPT-75BKA | 75ft / 568A | 2.26 lb |
| CAT6AOPT-75BKB | 75ft / 568B | 2.26 lb |
| CAT6AOPT-100BKA | 100ft / 568A | 3.0 lb |
| CAT6AOPT-100BKB | 100ft / 568B | 3.0 lb |
| CAT6AOPT-125BKA | 125ft / 568A | 5.0 lb |
| CAT6AOPT-125BKB | 125ft / 568B | 5.0 lb |
| CAT6AOPT-150BKA | 150ft / 568A | 6.2 lb |
| CAT6AOPT-150BKB | 150ft / 568B | 6.2 lb |
