Sealed Lead Acid Battery 12V 26amp


Price:
Sale price$67.78 USD
Stock:
In stock

Description

This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.

Application

Specifications

Physical Characteristics
Type UPS Replacement
Voltage 12V
Amps 26A
Terminal Type T3/B2
Container Material ABS(UL-94HB)

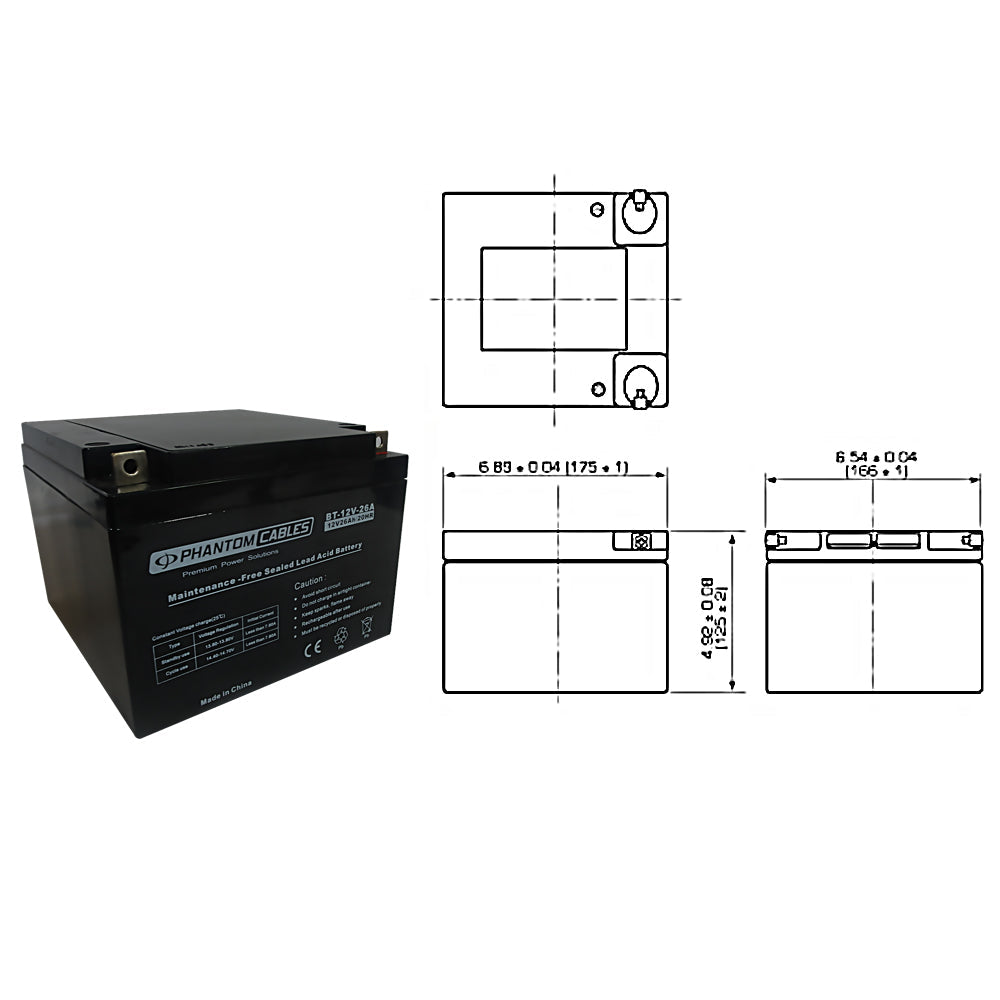

Length 6.9 inches [175mm]
Width 6.5 inches [165mm]
Height 4.9 inches [125mm]
Operating Temperature 25±3℃ (77±5℃F )
Performance
Internal Resistance Approx.14m٦
Max. Discharge Current 390A(5S)
Rated Capacity 26.00AH (20hr, 1.75V/cell,25℃/77℃F)
24.80AH (10hr, 1.75V/cell,25℃/77℃F)
21.35AH (5hr, 1.75V/cell,25℃/77℃F)
19.20AH (3hr, 1.75V/cell,25℃/77℃F)
13.19AH (1hr, 1.75V/cell,25℃/77℃F)
Cycle Use Charge Current Less Than 0.25CA
14.1V~14.7V@25℃(77℃F)Temp. Coefficient -30mV/℃
Floating Use No limit on Initial Charging Current Voltage
13.5V~13.8V@25℃(77℃F)Temp. Coefficient -20mV/℃
Capacity affected by
Temperature
40℃ 103%
25℃ 100%
0℃ 86%
-15℃ 65%
Self-discharge 3 month Remaining capacity: 91%
6 month Remaining capacity:82%
12 month Remaining capacity:65%
Packaging Information
Product Weight 17.2 lbs [7.8kg]
Warranty Information
Warranty 6 Months
Compatibility Information
Model Number Tripp-Lite Office UPS BC100FC
Tripp-Lite Office UPS BC750
Tripp-Lite Office UPS BC900 LAN
Tripp-Lite Office UPS BC900
Tripp-Lite Office UPS BC228B
Tripp-Lite Omni UPS OMNI 450 LAN
Tripp-Lite Omni UPS OMNI PRO 900
SKU Weight
BT-12V-26A 17.2 lb
