Description

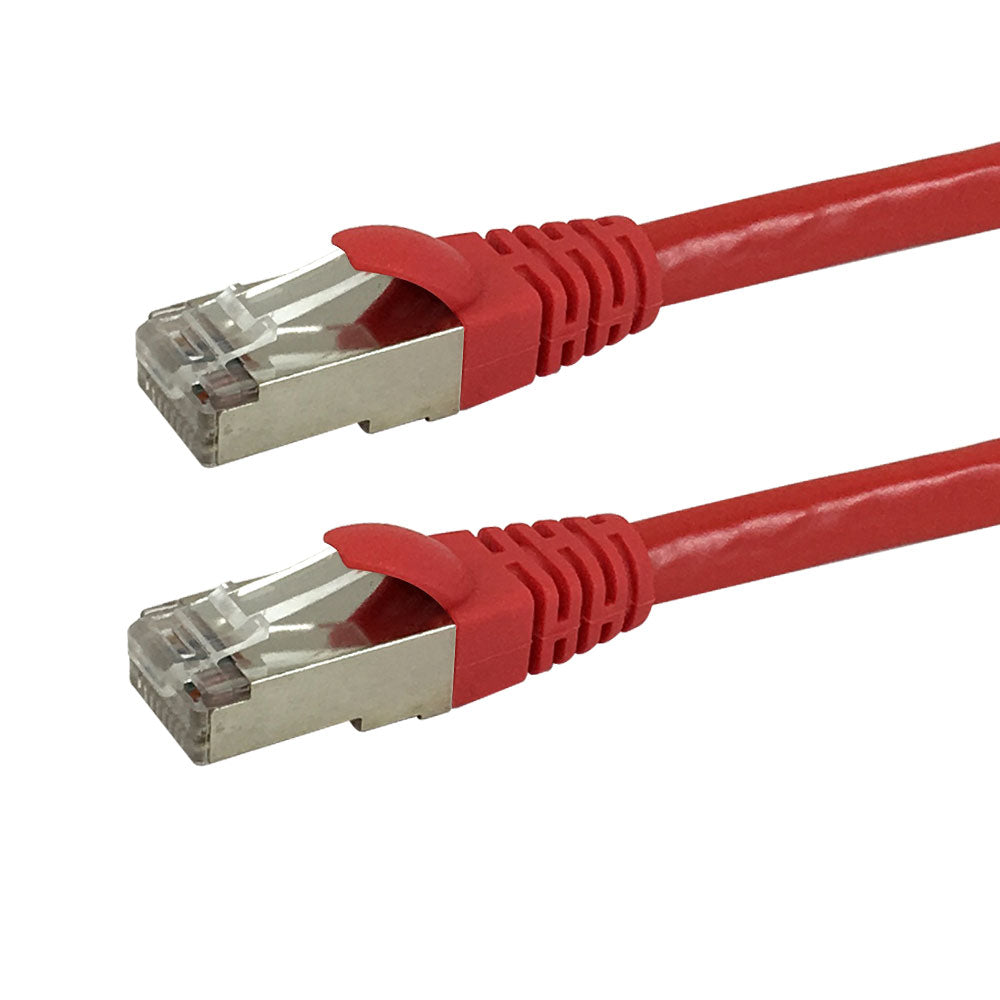

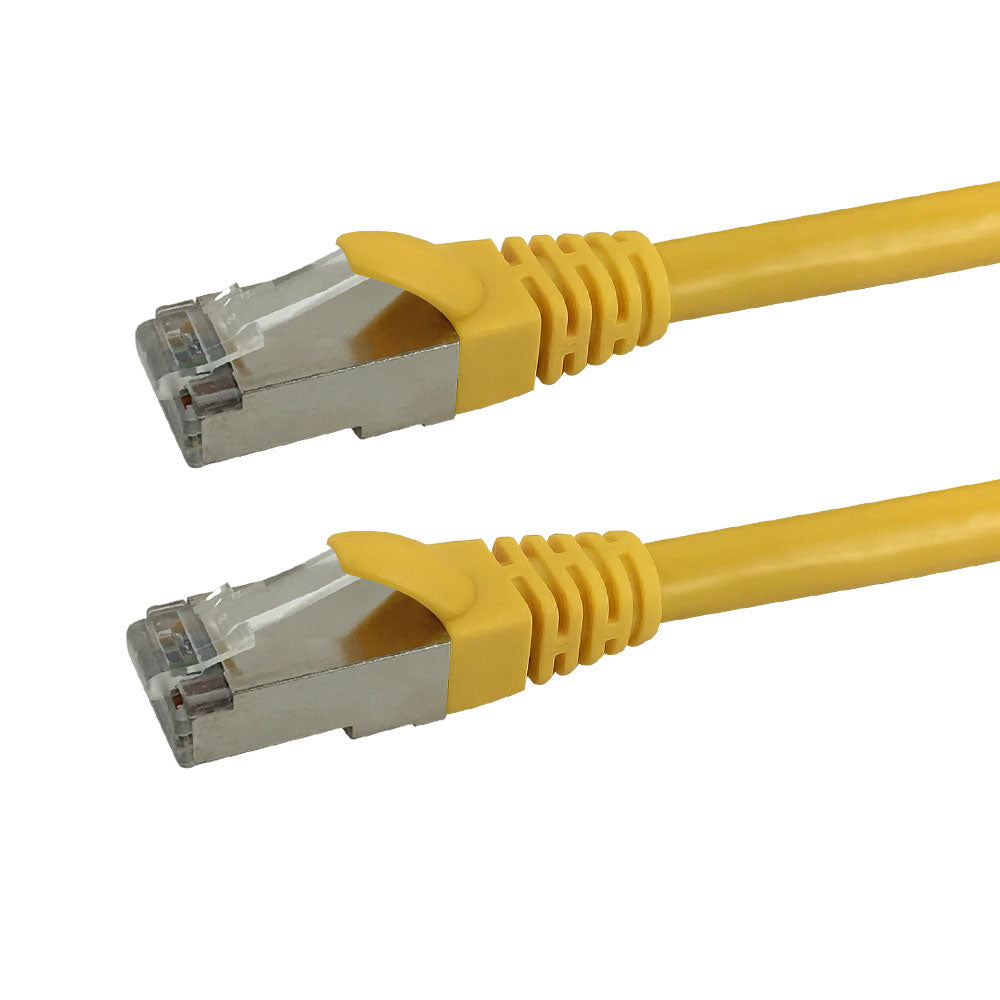

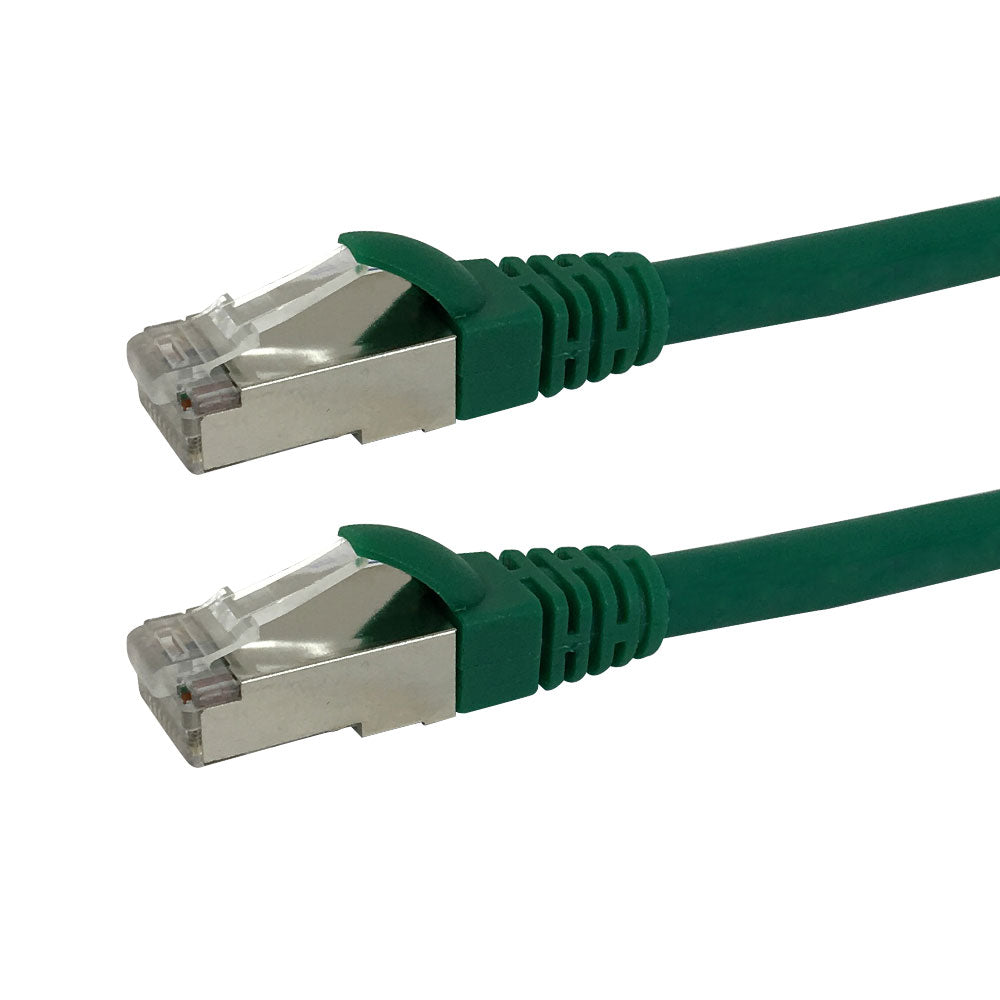

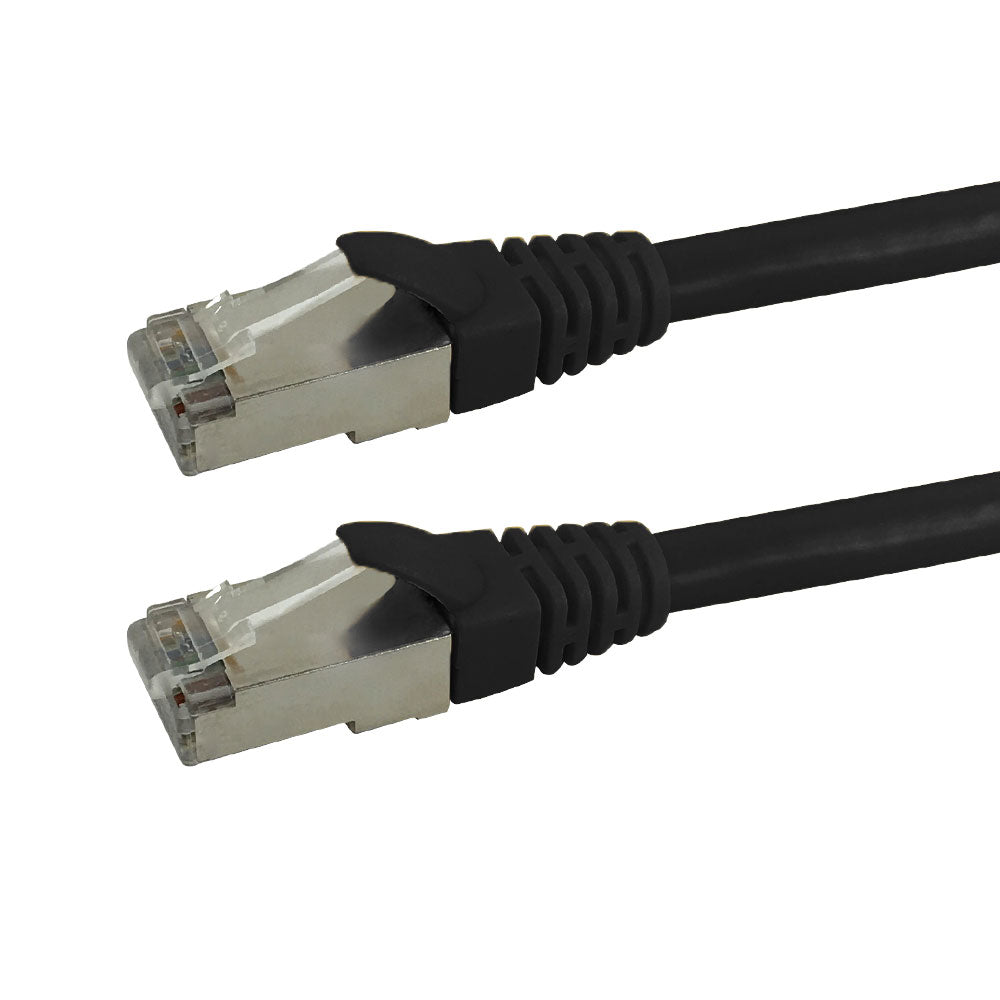

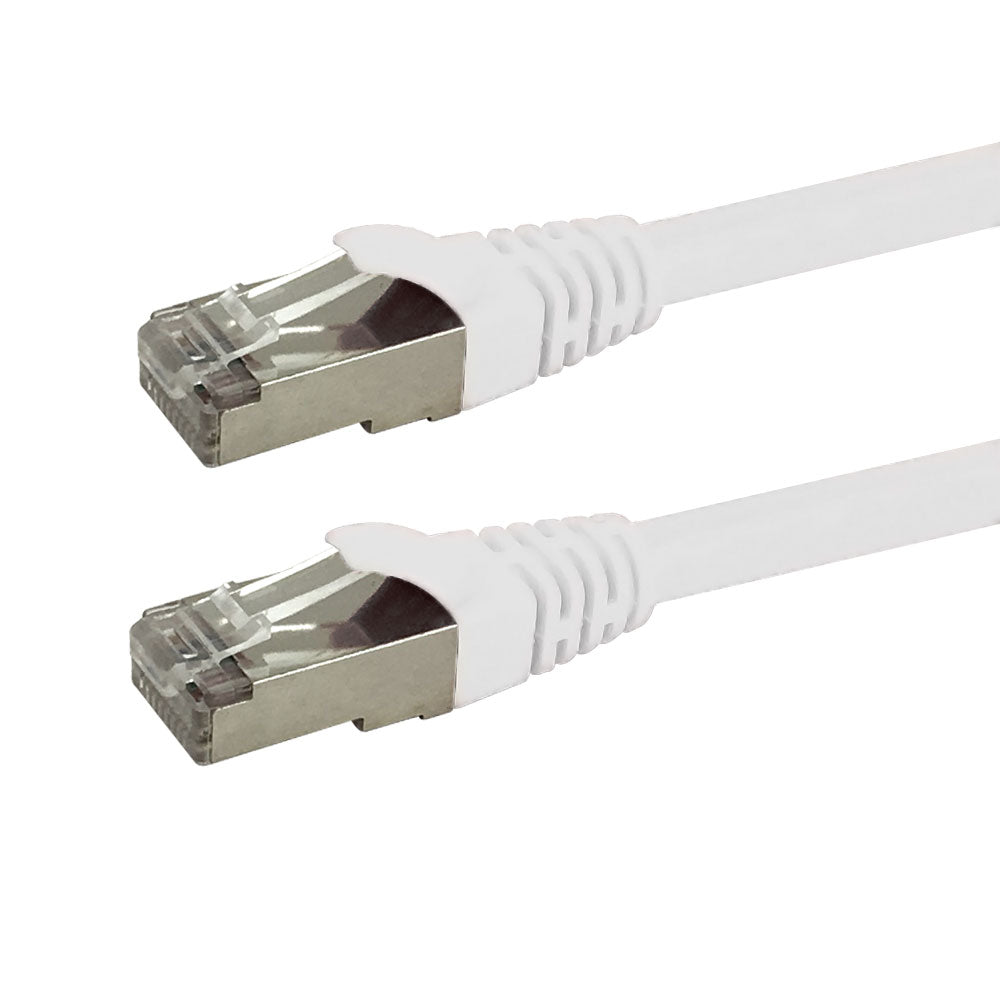

This custom Cat6 ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers.
TERMS: non-cancelable & non-returnable
| Physical Characteristics | |
|---|---|
| Colors Available | Black/Green/Red/White |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6.2mm |
| Wire Gauge | 24AWG Solid |
| Shielding | F/UTP (100% Overall Mylar Foil Shielded Pairs) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Color Code | 568B |
| Temperature Rating | 75 Deg C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Frequency | 550 MHz |
| Approvals | |
| c(UL)us | Compliant - Cable |
| ETL Verified | Compliant |
| ANSI/TIA - 568 - C.2 | Compliant |
| ISO/IEC 11801 | Compliant |
| EN 50173-1 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| CAT6S-0.8BK | 8 inch / Black | 0.05 lb |
| CAT6S-0.8GN | 8 inch / Green | 0.05 lb |
| CAT6S-0.8RD | 8 inch / Red | 0.05 lb |
| CAT6S-0.8WH | 8 inch / White | 0.05 lb |
| CAT6S-01BK | 1ft / Black | 0.07 lb |
| CAT6S-01GN | 1ft / Green | 0.07 lb |
| CAT6S-01RD | 1ft / Red | 0.07 lb |
| CAT6S-01WH | 1ft / White | 0.07 lb |
| CAT6S-02BK | 2ft / Black | 0.1 lb |
| CAT6S-02GN | 2ft / Green | 0.1 lb |
| CAT6S-02RD | 2ft / Red | 0.1 lb |
| CAT6S-02WH | 2ft / White | 0.1 lb |
| CAT6S-03BK | 3ft / Black | 0.15 lb |
| CAT6S-03GN | 3ft / Green | 0.15 lb |
| CAT6S-03RD | 3ft / Red | 0.15 lb |
| CAT6S-03WH | 3ft / White | 0.15 lb |
| CAT6S-04BK | 4ft / Black | 0.17 lb |
| CAT6S-04GN | 4ft / Green | 0.17 lb |
| CAT6S-04RD | 4ft / Red | 0.17 lb |
| CAT6S-04WH | 4ft / White | 0.17 lb |
| CAT6S-05BK | 5ft / Black | 0.2 lb |
| CAT6S-05GN | 5ft / Green | 0.2 lb |
| CAT6S-05RD | 5ft / Red | 0.2 lb |
| CAT6S-05WH | 5ft / White | 0.2 lb |
| CAT6S-06BK | 6ft / Black | 0.21 lb |
| CAT6S-06GN | 6ft / Green | 0.21 lb |
| CAT6S-06RD | 6ft / Red | 0.21 lb |
| CAT6S-06WH | 6ft / White | 0.21 lb |
| CAT6S-07BK | 7ft / Black | 0.24 lb |
| CAT6S-07GN | 7ft / Green | 0.24 lb |
| CAT6S-07RD | 7ft / Red | 0.24 lb |
| CAT6S-07WH | 7ft / White | 0.24 lb |
| CAT6S-08BK | 8ft / Black | 0.26 lb |
| CAT6S-08GN | 8ft / Green | 0.26 lb |
| CAT6S-08RD | 8ft / Red | 0.26 lb |
| CAT6S-08WH | 8ft / White | 0.26 lb |
| CAT6S-09BK | 9ft / Black | 0.24 lb |
| CAT6S-09GN | 9ft / Green | 0.24 lb |
| CAT6S-09RD | 9ft / Red | 0.24 lb |
| CAT6S-09WH | 9ft / White | 0.24 lb |
| CAT6S-10BK | 10ft / Black | 0.33 lb |
| CAT6S-10GN | 10ft / Green | 0.33 lb |
| CAT6S-10RD | 10ft / Red | 0.33 lb |
| CAT6S-10WH | 10ft / White | 0.33 lb |
| CAT6S-11BK | 11ft / Black | 0.32 lb |
| CAT6S-11GN | 11ft / Green | 0.32 lb |
| CAT6S-11RD | 11ft / Red | 0.32 lb |
| CAT6S-11WH | 11ft / White | 0.32 lb |
| CAT6S-12BK | 12ft / Black | 0.38 lb |
| CAT6S-12GN | 12ft / Green | 0.38 lb |
| CAT6S-12RD | 12ft / Red | 0.38 lb |
| CAT6S-12WH | 12ft / White | 0.38 lb |
| CAT6S-13BK | 13ft / Black | 0.44 lb |
| CAT6S-13GN | 13ft / Green | 0.44 lb |
| CAT6S-13RD | 13ft / Red | 0.44 lb |
| CAT6S-13WH | 13ft / White | 0.44 lb |
| CAT6S-14BK | 14ft / Black | 0.46 lb |
| CAT6S-14GN | 14ft / Green | 0.46 lb |
| CAT6S-14RD | 14ft / Red | 0.46 lb |
| CAT6S-14WH | 14ft / White | 0.46 lb |
| CAT6S-15BK | 15ft / Black | 0.5 lb |
| CAT6S-15GN | 15ft / Green | 0.5 lb |
| CAT6S-15RD | 15ft / Red | 0.5 lb |
| CAT6S-15WH | 15ft / White | 0.5 lb |
| CAT6S-16BK | 16ft / Black | 0.57 lb |
| CAT6S-16GN | 16ft / Green | 0.57 lb |
| CAT6S-16RD | 16ft / Red | 0.57 lb |
| CAT6S-16WH | 16ft / White | 0.57 lb |
| CAT6S-17BK | 17ft / Black | 0.64 lb |
| CAT6S-17GN | 17ft / Green | 0.64 lb |
| CAT6S-17RD | 17ft / Red | 0.64 lb |
| CAT6S-17WH | 17ft / White | 0.64 lb |
| CAT6S-18BK | 18ft / Black | 0.71 lb |
| CAT6S-18GN | 18ft / Green | 0.71 lb |
| CAT6S-18RD | 18ft / Red | 0.71 lb |
| CAT6S-18WH | 18ft / White | 0.71 lb |
| CAT6S-19BK | 19ft / Black | 0.78 lb |
| CAT6S-19GN | 19ft / Green | 0.78 lb |
| CAT6S-19RD | 19ft / Red | 0.78 lb |
| CAT6S-19WH | 19ft / White | 0.78 lb |
| CAT6S-20BK | 20ft / Black | 0.63 lb |
| CAT6S-20GN | 20ft / Green | 0.63 lb |
| CAT6S-20RD | 20ft / Red | 0.63 lb |
| CAT6S-20WH | 20ft / White | 0.63 lb |
| CAT6S-21BK | 21ft / Black | 0.7 lb |
| CAT6S-21GN | 21ft / Green | 0.7 lb |
| CAT6S-21RD | 21ft / Red | 0.7 lb |
| CAT6S-21WH | 21ft / White | 0.7 lb |
| CAT6S-22BK | 22ft / Black | 0.71 lb |
| CAT6S-22GN | 22ft / Green | 0.71 lb |
| CAT6S-22RD | 22ft / Red | 0.71 lb |
| CAT6S-22WH | 22ft / White | 0.71 lb |
| CAT6S-23BK | 23ft / Black | 0.72 lb |
| CAT6S-23GN | 23ft / Green | 0.72 lb |
| CAT6S-23RD | 23ft / Red | 0.72 lb |
| CAT6S-23WH | 23ft / White | 0.72 lb |
| CAT6S-24BK | 24ft / Black | 0.74 lb |
| CAT6S-24GN | 24ft / Green | 0.74 lb |
| CAT6S-24RD | 24ft / Red | 0.74 lb |
| CAT6S-24WH | 24ft / White | 0.74 lb |
| CAT6S-25BK | 25ft / Black | 0.77 lb |
| CAT6S-25GN | 25ft / Green | 0.77 lb |
| CAT6S-25RD | 25ft / Red | 0.77 lb |
| CAT6S-25WH | 25ft / White | 0.77 lb |
| CAT6S-30BK | 30ft / Black | 0.95 lb |
| CAT6S-30GN | 30ft / Green | 0.95 lb |
| CAT6S-30RD | 30ft / Red | 0.95 lb |
| CAT6S-30WH | 30ft / White | 0.95 lb |
| CAT6S-35BK | 35ft / Black | 1.1 lb |
| CAT6S-35GN | 35ft / Green | 1.1 lb |
| CAT6S-35RD | 35ft / Red | 1.1 lb |
| CAT6S-35WH | 35ft / White | 1.1 lb |
| CAT6S-40BK | 40ft / Black | 1.33 lb |
| CAT6S-40GN | 40ft / Green | 1.33 lb |
| CAT6S-40RD | 40ft / Red | 1.33 lb |
| CAT6S-40WH | 40ft / White | 1.33 lb |
| CAT6S-45BK | 45ft / Black | 1.4 lb |
| CAT6S-45GN | 45ft / Green | 1.4 lb |
| CAT6S-45RD | 45ft / Red | 1.4 lb |
| CAT6S-45WH | 45ft / White | 1.4 lb |
| CAT6S-50BK | 50ft / Black | 1.55 lb |
| CAT6S-50GN | 50ft / Green | 1.55 lb |
| CAT6S-50RD | 50ft / Red | 1.55 lb |
| CAT6S-50WH | 50ft / White | 1.55 lb |
| CAT6S-75BK | 75ft / Black | 2.26 lb |
| CAT6S-75GN | 75ft / Green | 2.26 lb |
| CAT6S-75RD | 75ft / Red | 2.26 lb |
| CAT6S-75WH | 75ft / White | 2.26 lb |
| CAT6S-100BK | 100ft / Black | 3.0 lb |
| CAT6S-100GN | 100ft / Green | 3.0 lb |
| CAT6S-100RD | 100ft / Red | 3.0 lb |
| CAT6S-100WH | 100ft / White | 3.0 lb |
| CAT6S-125BK | 125ft / Black | 5.0 lb |
| CAT6S-125GN | 125ft / Green | 5.0 lb |
| CAT6S-125RD | 125ft / Red | 5.0 lb |
| CAT6S-125WH | 125ft / White | 5.0 lb |
| CAT6S-150BK | 150ft / Black | 6.2 lb |
| CAT6S-150GN | 150ft / Green | 6.2 lb |
| CAT6S-150RD | 150ft / Red | 6.2 lb |
| CAT6S-150WH | 150ft / White | 6.2 lb |
| CAT6S-01YL | 1ft / Yellow | 0.07 lb |
| CAT6S-02BL | 2ft / Blue | 0.1 lb |
| CAT6S-02GY | 2ft / Grey | 0.1 lb |
| CAT6S-02YL | 2ft / Yellow | 0.1 lb |
| CAT6S-03GY | 3ft / Grey | 0.15 lb |
| CAT6S-04BL | 4ft / Blue | 0.17 lb |
