Description
Overview

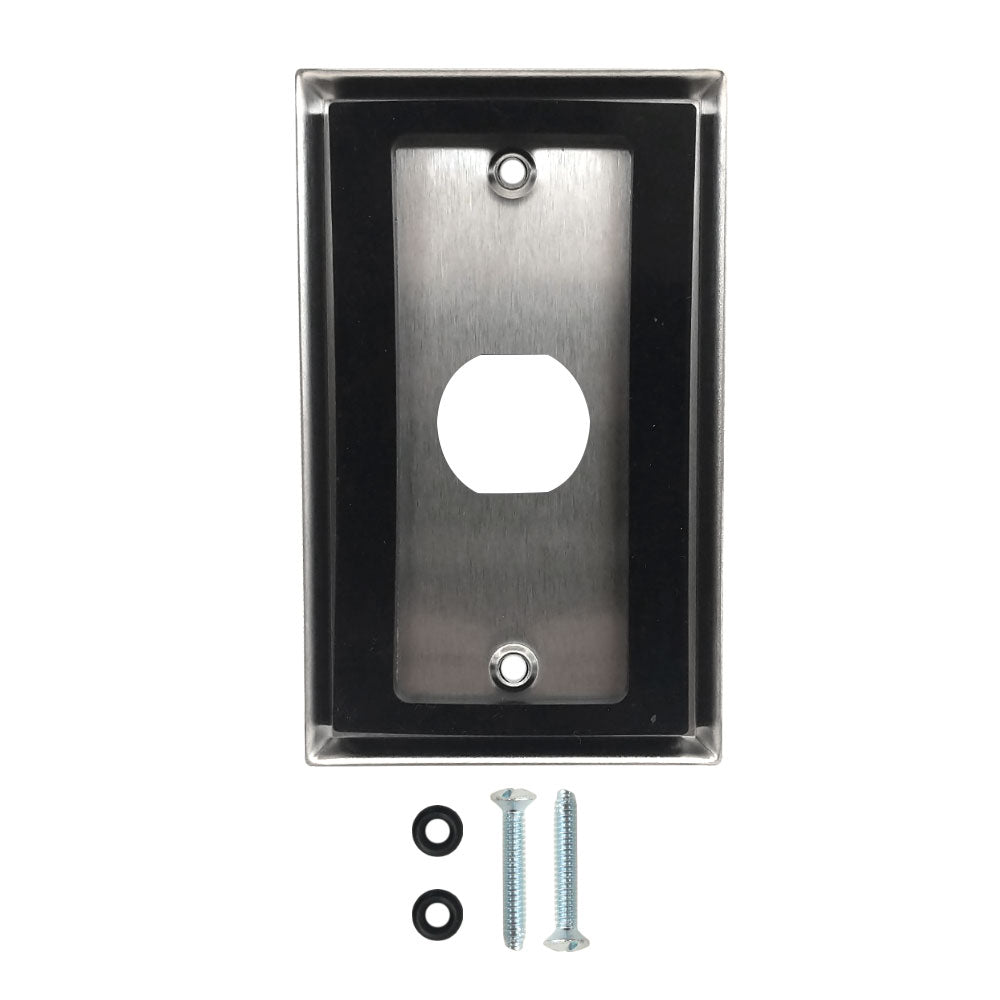

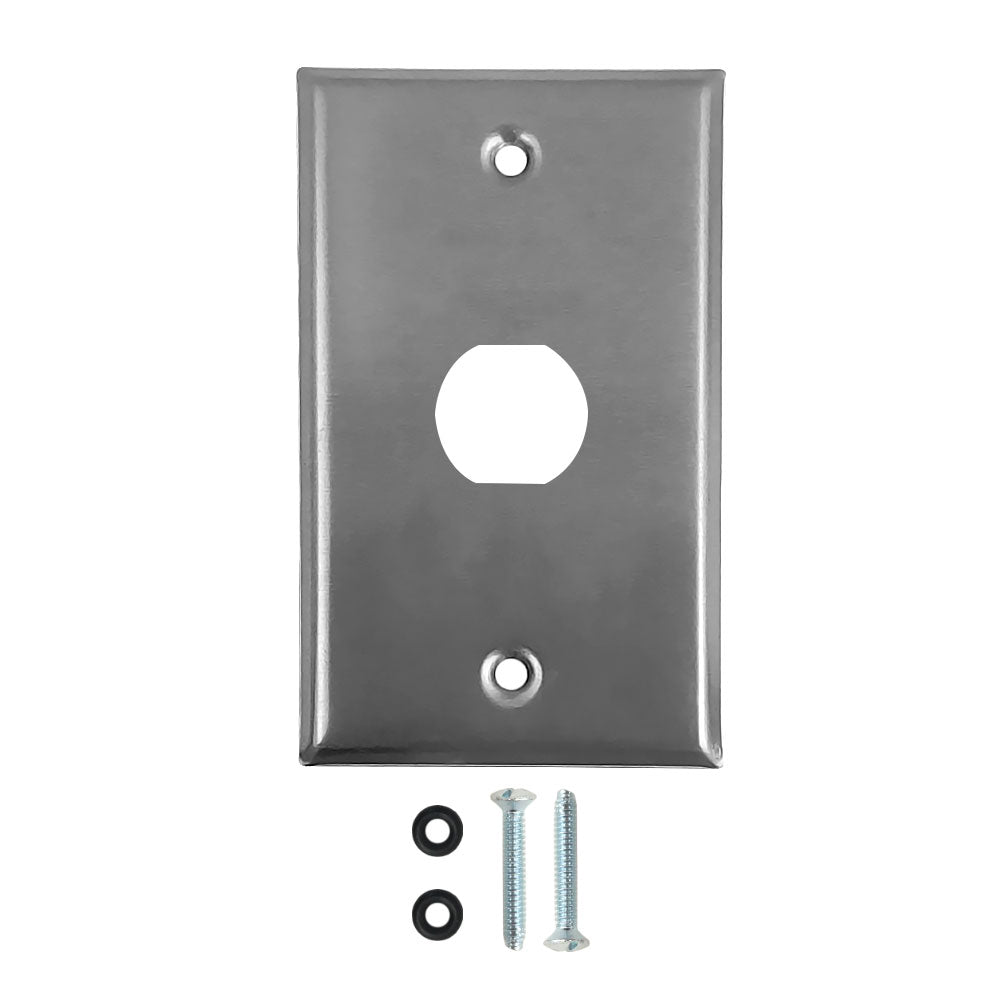

This single gang wall plate has one Ethernet bulkhead cut-out. It is a standard North American wall plate which accepts bulkhead jacks and couplers. It is IP44 rated to protect network parts from material greater than 1mm in diameter and water damage.
|
IP44 CompliantThis wall plate is IP44 rated and resists water and large debris. Comes with gaskets for the screw holes and plate. Use as Part of a Complete KitThis wall
plate can be used as part of a complete kit to create an end-to-end IP rated
channel.
|
Specifications
| Physical Characteristics | ||
|---|---|---|
| Color | Stainless Steel | |
| Plate Size | Single Gang | |
| Material | Stainless Steel | |
| Back Gasket | Rubber | |
| Dimensions | 115x70.6x6.65 mm (4.52x2.77x0.26 inch) | |
| Operating Temperature | -10°C to 60°C | |
| Storage Temperature | -40°C to 68°C | |
| Humidity | 10% ~ 90% RH | |
| Cut-outs | ||
| Ethernet Bulkhead Hole | 1 | |
| Compatible Items | ||
| CN-C5E-FFS-IP68 | Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| CN-C6-FFS-IP68 | Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| CN-C6A-FFS-IP68 | Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler -Waterproof IP68 Rated - Black | |
| JK-C5P-SBK-IP68 | Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| JK-C6P-SBK-IP68 | Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black | |
| Environmental | ||
| IP Rating | IP44 Rated when used in conjunction with waterproof coupler | |
| RoHS | Yes | |
| Packaging Information | ||
| Product Weight | 0.15 lbs [0.07 kg] | |
| Included in Package |
1 - Wall Plate |
|
Product Weights
| SKU | Weight | |
| WP-EBH1-SS | 0.15 lb |
