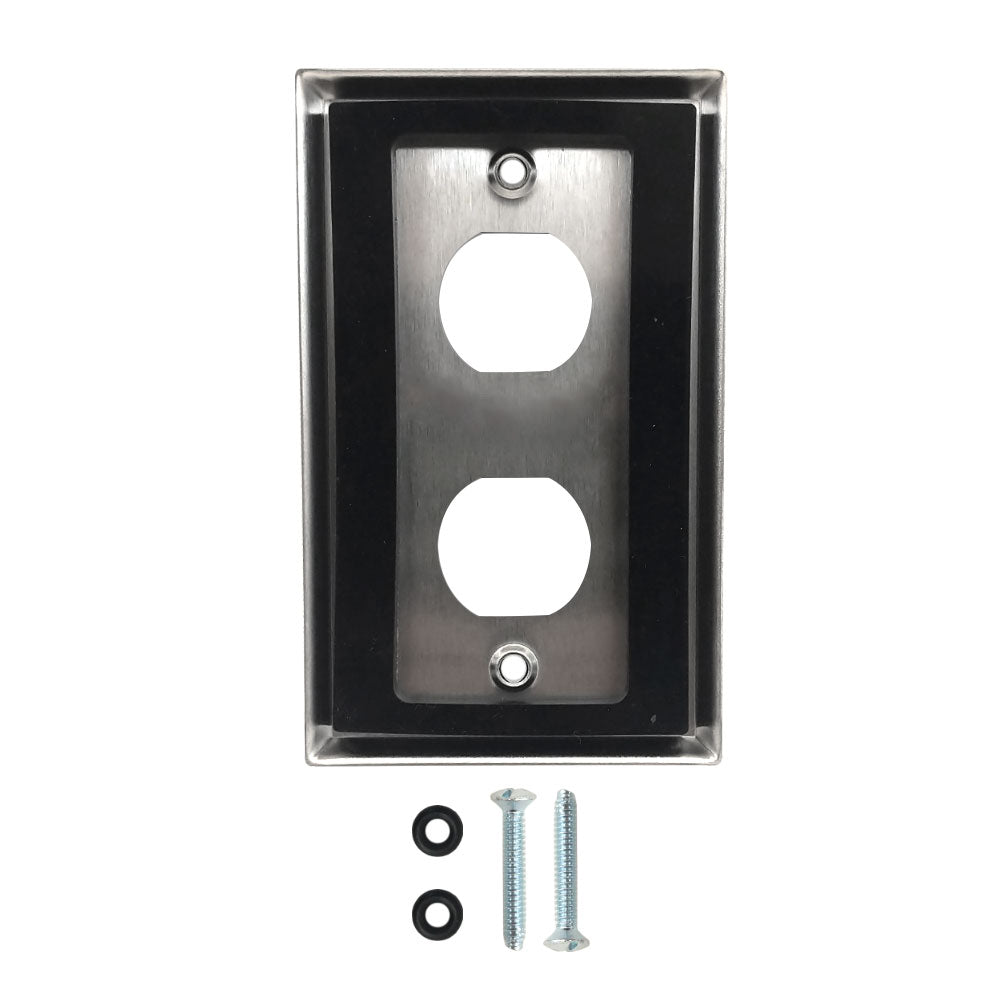

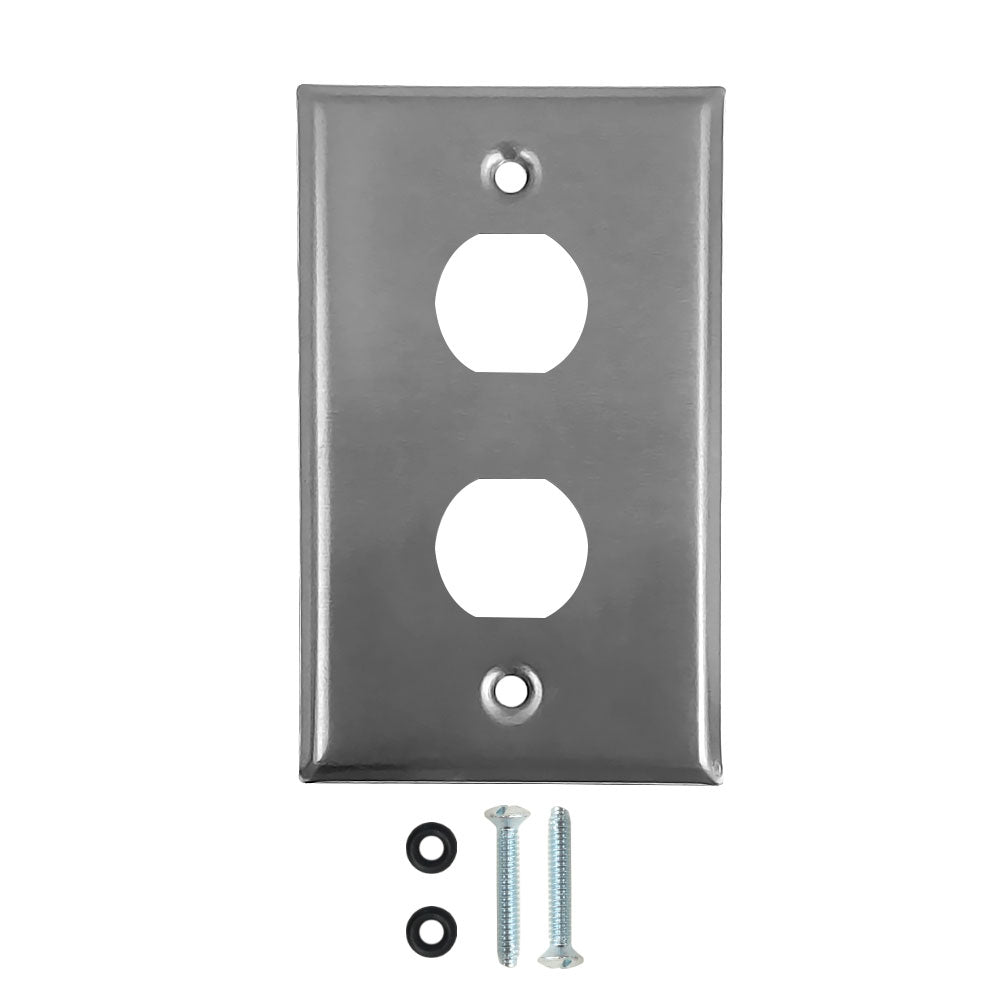

Single Gang Wall Plate - 2x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel


Price:
Sale price$6.63 USD
Stock:
In stock

Description

Overview

This single gang wall plate has two Ethernet bulkhead cut-outs. It is a standard North American wall plate which accepts bulkhead jacks and couplers. It is IP44 rated to protect network parts from material greater than 1mm in diameter and water damage.

IP44 Compliant

This wall plate is IP44 rated and resists water and large debris. Comes with gaskets for the screw holes and plate.


Use as Part of a Complete Kit

This wall plate can be used as part of a complete kit to create an end-to-end IP rated channel.

Specifications

Physical Characteristics
Color Stainless Steel
Plate Size Single Gang
Material Stainless Steel
Back Gasket Rubber
Dimensions 115x70.6x6.65 mm (4.52x2.77x0.26 inch)
Operating Temperature -10°C to 60°C
Storage Temperature -40°C to 68°C
Humidity 10% ~ 90% RH
Cut-outs
Ethernet Bulkhead Hole 2
Compatible Items
CN-C5E-FFS-IP68 Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
CN-C6-FFS-IP68 Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
CN-C6A-FFS-IP68 Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
JK-C5P-SBK-IP68 Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
JK-C6P-SBK-IP68 Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
Environmental
IP Rating IP44 Rated when used in conjunction with waterproof coupler
RoHS Yes
Packaging Information
Product Weight 0.15 lbs [0.07 kg]
Included in Package

1 - Wall Plate
1 - Pair of Screws
1 - Pair of washers

SKU Weight
WP-EBH2-SS 0.15 lb
