Description

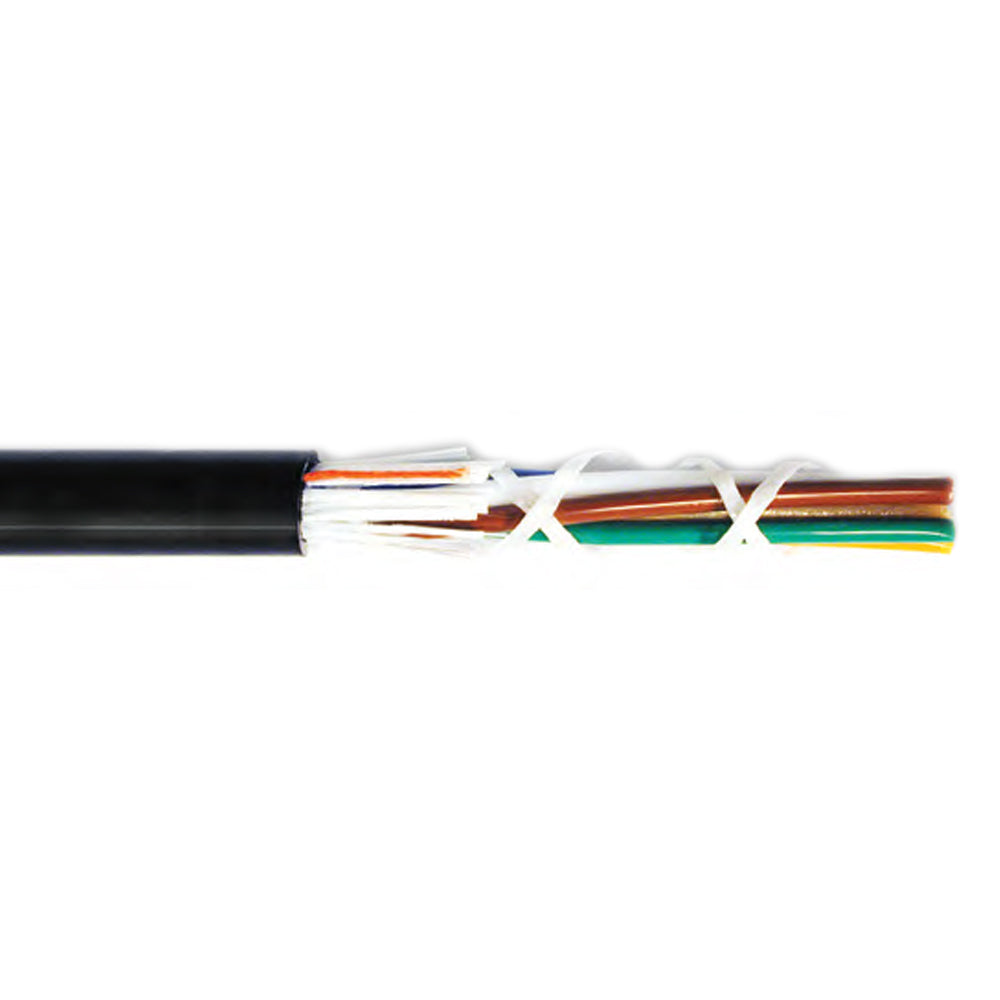

This bulk 12-strand loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, speeds fiber access/cleanup and dielectric design eliminates grounding issues.

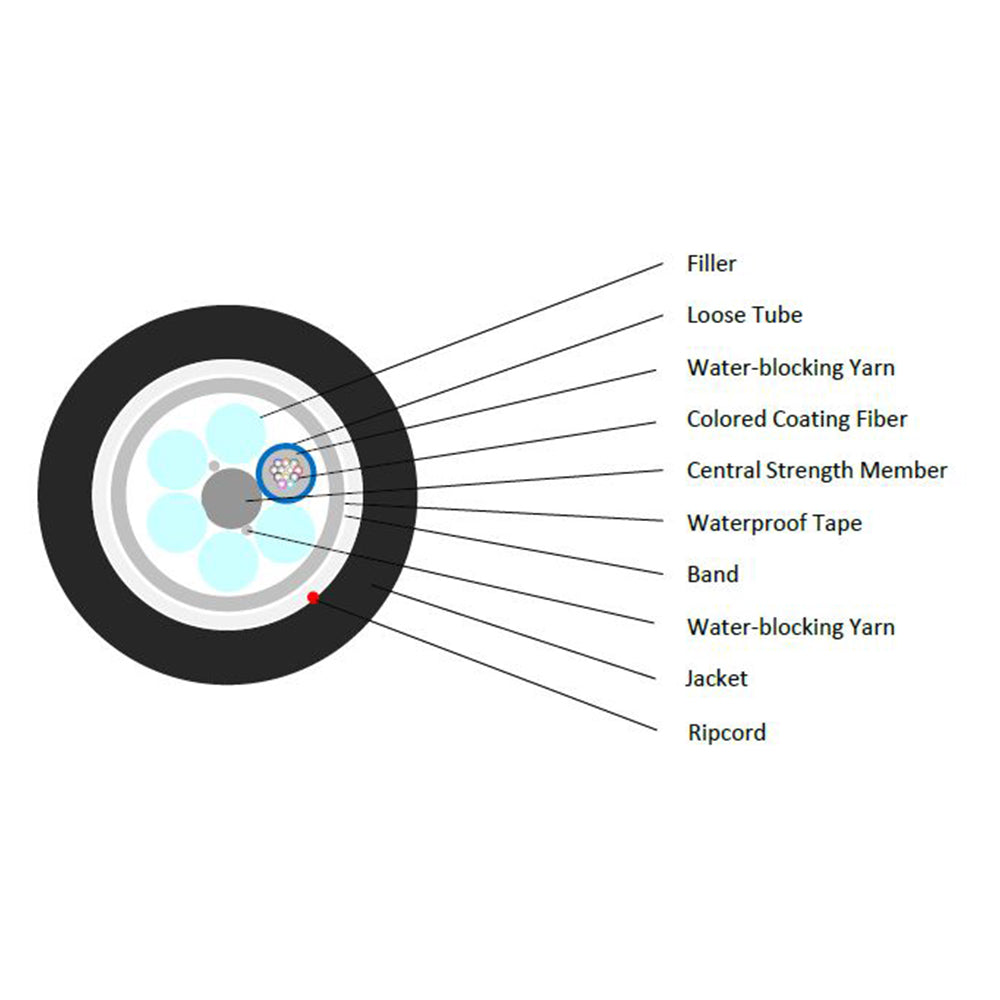

| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OSP Loose Tube Singlemode Outdoor Duct/Lashed Aerial Cable |
| Color Coating Fiber | Dimension: 250µm±15µm Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua |
| Jacket | Material: PE Outer Jacket Dimension: 10.2mm±0.5mm |
| Loose Tube | Dimension: 2.0mm±0.1mm Material: PBT Color: Blue |
| Filler | Dimension: 2.0mm±0.1mm Material: PP Color: Natural |
| Central Strength Member | Diameter: 2.0mm Material: FRP |
| Strength Member Material | Glass Yarn |
| Fiber Count | 12-Strand |
| Tension(Long Term) | 890 N |
| Tension(Short Term) | 2700 N |
| Crush (Long Term) | 300 N/10cm |
| Crush (Short Term) | 1000 N/10cm |
| Min Bending Radius(Dynamic) | 20D mm |
| Min Bending Radius(Static) | 10D mm |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Installation Temperature | -30℃ ~ +70℃ |
| Packaging Information | |
| Product Weight | 0.8 lbs |
