Overview
This hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
- ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads that record video from 64 HD cameras.
- SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options. Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
- Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.
- RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
- ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage. 1M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
- Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability.
Specifications
|
Physical Characteristics
|
| Interface |
SATA 6Gb/s |
| Recording Technology |
CMR |
| Drive Design |
Air |
| Operating Temperature |
0 – 65°C |
| Non-Operating Temperature |
-40°C |
|
Power
|
| Startup Current |
12V 1.8A |
| Average Operating Power |
3.7W |
| Idle Average |
2.5W |
| Standby Mode/Sleep Mode |
0.25W/0.25W |
| Voltage Tolerance (5V) |
±5% |
| Voltage Tolerance (12V) |
±10% |
|
Performance
|
Formatted Capacity
(Part Number) |

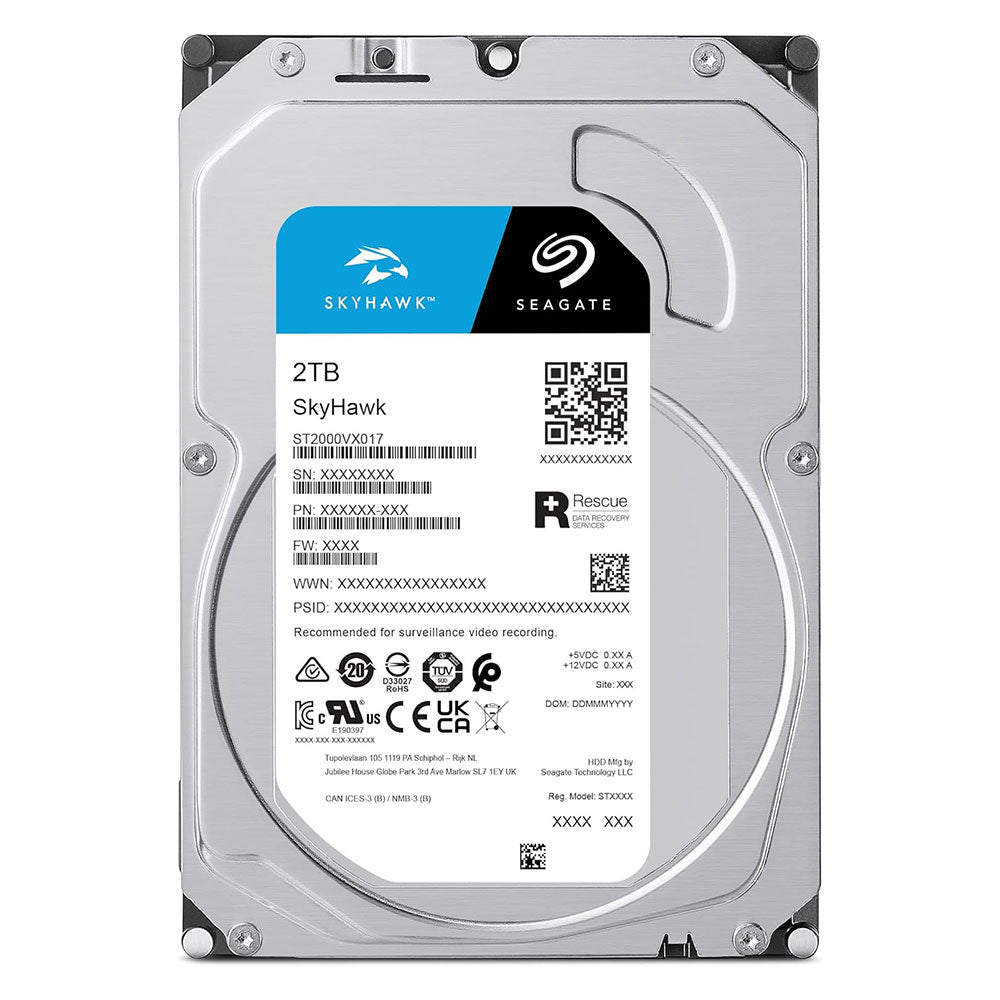

2TB
(ST2000VX017) |
4TB
(ST4000VX016) |

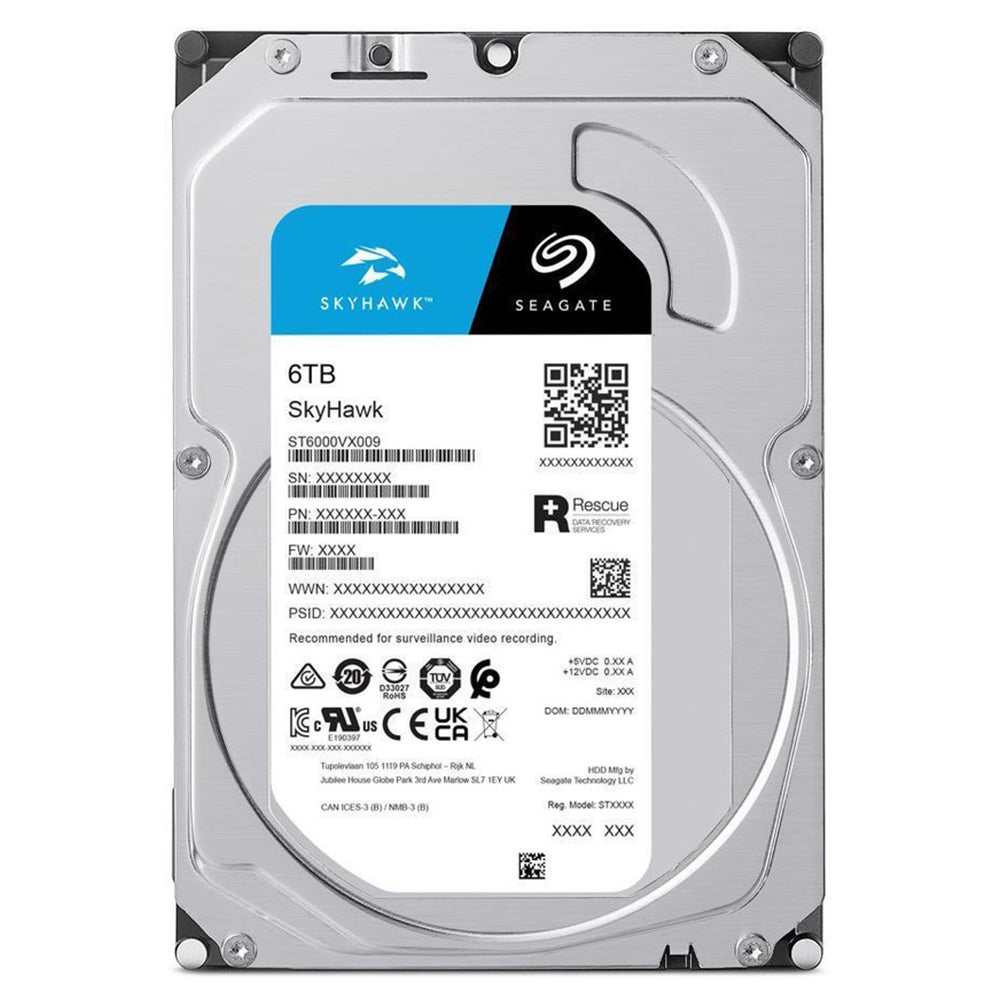

6TB
(ST6000VX009) |
|
| Drive Bays Supported |
Up to 8 |
Up to 16 |
Up to 16 |
|
| Cameras Supported |
Up to 64 |
Up to 64 |
Up to 64 |
|
| RV Sensors |
N/A |
Yes |
Yes |
|
| Max Sustained Transfer Rate OD |
180MB/s
|
180MB/s
|
180MB/s |
|
| Cache (MB) |
256 |
256 |
256 |
|
| Tarnish Resistant |
Yes |
Yes |
Yes |
|
| Load/Unload Cycles |
600,000 |
600,000 |
600,000 |
|
| Nonrecoverable Read Errors Rate, Max |
1 per 10E14 |
1 per 10E14 |
1 per 10E14 |
|
| Power-On Hours per year |
8760 |
8760 |
8760 |
|
| Workload Rate Limit (WRL) |
180 |
180 |
180 |
|
| Mean Time Between Failures (MTBF) |
1,000,000hr |
1,000,000hr |
1,000,000hr |
|
|
Approvals
|
| c(UL)us |
Compliant |
| UKCA |
Compliant |
| TUV |
Compliant |
|
Environmental
|
| CE |
Compliant |
| ICES |
Compliant |
| RoHS |
Compliant |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
1.38 lbs |
