Description

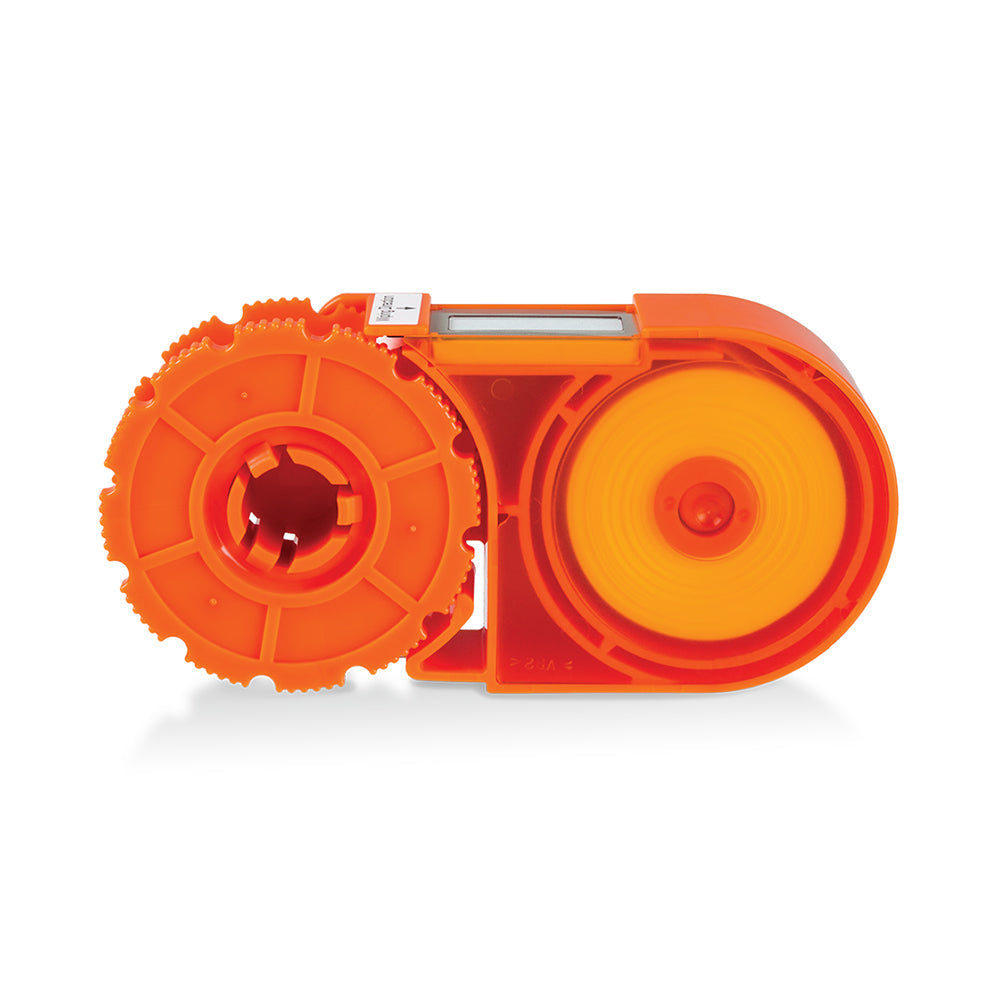

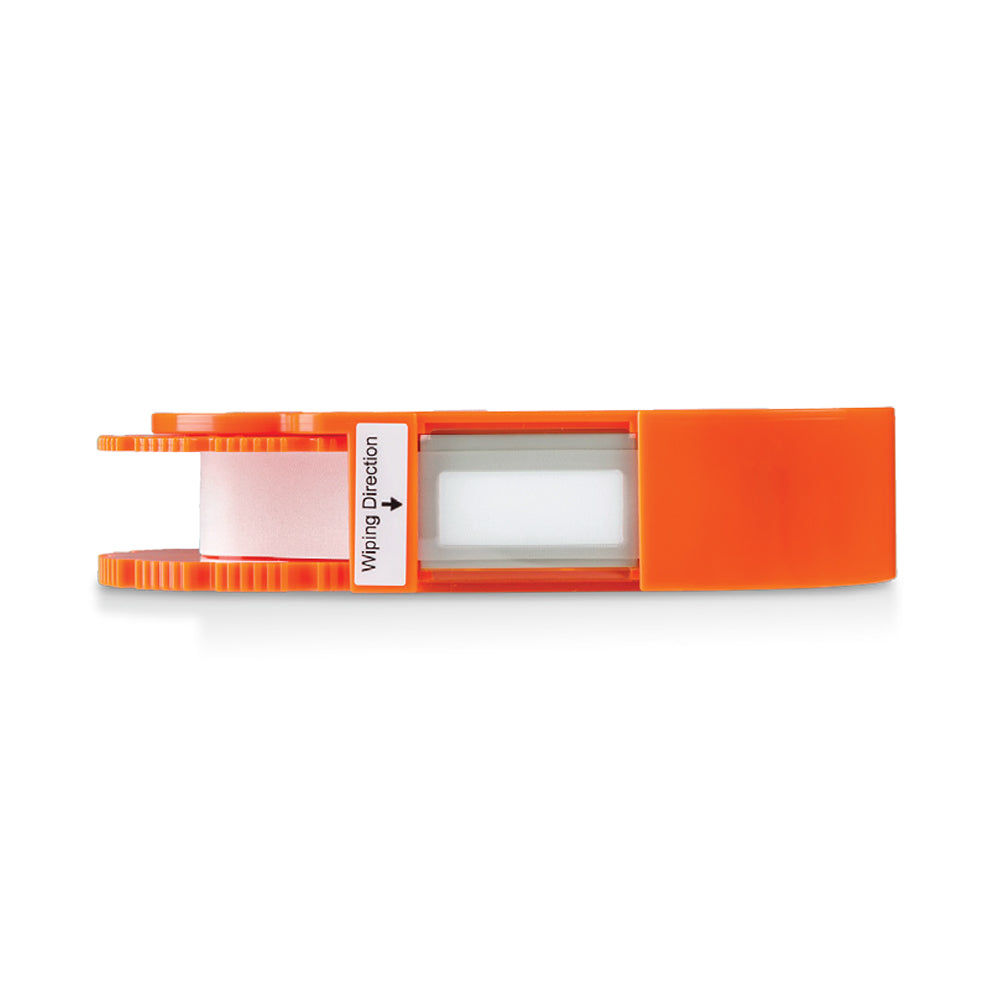

This Sticklers® fiber optic cassette CleanClicker™ cleans SC and LC duplex, ST, FC, E2000 and female (no guide pins) MPO cable assemblies. It removes contaminants without scratching end faces. Typical cleaning applications include carrier networks, enterprise networks, cable assembly production, R & D and test labs, and network installation kits.
| Physical Characteristics | |
|---|---|
| Cleans per Unit | 40+ Cleanings (approximately 12.5m or 40ft) |
| Package Dimensions | 4.5" L x 0.98" W x 2.17" H 115mm L x 25mm W x 55mm H |
| Case Dimensions | 7.5" L x 5" W x 5" H 190mm L x 127mm W x 127mm H |
| Applicable Connectors | SC, LC, ST, FC, F2000, MPO |
| Case Quantity | 10 Cassettes/Case |
| Typical Applications | Carrier Networks, Enterprise Networks, Cable Assembly Production, R & D and Test Labs, Network Installation Kits |
| Manufacturing Information | |
| MicroCare Part Number |
MCC-CCWRC |
| Approvals | |
| Industry Standards | ANSI/TIA 455-240 2009 (Fiber Optic Connector End-Face Cleaning Evaluation) ANSI/TIA 568.3D-2016 - Section E.3.5 (Connector End-Face Cleaning) ARINC 805-4 (Fiber Optic Test Procedures) ARINC 806-5 (Fiber Optic Installation & Maintenance) AT & T ATT-TOP-76461 (Inspecting & Cleaning End-Faces) Cisco Systems Doc: 51837 (Inspecting & Cleaning Procedures for Fiber Connectors) IBM SY27-2597-15 (Cleaning End-Faces for Maintaining Fiber Links) IEC 61300-3-35 - Section 5.3 (End-Face Cleaning) IEC 61627-1 - Section 9.3 (Procedure Cleaning w/ Reel Type Cleaners) IEC 62627-1 - Section 7.2 (Acceptable Reel Type Cleaners) IPC 8497-1 - Section 7.3.2 (Dry Wipes and Cassette End-Face Cleaning) IPC 8497-1 - Section 10 (Minimizing Electrostatic Charge Effect) NASA-STD 8739.5A - Section 8 (Cleaning Workmanship Standards) SAE AIR6031 (End-Face Cleaning) SAE ARP 6283 - Section 8.4/9.1.1 (Approved Cleaning Equipment/Wet-Dry Cassette Cleaning) Telcordia GR2923 CORE Issue 2 (End-Face Cleaning) Verizon VZ.TRP.9461 - Section 5.0 (End-Face Cleaning) |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.07 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| FO-MCC-CCWRC | 0.15 lb |
