Description

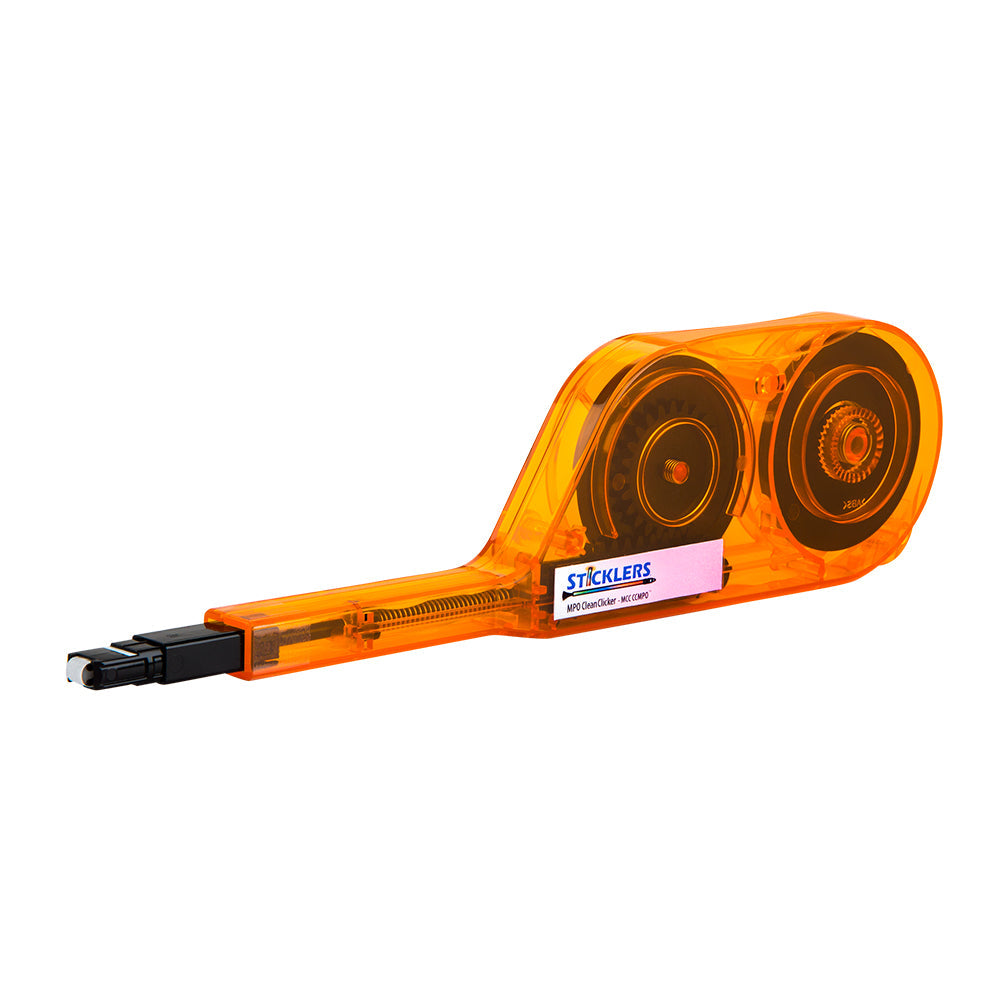

This Sticklers® fiber optic MPO CleanClicker provides thorough cleaning by using a specially designed click to clean push engagement. It is used to clean both MPO/MTP plugs and receptacles by using the port adapter which is built into the cap. The easy view pay off spool is designed for monitoring remaining cleaning capacity. Works with flat and 8℃ slant and is compatible on connectors with or without guide pins.
| Physical Characteristics | |
|---|---|
| Cleans per Unit | 600 Cleanings |
| Material Used per Click | 13mm (0.5") |
| Applicable Connectors | MTP/MPO Connectors and Ports |
| Compatible End Face | Flat and 8℃ Slant (compatible with or without guide pins) |
| Typical Applications | MPO Cassette Modules, MPO Trunk Assemblies, QSFP+ Modules, CFP Modules |
| Removable Contamination List | ISO 12103 aka AZ road dust Skin flakes & oil residue 99% IPA residue T Shirt lint French fry grease residue Hand lotion residue Tap water residue Saw dust Drywall dust Coastal salt fog residue |
| Manufacturing Information | |
| MicroCare Part Number |
MCC-CCMPO |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.07 kg] |
| Consumables | |
| FO-MCC-POC03M | Sticklers® Fiber Optic Splice & Connector Cleaner fluid |
| FO-MCC-XMT | Sticklers®Cleaning stick for MPO/MTP ferrules - 50 per box |
Spec Sheets
Video
Product Weights
| SKU | Weight | |
| FO-MCC-CCMPO | 0.15 lb |
