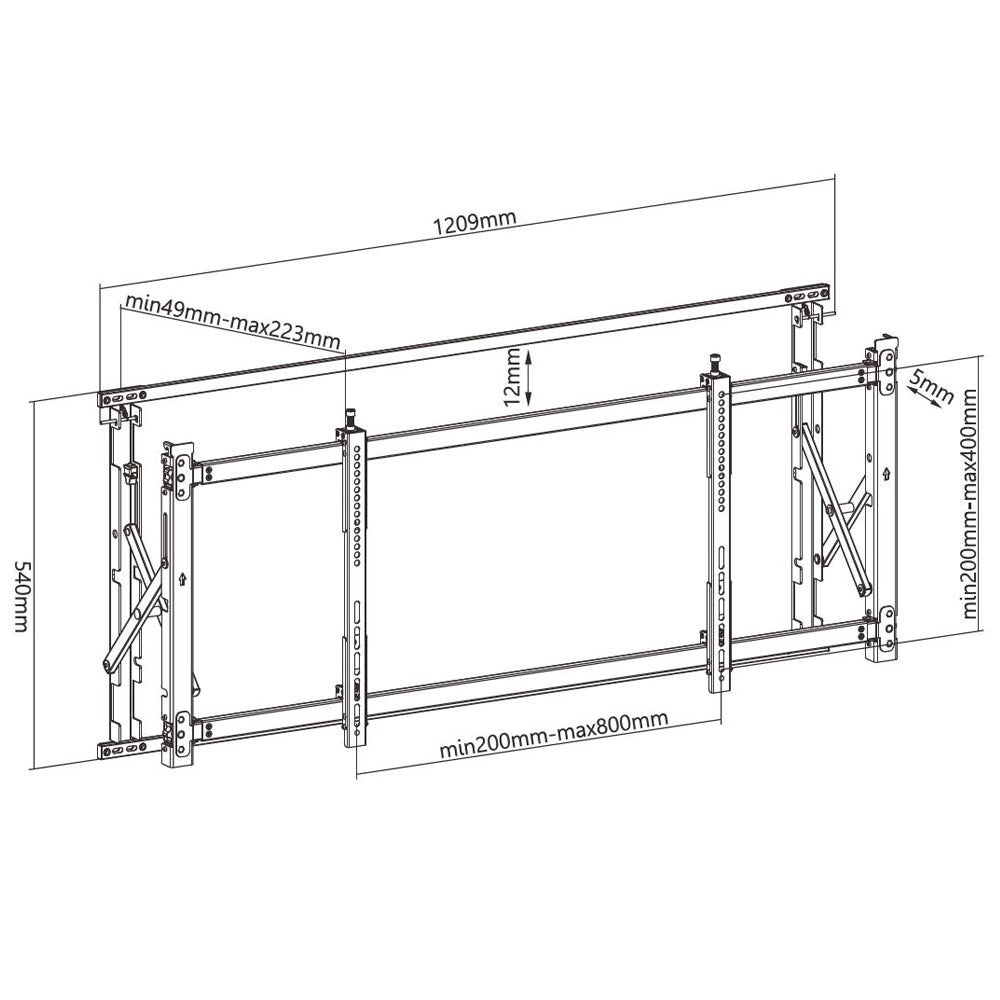

This super slim video wall mount bracket is designed to hold most 55 inch to 60 inch flat screen displays with a maximum VESA hole pattern of 800x600. It allows portrait or landscape screen orientation and can be used on a single TV or in conjunction with additional mounts to create a video wall.
Mountable in any Orientation
This video wall TV mount bracket can be used in either portrait or landscape orientation.
This portrait TV mount bracket provides a low profile and is very slim in design in comparison to other brackets.
Due to the multi-dimensional micro adjustments that can be made to the bracket, it allows for an ideal display alignment for a pleasurable viewing experience.
|Mounting Style||Micro adjustment
|Color||Durable Powder-coated Black Finish|
|Mounting Pattern||VESA 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400, 600x600, 800x400, 800x600|
|Screen Size||55 - 60 inches [140 - 152cm]|
|Weight Capacity||77lbs [35kg]|
|Profile||49 - 223mm|
||Depth 5mm / Height 12mm
|Mounting Hardware||4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Big Spacers
4 - ST6.3x55 Screws
4 - Concrete Anchors
4 - D6 Washers
|Package Weight||28.1 lbs [12.75 kg]|
|Product Weight||22.4 lbs [10.15 kg]|
