SVGA HD15 Male to Female Cable CL2/FT4

VGA CablesSKU: SVGA3-01

Length: 1ft
Price:
Sale price$4.93 USD
Stock:
In stock

Description

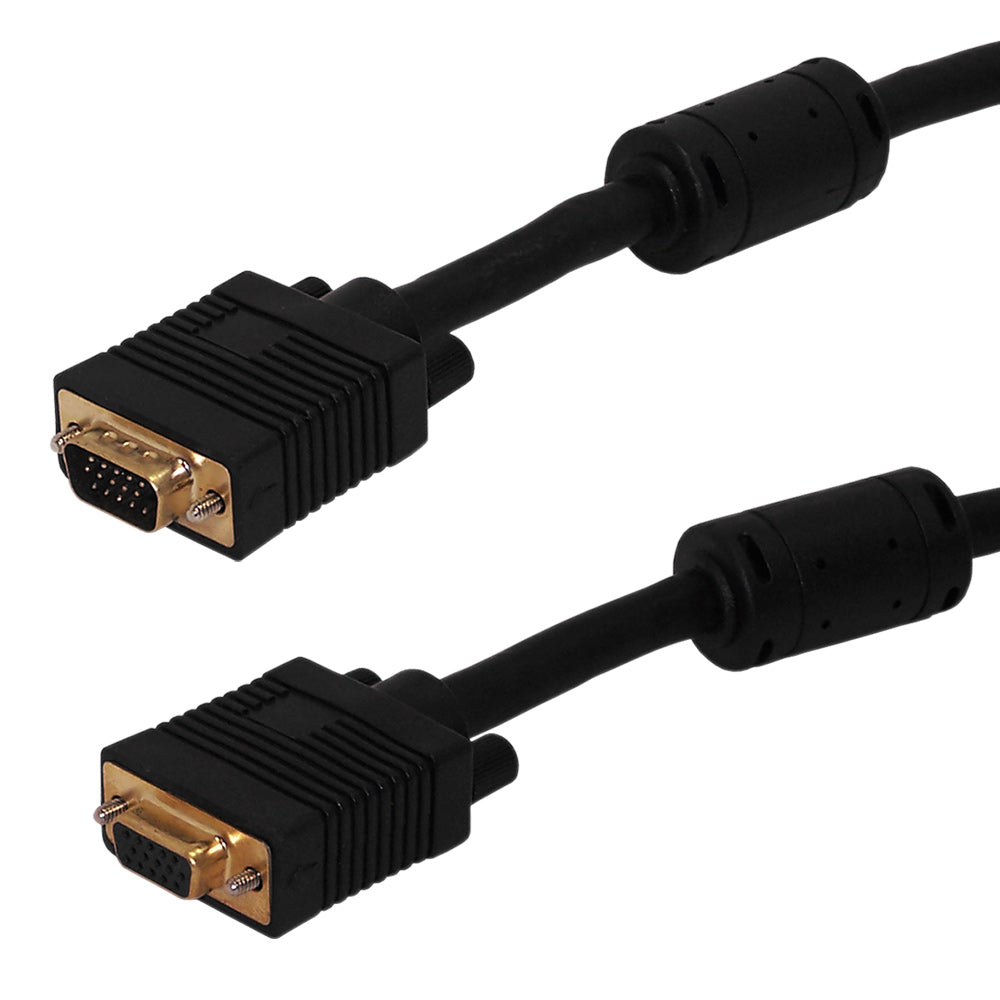

This SVGA/UXGA cable consists of a HD15 VGA male on one end and a HD15 VGA female on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as monitors/projectors.

Physical Characteristics
Color Black
Connector Plating Gold
Wire Gauge - Coax 3 - 28AWG Mini-Coax
Wire Gauge - Conductors 5 - 24AWG Pairs, 2 - 24AWG Conductors
Cable Diameter 9.0 mm
Shielding 85% Copper Braid, 100% Mylar Foil, Ferrite Cores
Jacket Fire Rating CL2/FT4
Jacket Material PVC
Strain Relief Molded PVC
Connector(s)
Connector A SVGA HD15 Male
Connector B SVGA HD15 Female
Performance
Resolution 1600 x 1200px
Impedance 75 ohm
Approvals
c(UL)us Approved Cable
Environmental
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1
Contents
Included in Package 1 - Cable
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft
0.37 lbs 0.53 lbs 0.77 lbs 1.19 lbs 1.63 lbs 2.04 lbs 3.37 lbs 4.65 lbs 5.46 lbs 8.25 lbs
SKU Options Weight
SVGA3-01 1ft 0.07 lb
SVGA3-03 3ft 0.15 lb
SVGA3-06 6ft 0.21 lb
SVGA3-10 10ft 0.33 lb
SVGA3-15 15ft 0.5 lb
SVGA3-25 25ft 0.77 lb
SVGA3-35 35ft 1.1 lb
SVGA3-50 50ft 1.55 lb
SVGA3-75 75ft 2.26 lb
SVGA3-100 100ft 3.0 lb
