SVGA HD15 Male to Male Cable CL2/FT4 - CMP

VGA CablesSKU: SVGA1-25PL

Length: 25ft
Price:
Sale price$78.48 USD
Stock:
In stock

Description

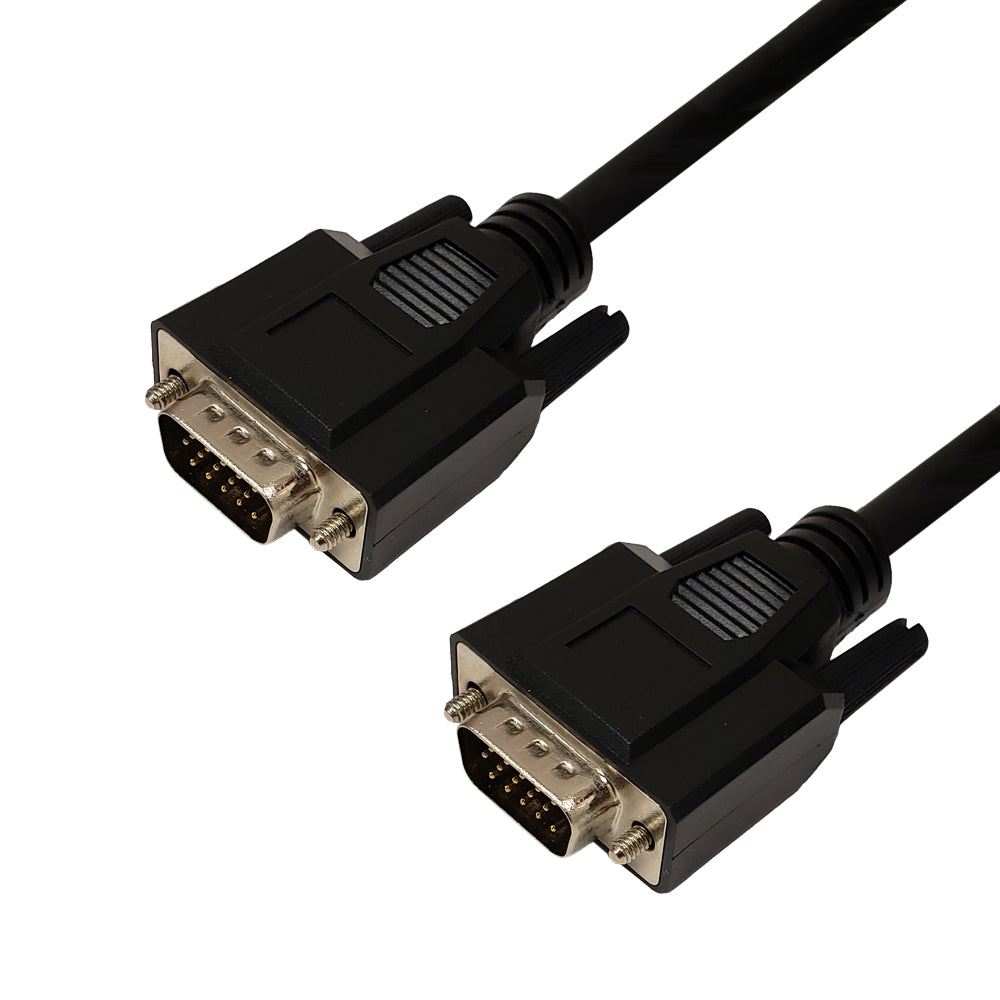

This SVGA/UXGA plenum rated cable consists of a HD15 VGA male on one end and a HD15 VGA male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as monitors/projectors.

Physical Characteristics
Color Black
Connector Plating Gold
Wire Gauge - Coax 3 - 28AWG Mini-Coax
Wire Gauge - Conductors 4 - 28AWG Pairs, 4 - 28AWG Conductors
Cable Diameter 8.5 mm
Shielding Copper Braid, 100% Mylar Foil
Jacket Fire Rating CMP - Plenum Rated
Jacket Material PVC
Strain Relief Molded PVC
Connector(s)
Connector A SVGA HD15 Male
Connector B SVGA HD15 Male
Performance
Resolution 1600 x 1200px
Impedance 75 ohm
Approvals
c(ETL)us Approved Cable
Environmental
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1
Contents
Included in Package 1 - Cable
Warranty Information
Warranty Limited Lifetime
Cable Weights
25ft 35ft 50ft 75ft 100ft
2.04 lbs 3.37 lbs 4.65 lbs 6.80 lbs 8.25 lbs
SKU Options Weight
SVGA1-25PL 25ft 0.77 lb
SVGA1-35PL 35ft 1.1 lb
SVGA1-50PL 50ft 1.55 lb
SVGA1-75PL 75ft 2.26 lb
SVGA1-100PL 100ft 3.0 lb
