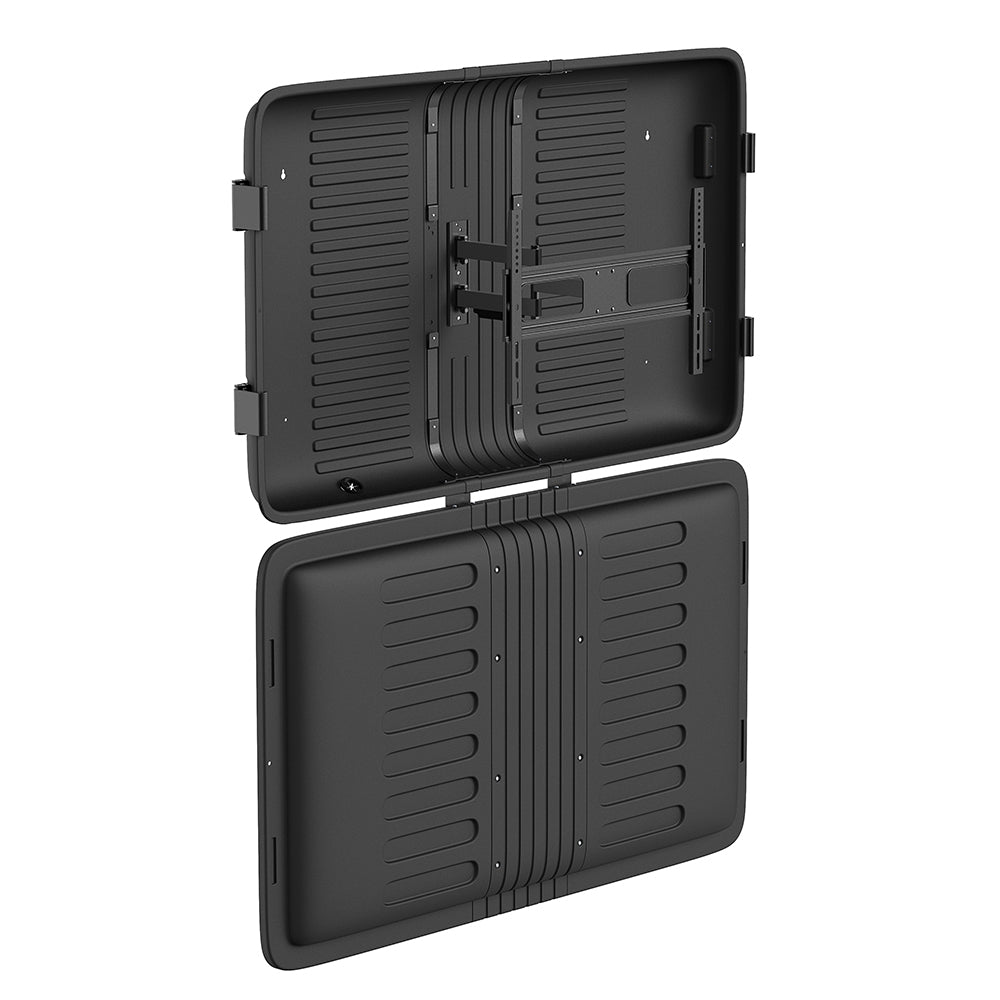

This swivel and tilting outdoor TV enclosure is designed to hold most 43 inch to 65 inch flat screen displays with a maximum VESA hole pattern of 600x400. It offers up to a +10° to -20° tilt and +90° to -90° swivel. This protective enclosure offers effective rain, wind, UV and vandal resistance, preventing the TV from any damage. Included is a full-motion mount for optimized viewing angles.
Dust, Weatherproof and Theft Protection
This protective TV enclosure offers rain, wind, UV resistance and theft protection due to its hard case and lockable construction.
This TV enclosure offers a wide VESA spacing to accommodate larger TVs and can accommodate TV sizes of 43 inch to 65 inch.
|Mounting Style||Tilting & Swivel Wall Mount|
|Dimensions||1640 x 1020 x 205mm [64.6 x 40.2 x 8.1 inches]|
|Mounting Pattern||VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400|
|Metal Sheet Thickness||Wall Plate Thickness = 2.5mm cold-rolled sheet [0.098 inches]
VESA Panel Thickness = 2mm cold-rolled sheet [0.079 inches]
Bracket Arm Thickness = 2mm cold-rolled sheet [0.079 inches]
|Pipe Size||40 x 20 x 1.5mm Square Steel Tube [1.6 x 0.79 x 0.059 inches]|
|Screen Size||43 - 65 inches [109 - 165cm]|
|Weight Capacity||110 lbs [50kg]|
|Tilt||+10° ~ -20°|
|Swivel||+90° ~ -90°|
|Profile||2.4 - 18.6 inches [60 - 473mm]
|Level Adjustment||-3° ~ +3°|
|Screen Freely Tilting
|Wall Plate Type
||Fixed Wall Plate
|Installation||Single Stud, Solid Wall
|Mounting Hardware||4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Big Spacers
8 - ST6.3x55 Screws
4 - ST3.5x50 Screws
8 - Concrete Anchors
4 - Anchors
4 - D6 Washers
4 - D5 Washers
|Product Weight||49lbs [22.2kg]|
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
