Description

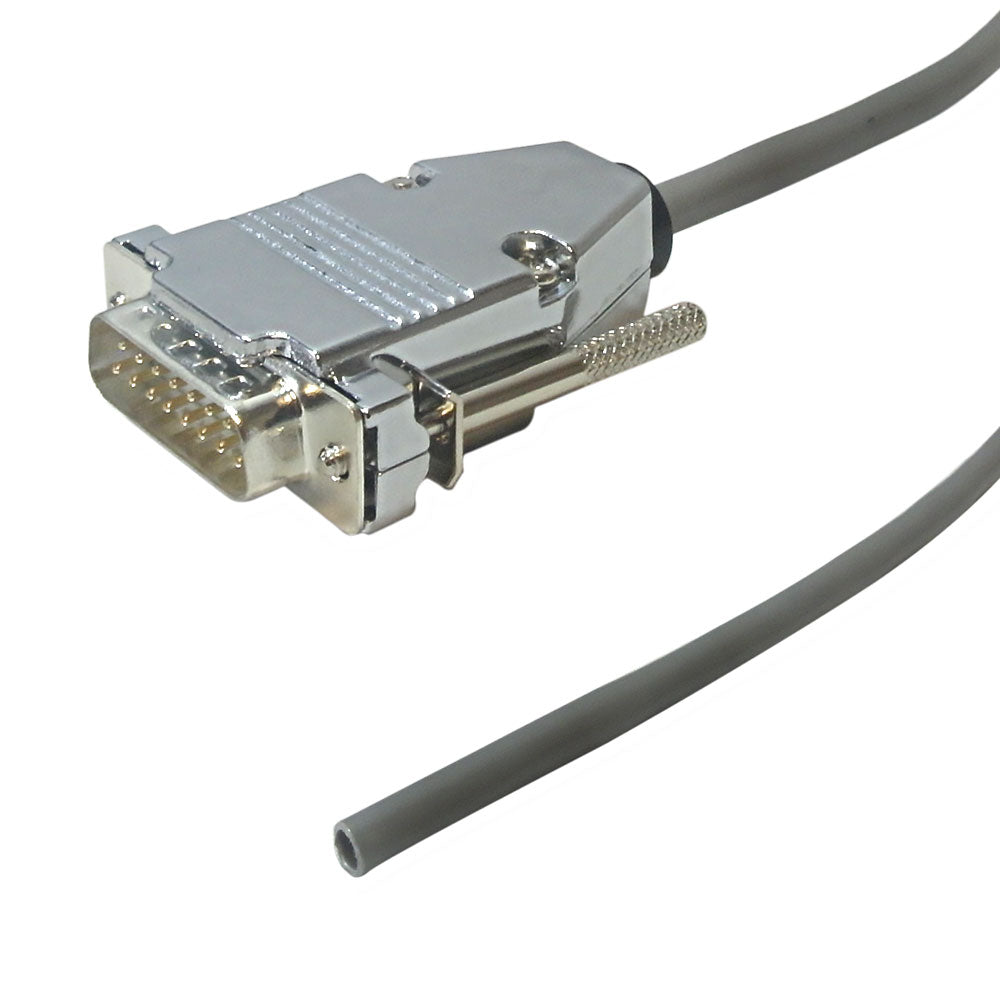

This T1 cable is constructed using one DB15 male connector on one end and a blunt on the other.
| Physical Characteristics | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Color | Grey | |||||||||
| Shielded | Yes | |||||||||
| Cable Rating | T1 | |||||||||
| Wire Gauge | 24 AWG | |||||||||
| Impedance | 100 Ohm | |||||||||
| Connectors | ||||||||||
| Connector A | DB15 male | |||||||||
| Connector B | Blunt | |||||||||
| Pin-outs | ||||||||||
|
||||||||||
| Environmental | ||||||||||
| RoHS | Yes | |||||||||
| Packaging Information | ||||||||||
| Package Quantity | 1 | |||||||||
| Warranty Information | ||||||||||
| Warranty | Limited Lifetime | |||||||||
| 3ft | 7ft | 10ft | 15ft | 25ft | 50ft | 75ft | 100ft | 125ft | 150ft |
| 0.20lbs | 0.50lbs | 0.70lbs | 0.90lbs | 1.60lbs | 3.20lbs | 4.80lbs | 6.40lbs | 8.00lbs | 9.60lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| T1-310-03 | 3ft | 0.15 lb |
| T1-310-07 | 7ft | 0.24 lb |
| T1-310-10 | 10ft | 0.33 lb |
| T1-310-15 | 15ft | 0.5 lb |
| T1-310-25 | 25ft | 0.77 lb |
| T1-310-50 | 50ft | 1.55 lb |
| T1-310-75 | 75ft | 2.26 lb |
| T1-310-100 | 100ft | 3.0 lb |
| T1-310-125 | 125ft | 5.0 lb |
| T1-310-150 | 150ft | 6.2 lb |
