Description

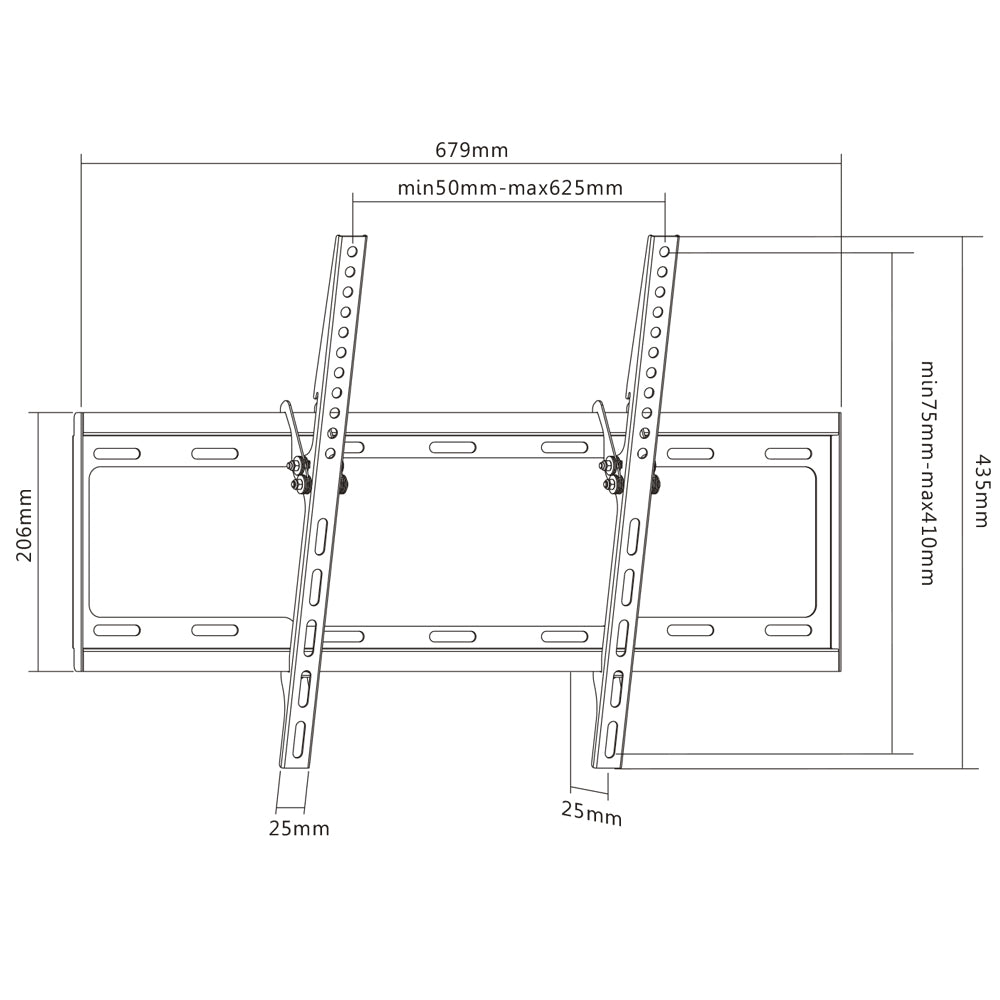

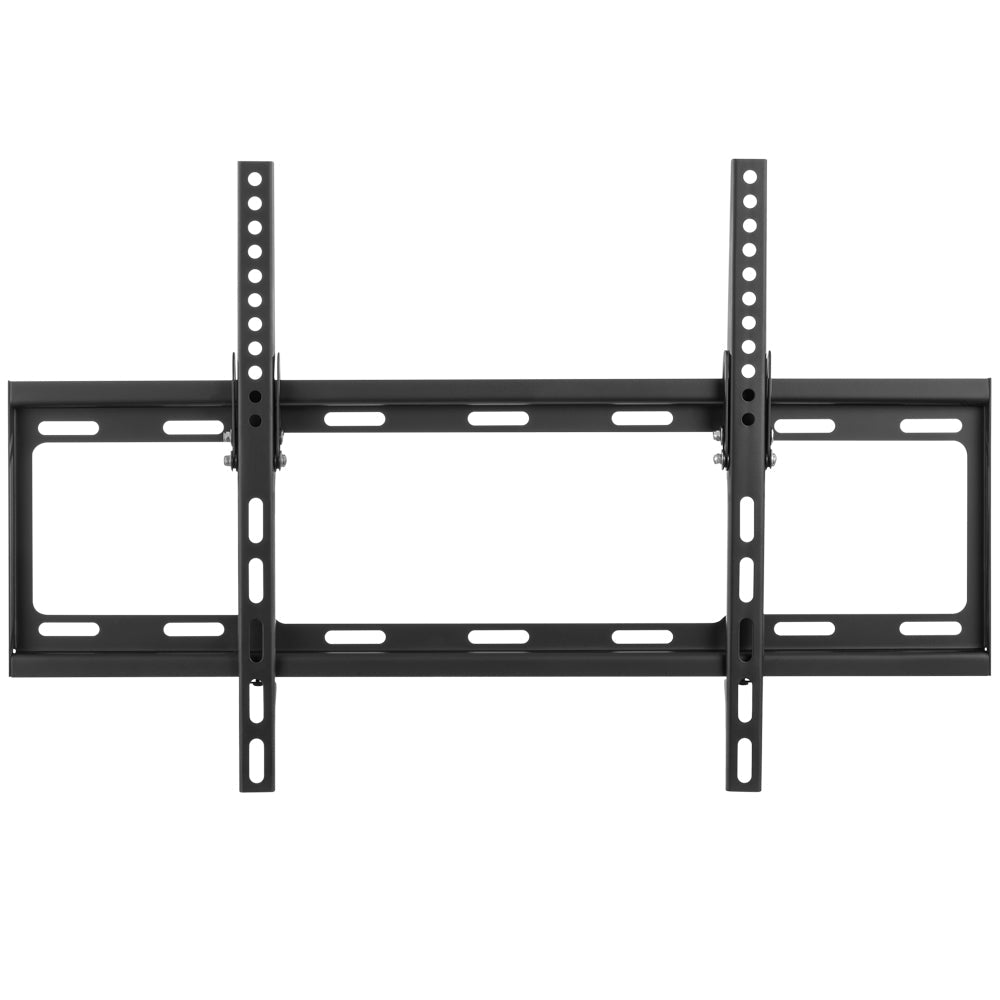

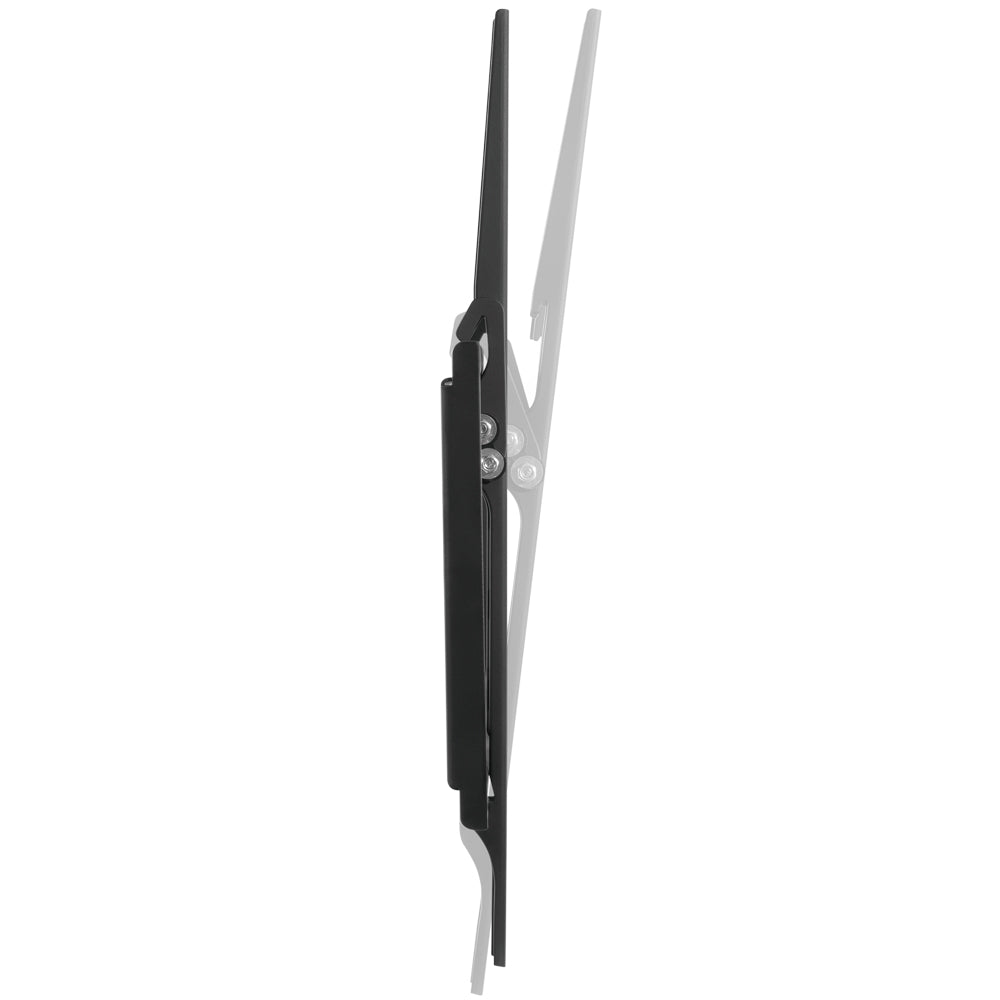

This wall mount bracket is designed to hold most 37 inch to 70 inch flat and curved screen displays with a maximum VESA hole pattern of 600x400. It offers a up to a 14Ā° downward tilt. It can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel |
| Mounting Pattern | VESA 200x200, 400X200, 300X300, 400X400, 600x400 |
| Screen Size | 37 - 70 inches [94 - 178cm] |
| Weight Capacity | 77lbs [35kg] |
| Tilt | 0Ā°~14 |
| Profile | 25mm |
| Installation | Solid Wall or Double Stud |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Certification | c(UL) |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M6x30 Screws 4 - M8x30 Screws 4 - D8 Washers 4 - Big Spacers 4 - ST6.3x55 Screws 4 - Concrete Anchors 4 - D6 Washers |
| Product Weight | 5.0lbs [2.0kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| MT-433-BK | 5.01 lb |
