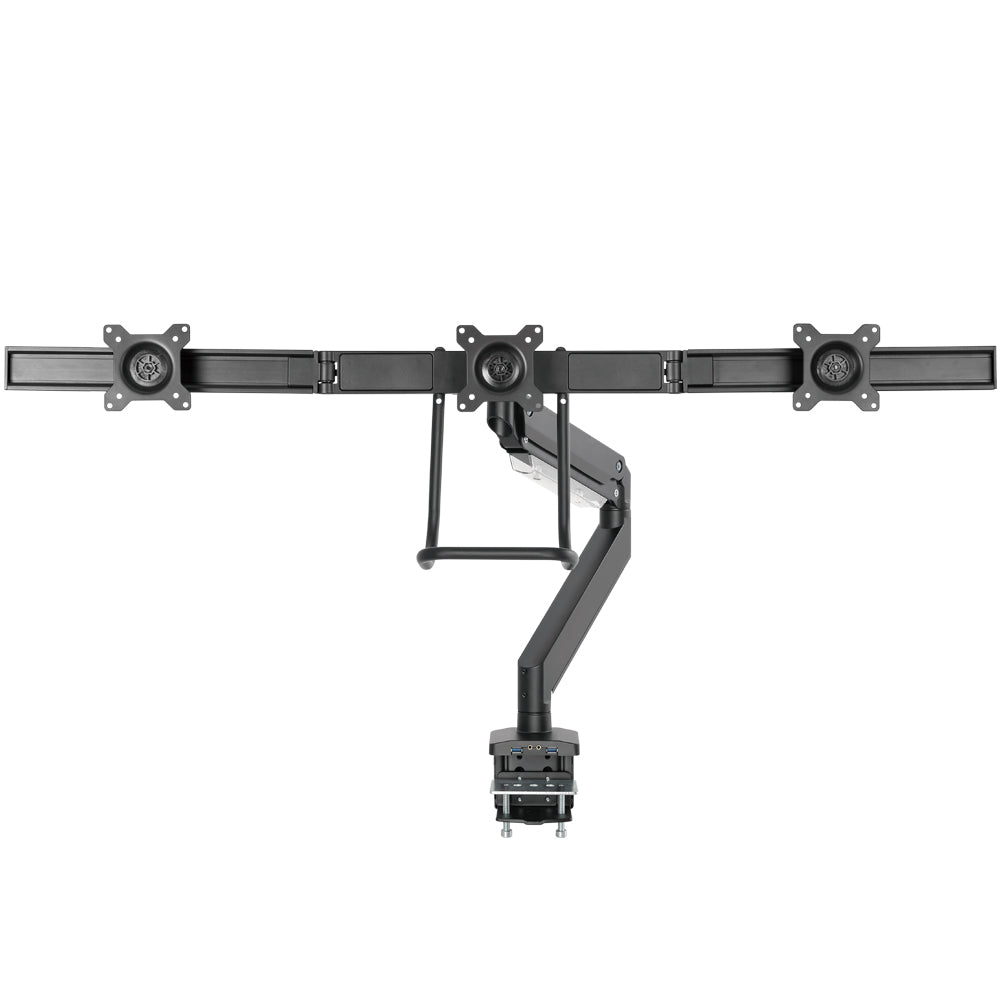

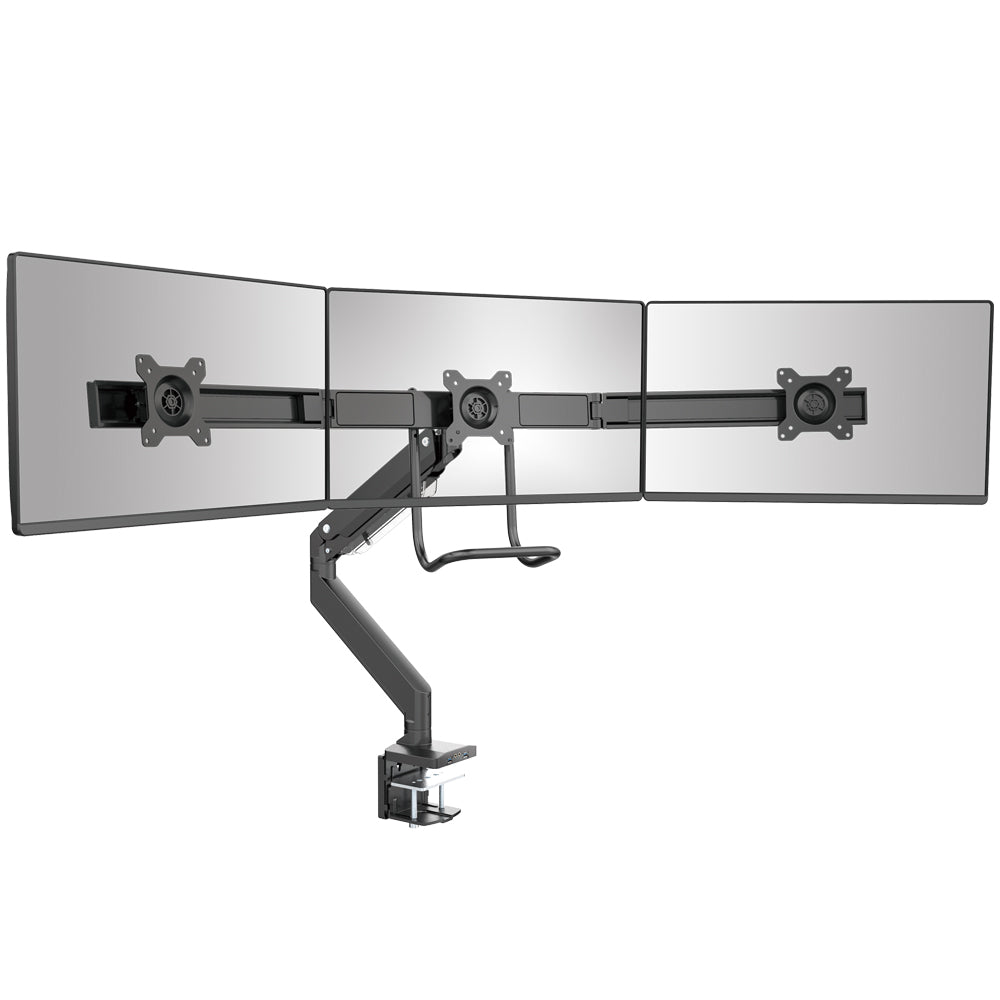

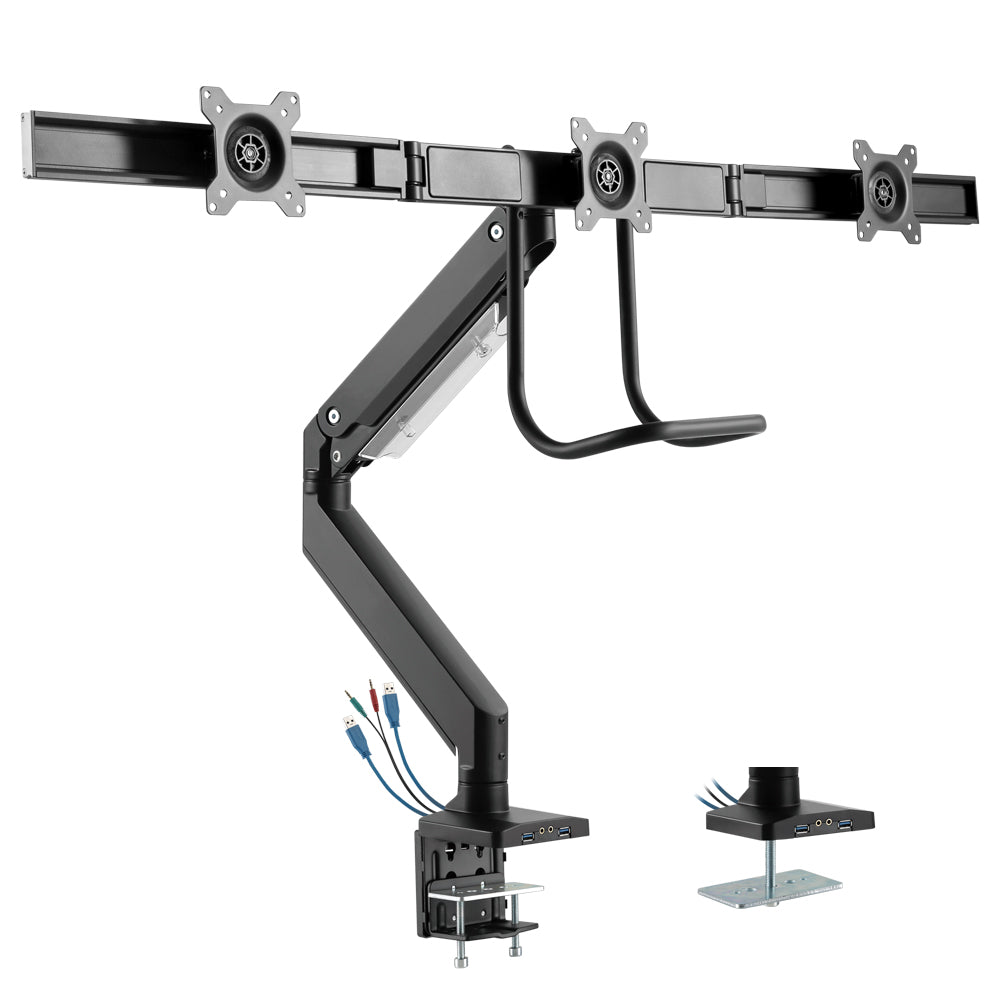

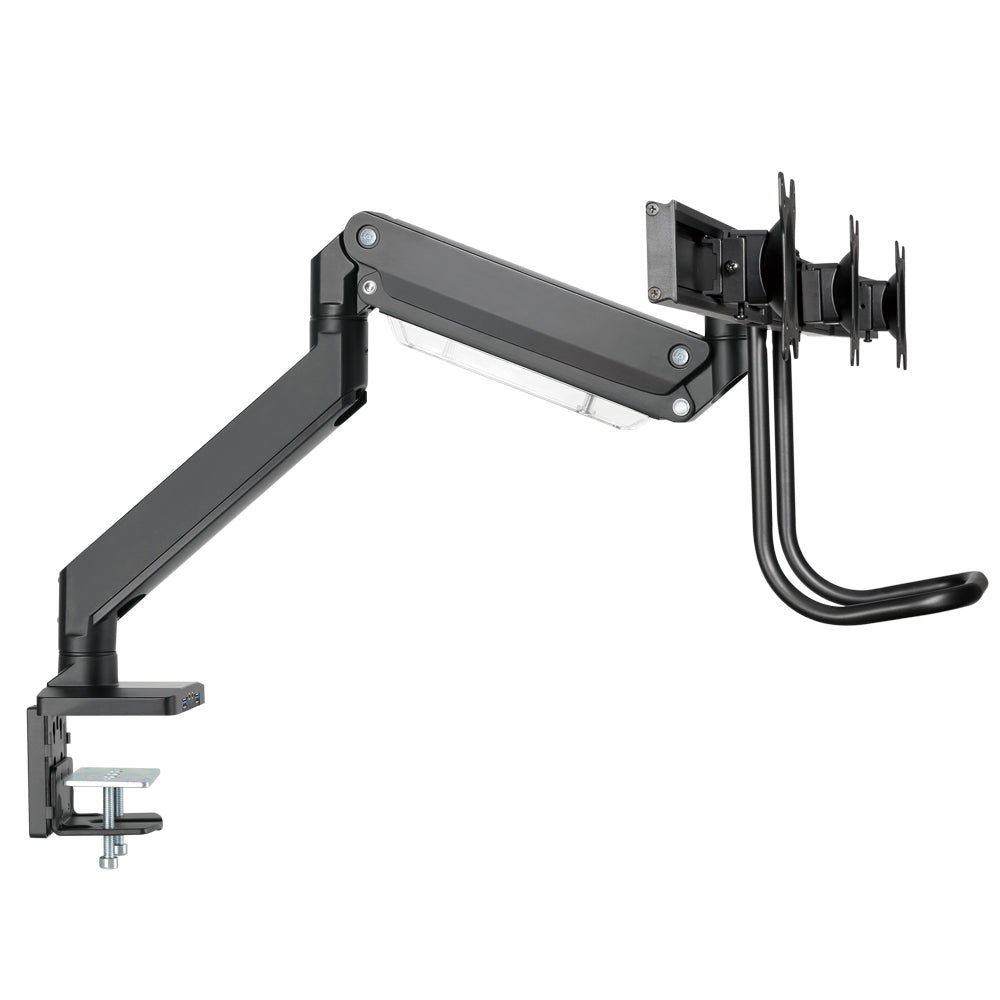

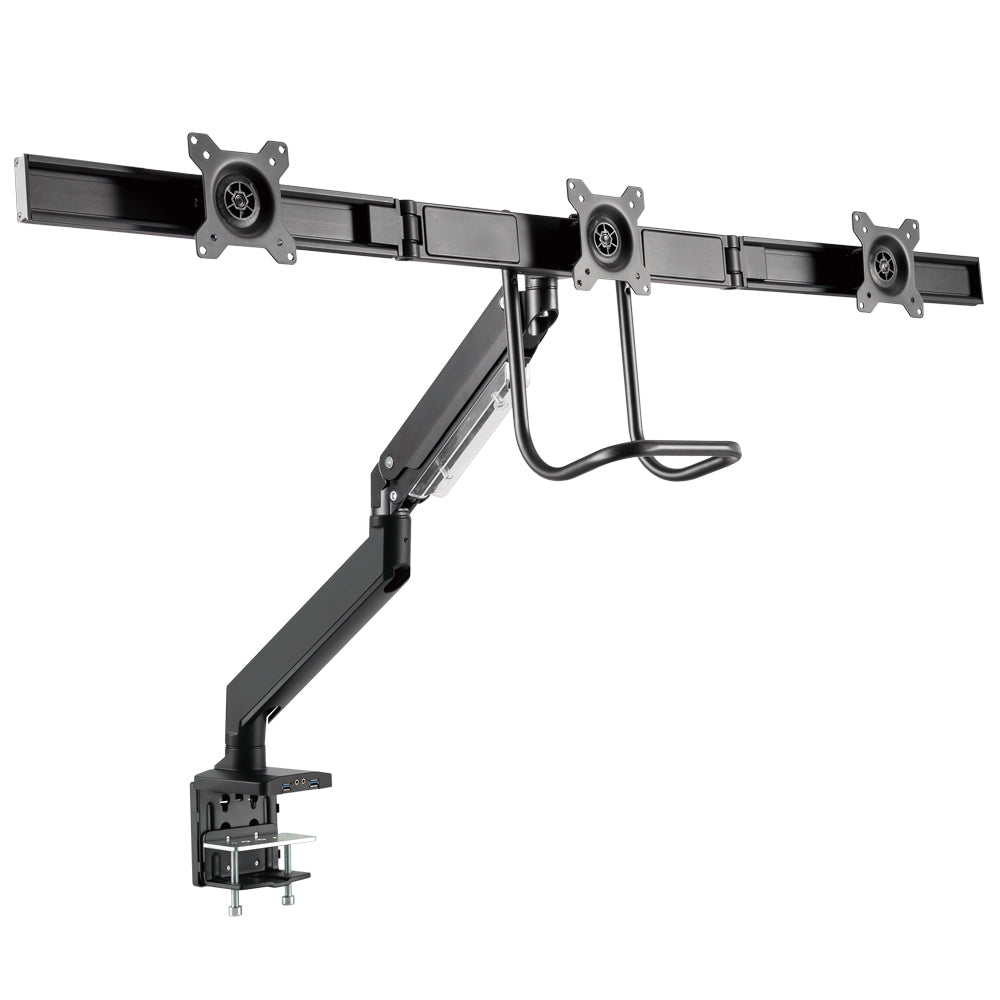

This full motion swivel, tilt and rotating triple desktop monitor mount is designed to hold three 17 inch to 27 inch displays with a maximum VESA hole pattern of 100x100. It offers up to a 5° to -15° tilt, 10° to -10° swivel and screen rotation of 180° ~ -180°. It can be used in both residential and commercial environments.
Easy Installation and Adjustment
With the universally supported VESA hole mounting pattern, this desktop mount is easy to set-up and install. It is easy to adjust, with no tools required.

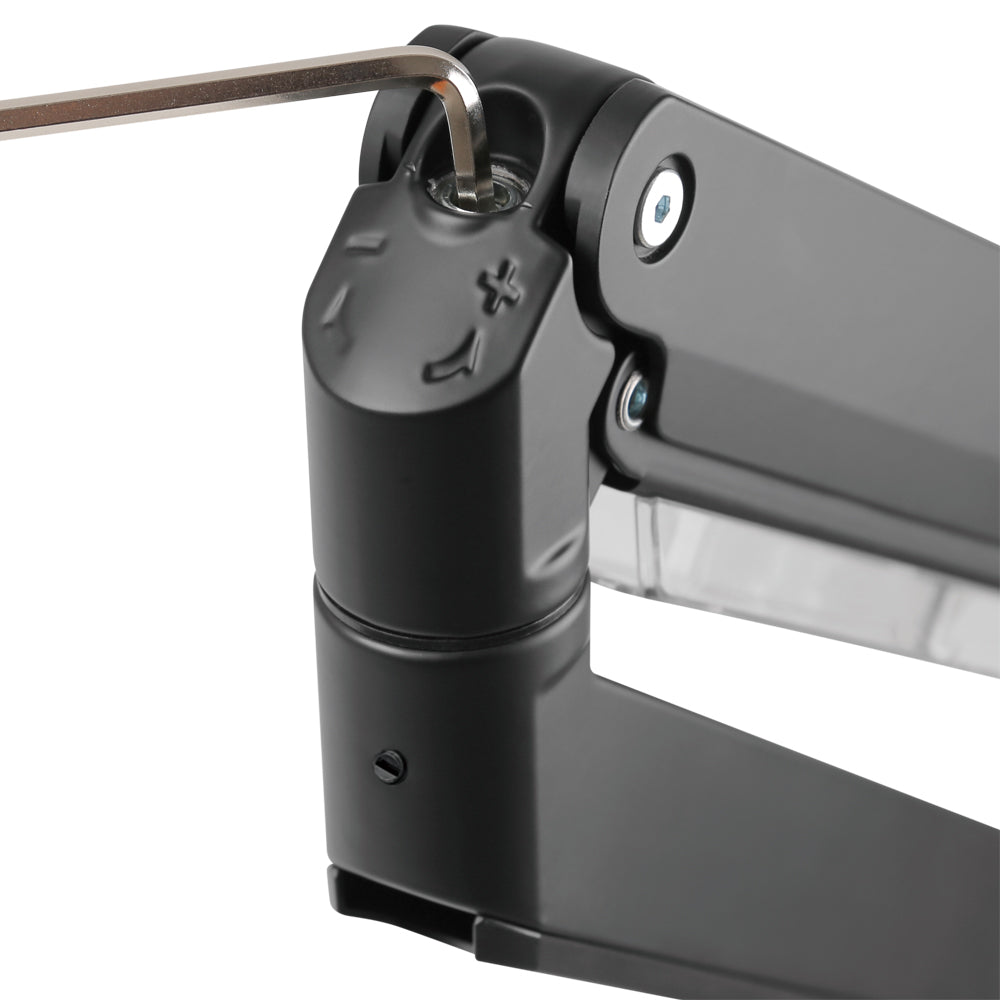

Counterbalance the Weight of your Monitor
The gas spring ensures smooth movement with ease and perfectly counterbalances the weight of the monitor.

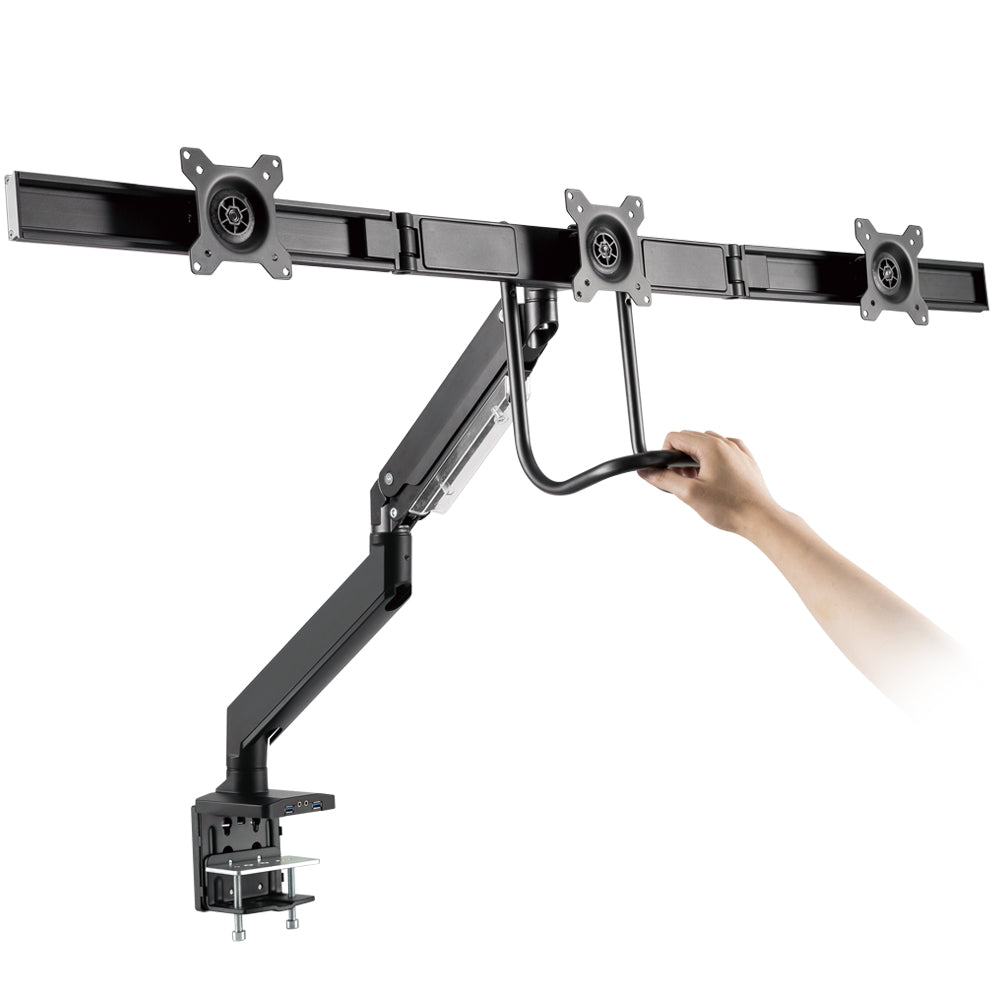

Easy Grip Handle
The easy grip handle makes pull-down and placement of the mount effortless for the user. It can help position three monitors at the same time with ease.

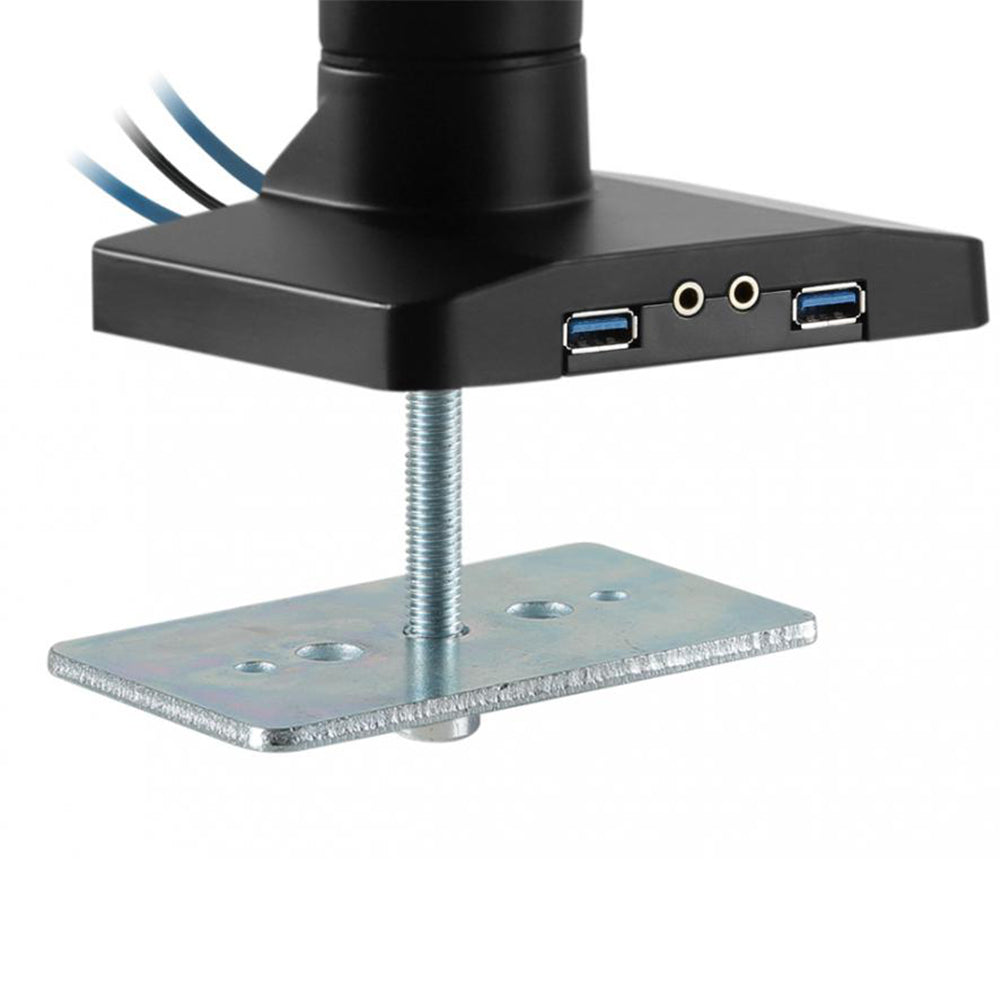

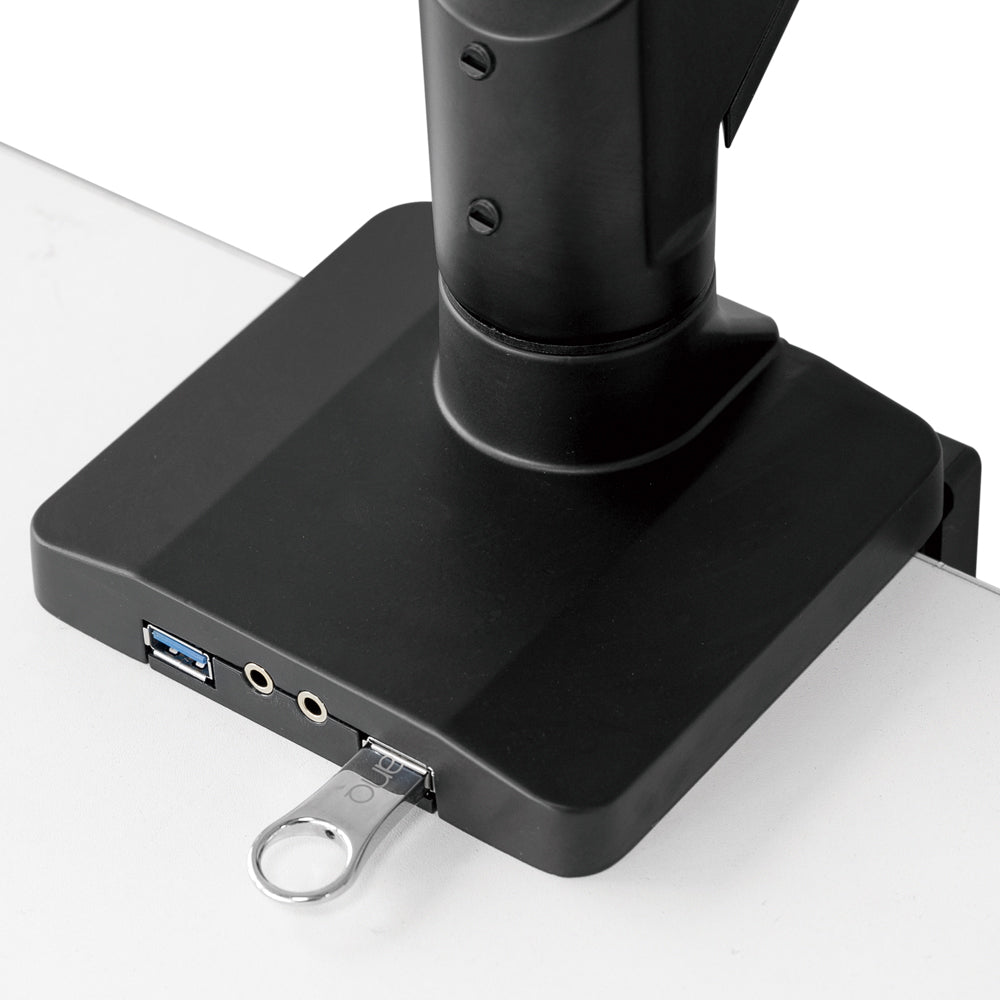

USB and Multimedia Ports
There are two USB 3.0 ports and multimedia (one microphone, one headphone) ports on the base. Data transmission, charging and headset use has never been so convenient.
|Mounting Style||Gas Spring Monitor Arm|
|Color||Powder Coated Black|
|Material||Aluminium, Plastic, Steel|
|Mounting Pattern||VESA 75x75, 100x100|
|Dimensions||1330x709x770mm [52.4 x 27.9 x 30.3 inches]|
|Screen Size||17 - 27 inches [43.2 - 68.6 cm]|
|Tilt||+5° ~ -15°|
|Swivel||+10° ~ -10°|
|Screen Rotation||+180° ~ -180°|
|Arm Full Extension||526mm (20.7")|

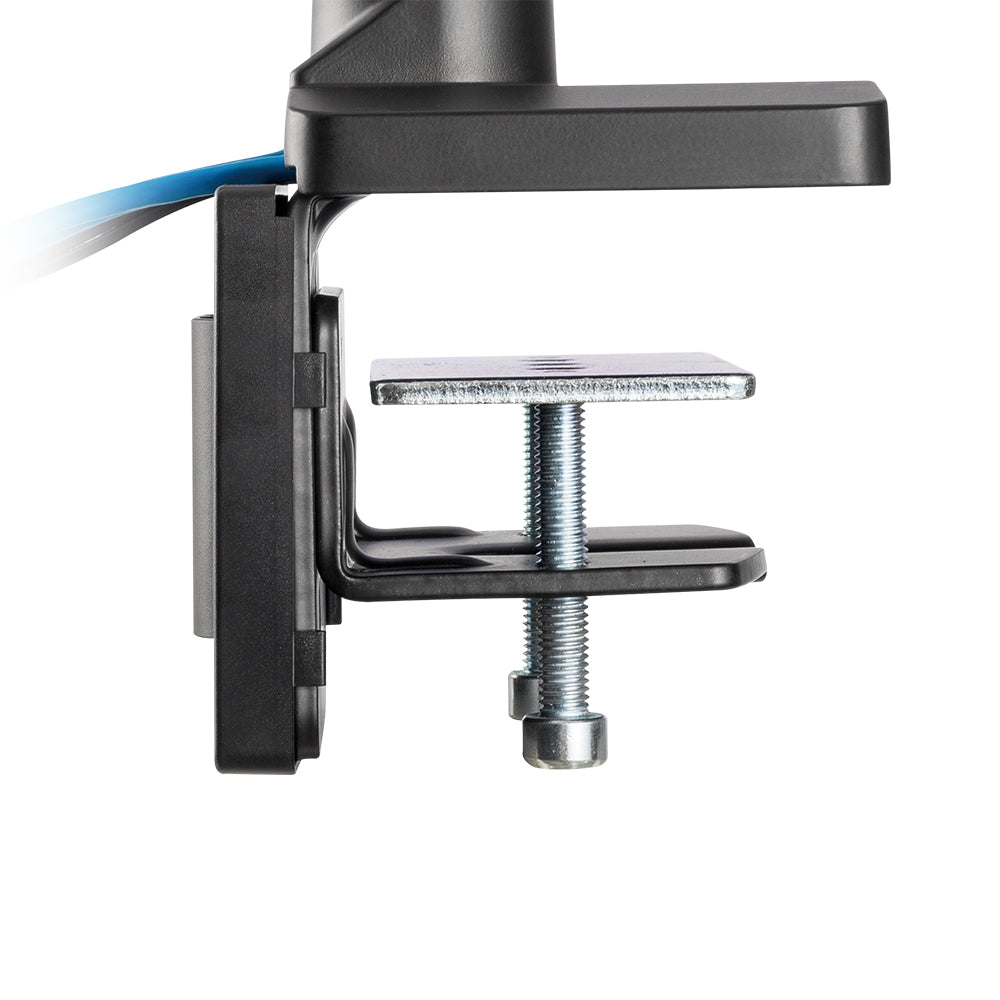

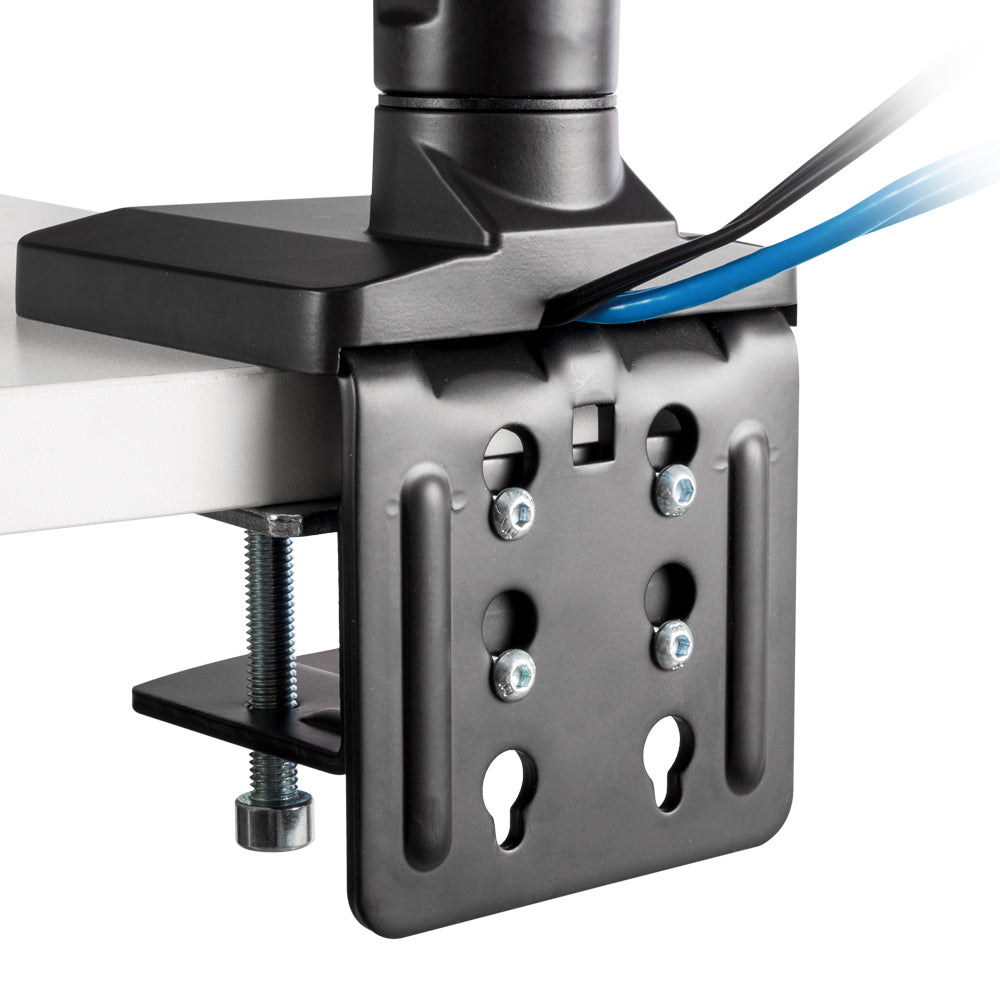

|Suggested Desktop Thickness||Clamp: 10~85mm [0.39~3.3"]
Grommet: 10~48mm [0.39~1.9"]
|Quick Release VESA Plate||Yes|
|Ports||2x USB 3.0 Ports
Microphone Port, Headphone Port
|Product Weight||22.9 lbs [10.4kg]|
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
