Twist-on Electrical Wire Caps (100 Pack)

Description
Spec Sheets
Product Weights

Description

These twist-on wire caps ensure a secure, reliable connection for all standard electrical and low-voltage applications. Engineered with a durable steel core and a UL94V-2 flame-retardant thermoplastic shell, they feature an internal spring design that grips wires tightly for a superior, long-lasting hold.

Active Spring-Action Grip

An internal steel spring design actively bites into stripped wires as you twist, ensuring a highly secure connection that won't loosen under mechanical vibration or thermal expansion.

High-Heat & Flame Resistance

Encased in a rugged thermoplastic cover with a UL94V-2 flame rating, safely handling operating temperatures up to 105°C (221°F).

Fully Certified & Compliant

Meet safety and environmental standards, carrying UL, CSA, and RoHS certifications for peace of mind on regulated job sites.

Suitable wires

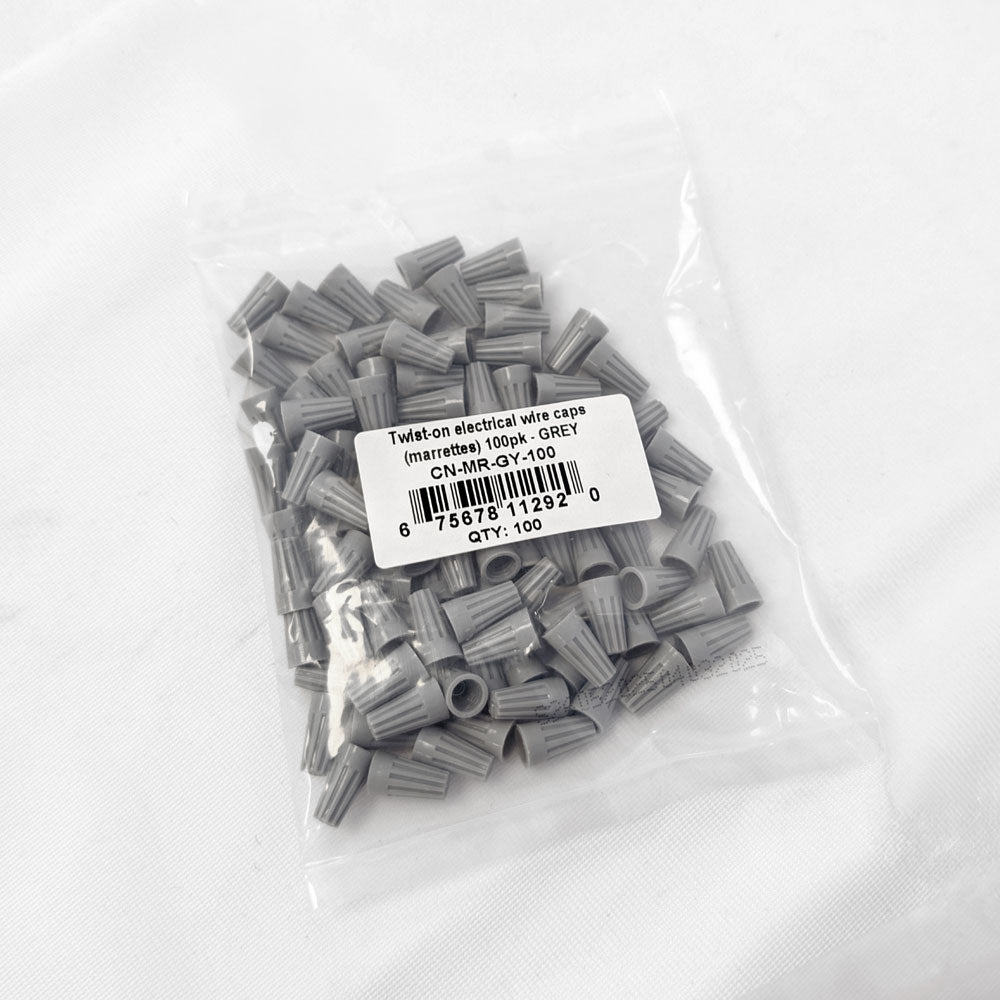

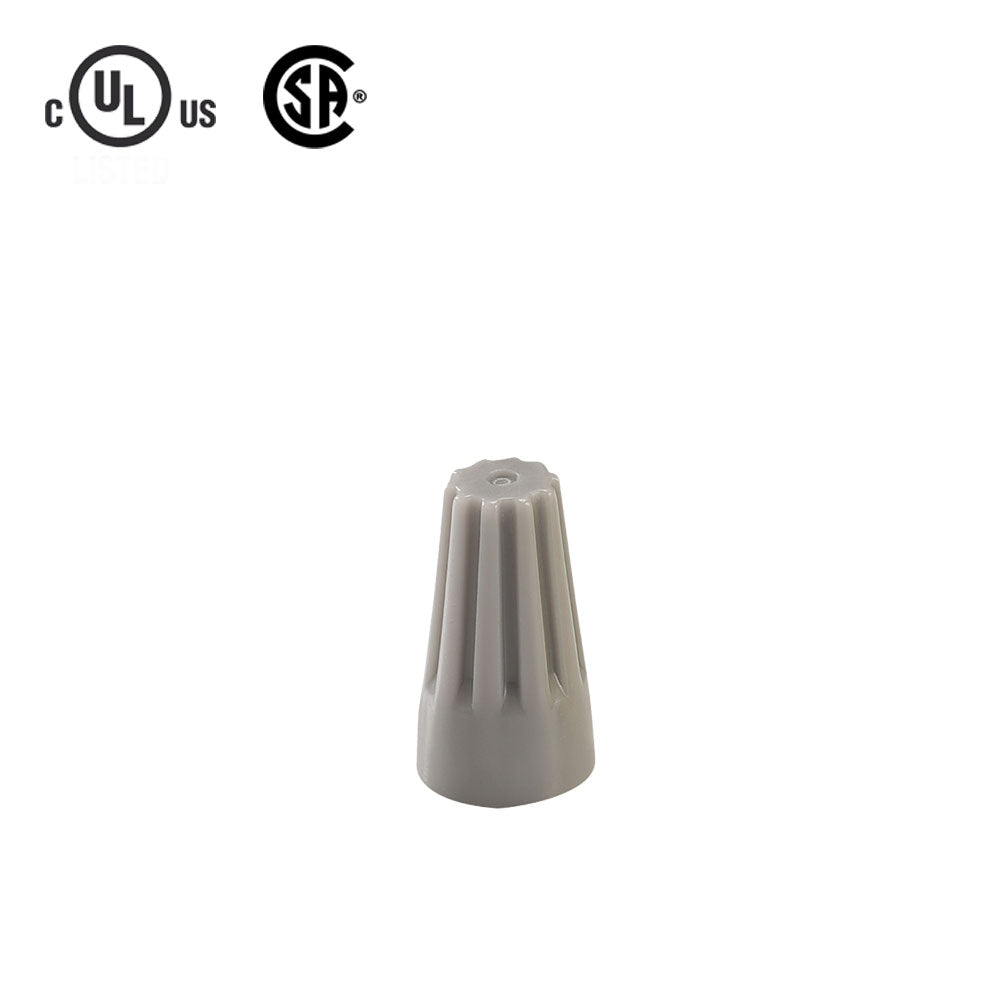

CN-MR-GY-100	AWG Max. 1 #16 w/1 #18 w/1 #20 Min. 2 #22 JIS Max. 1 #1.25 w/1 #0.75 w/1 #0.5 Min. 2 #0.5

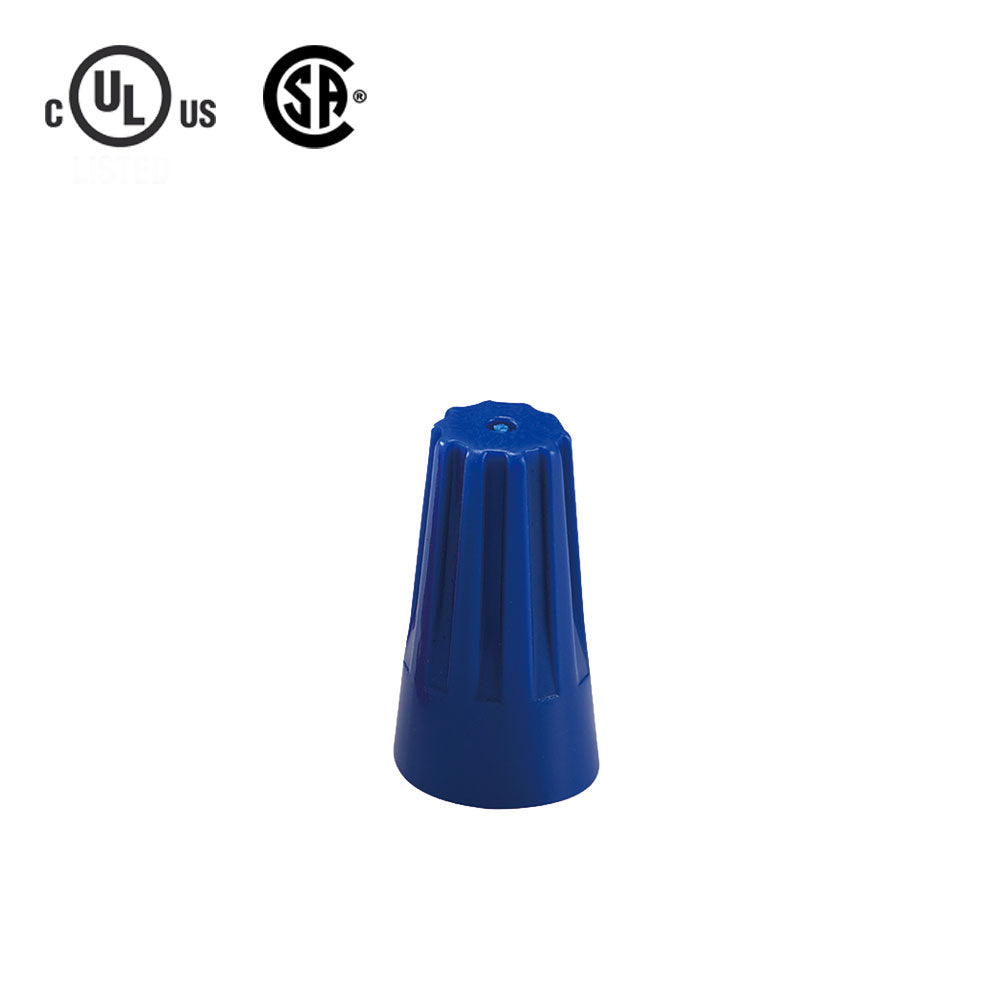

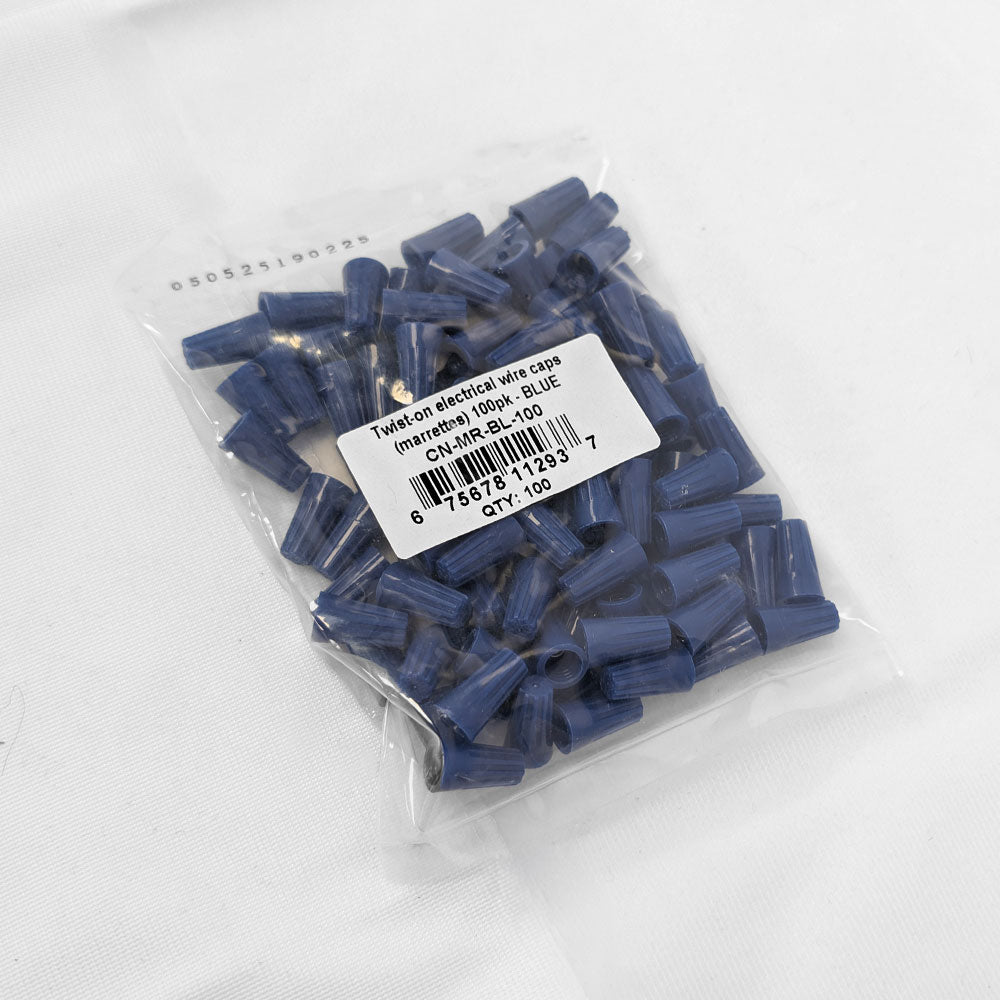

CN-MR-BL-100	AWG Max. 3 #16 Min. 2 #22 JIS Max. 3 #1.25 Min. 2 #0.5

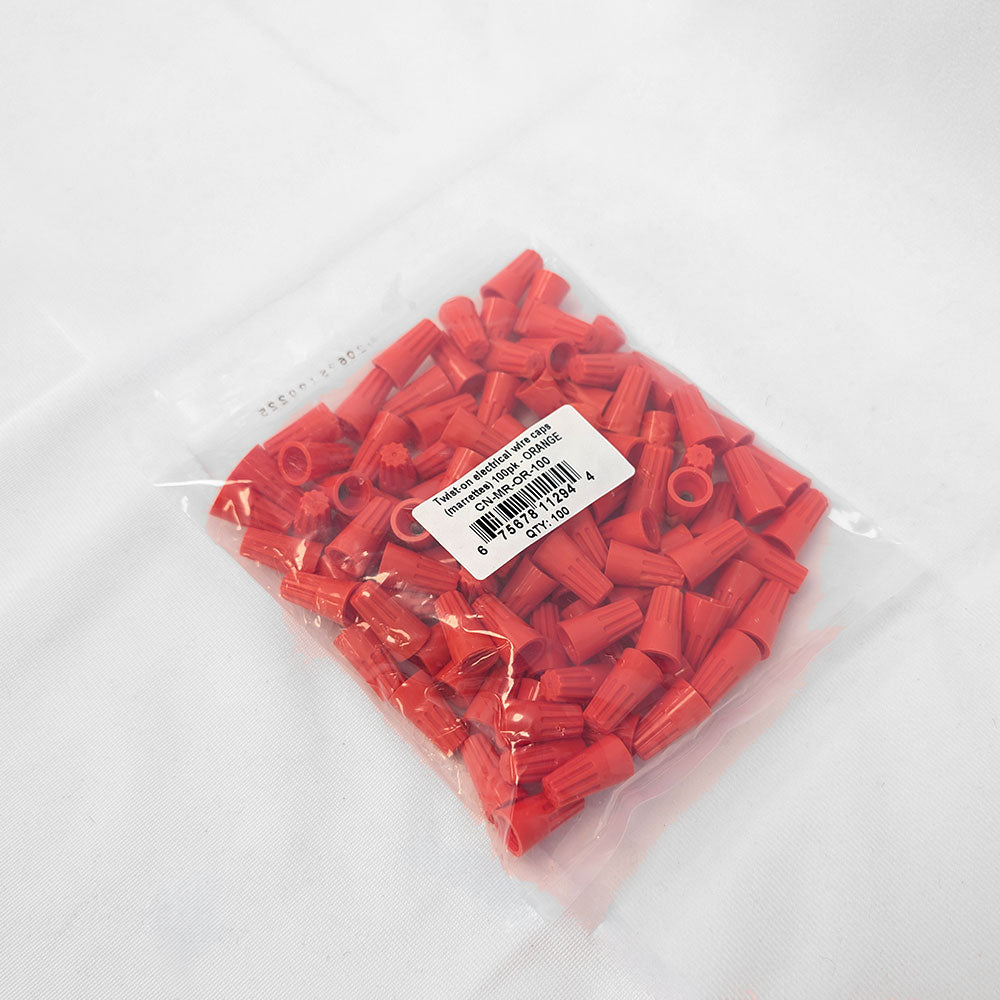

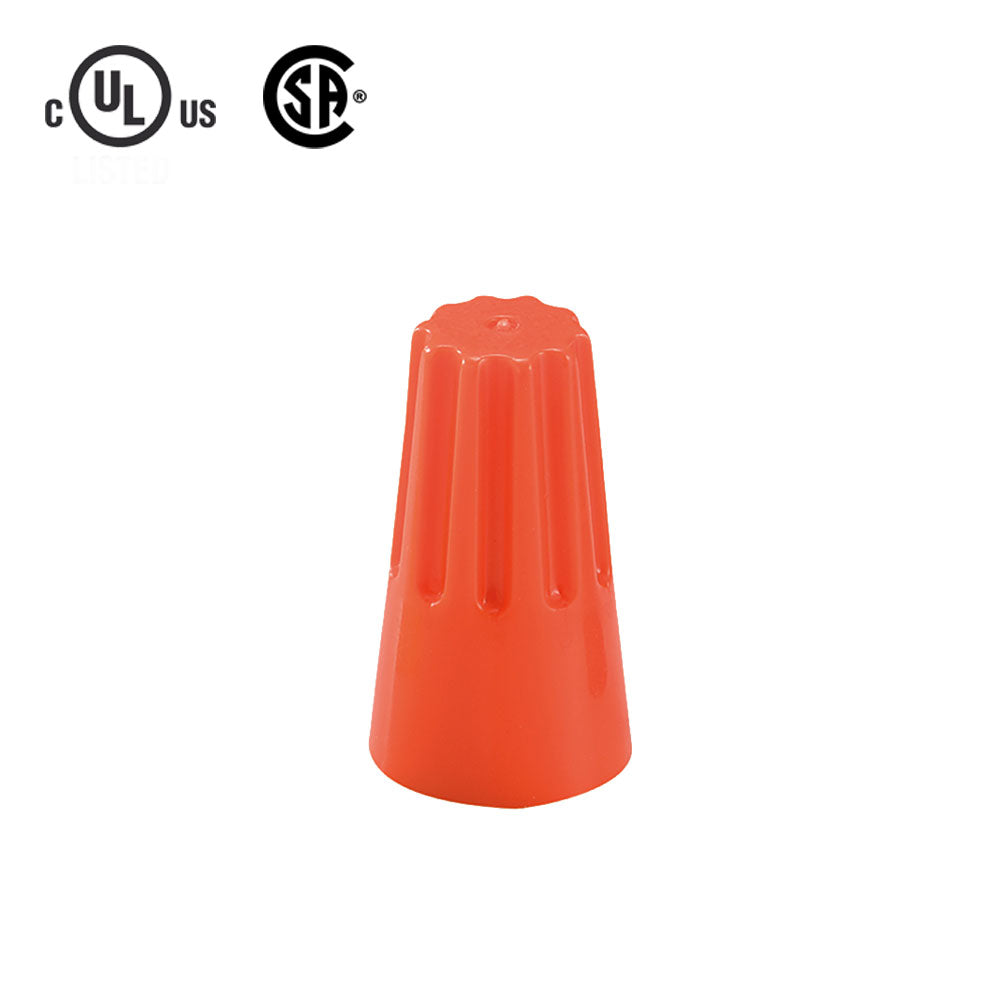

CN-MR-OR-100	AWG Max. 4 #16 w/1 #20 Min. 1 #18 w/1 #20 JIS Max. 4 #1.25 w/1 #0.5 Min. 1 #0.75 w/1 #0.5

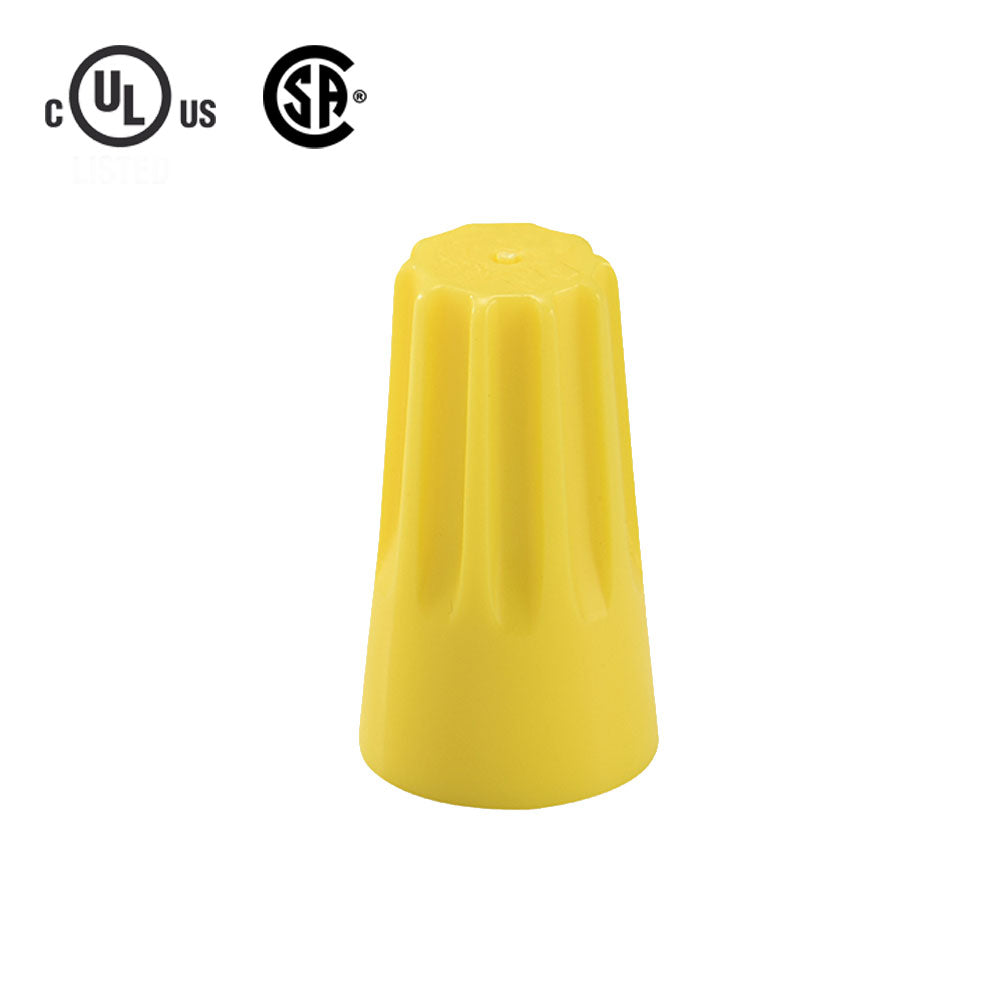

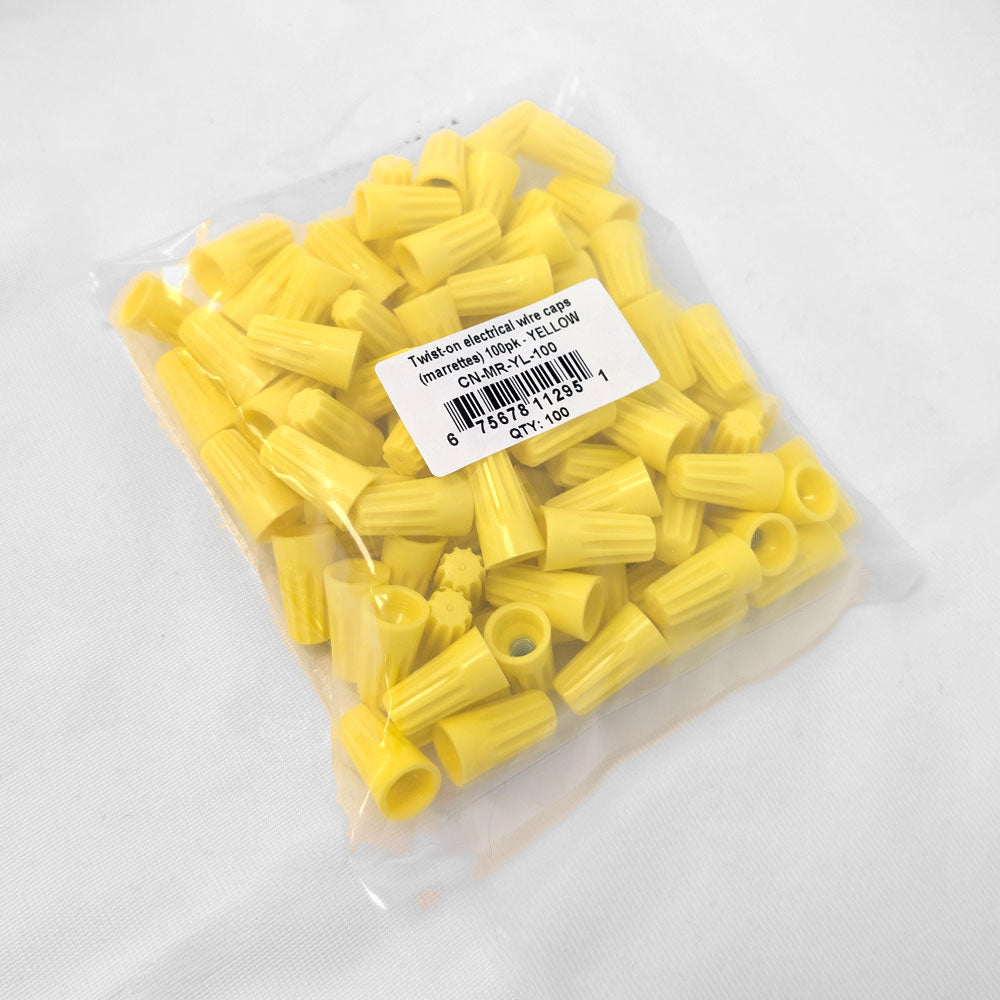

CN-MR-YL-100	AWG Max. 2 #12 w/2 #14 Min. 3 #20 Sol JIS Max. 2 #3.5 w/2 #2.0 Min. 3 #0.5 Sol

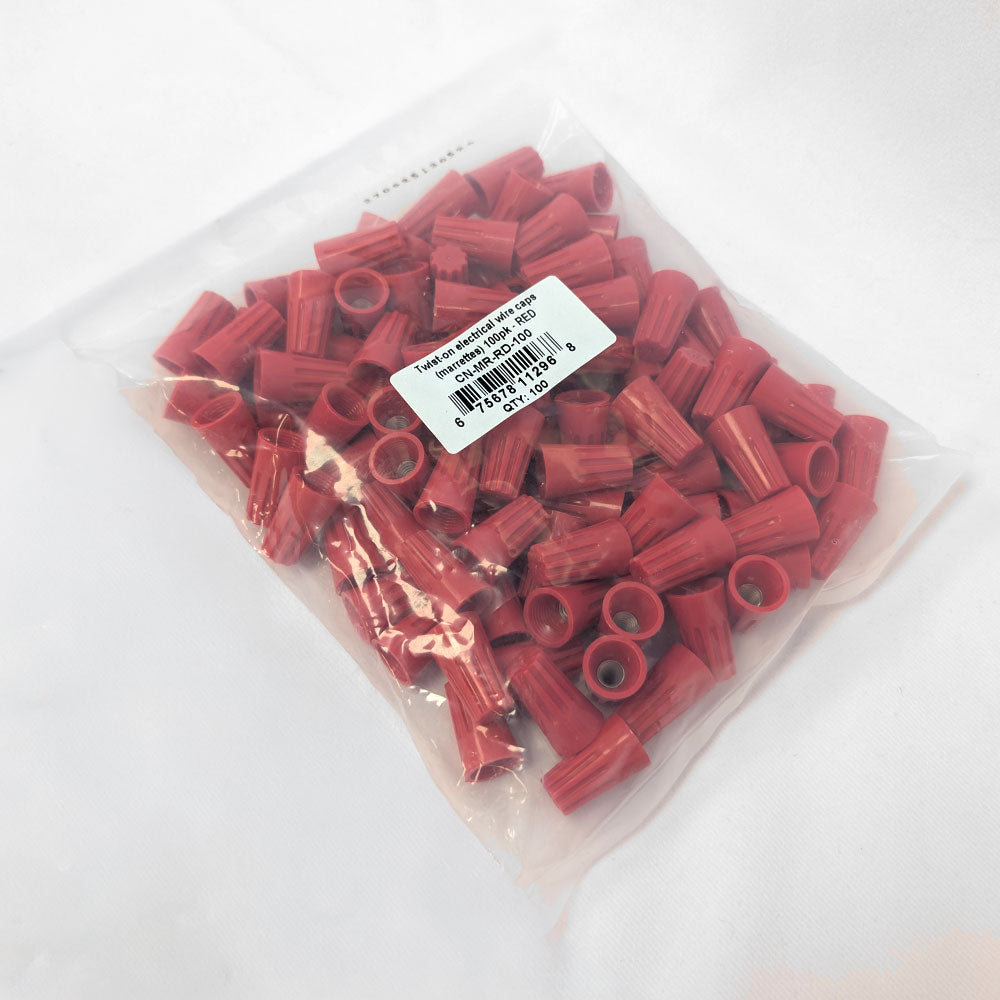

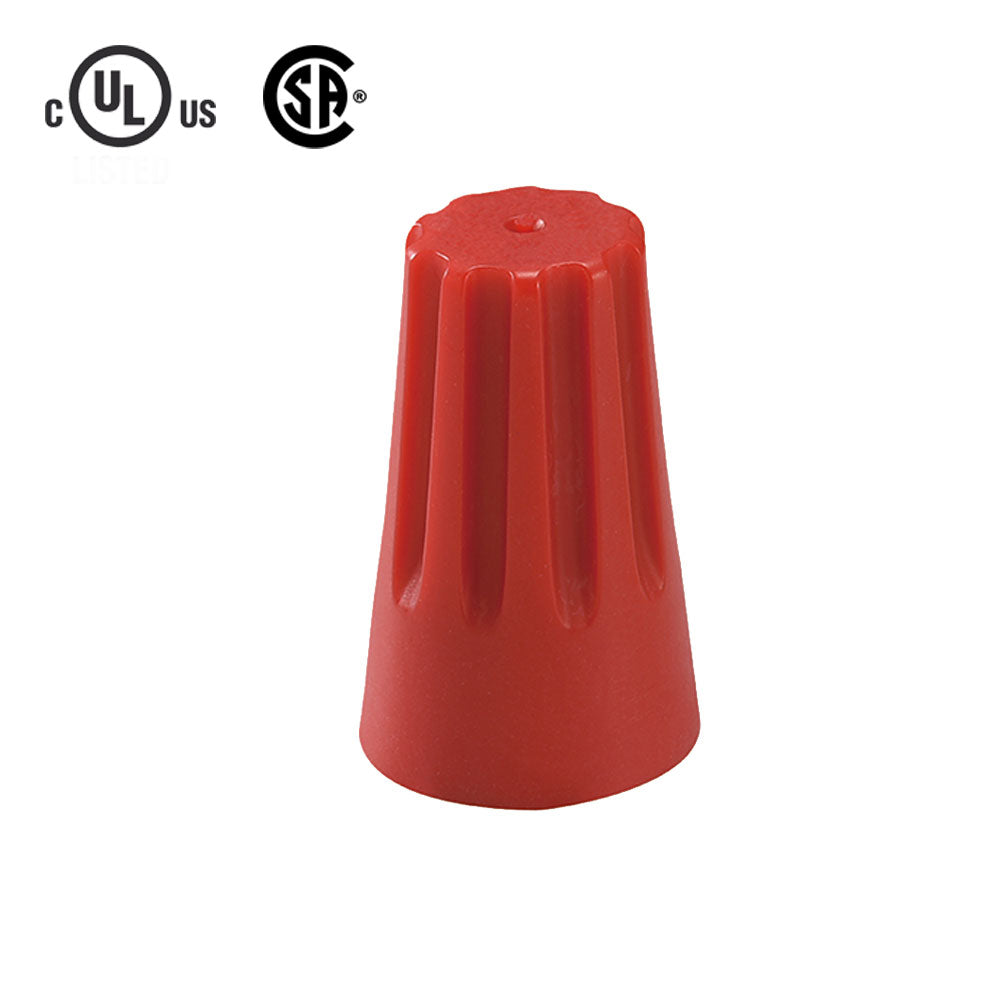

CN-MR-RD-100	AWG Max. 2 #10 Sol w/2 #12 Str Min. 3 #18 JIS Max. 2 #5.5 Sol w/2 #3.5 Str Min. 3 #0.75

Physical Characteristics
Color	Grey	Blue	Orange	Yellow	Red
Outer Diameter	8.6mm	9.9mm	12.7mm	14mm	16.3mm
Inner Diameter	6.5mm	7.1mm	9.7mm	11mm	13.1mm
Height	15.2mm	17.7mm	22mm	24.6mm	26.5mm
Voltage Rating	300V max.	300V max.	600V max.	600V max.	600V max.
Temperature Rating	105℃ (221℉)
Material	Steel with thermoplastic cover
Flame Rating	UL94V-2
Approvals
c(UL)us	Compliant
CSA	Compliant
Environmental
RoHS	Compliant
Packaging Information
Package Quantity	100
Product Weight	0.09 lbs	0.16 lbs	0.30 lbs	0.41 lbs	0.65 lbs
