Description

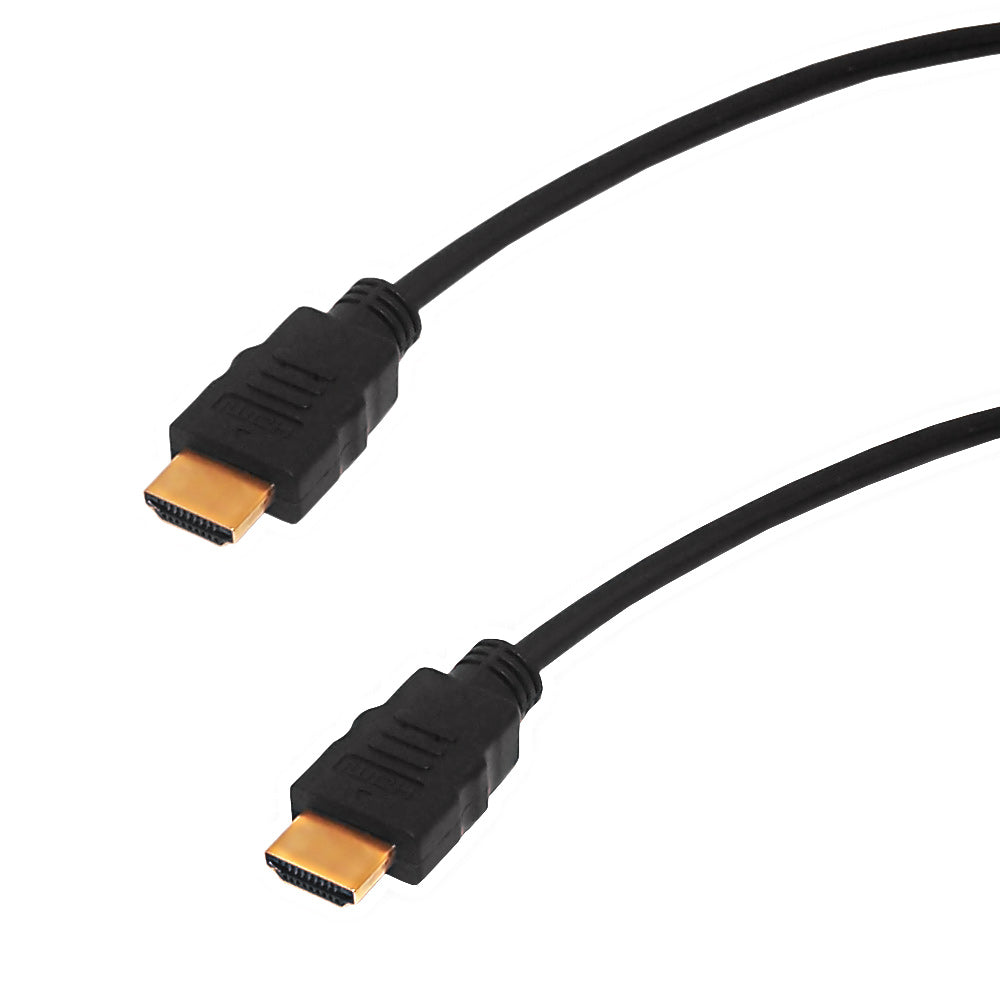

This High-Speed HDMIĀ® cable consists of a HDMI male connector on both ends. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports ultra HD resolutions up to 4k x 2k.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 5.0 mm |
| Wire Gauge | 32 AWG |
| Shielding | 85% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | CL3/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
| Performance | |
| Resolution | HD 4k x 2k (4096 x 2160) @ 60Hz |
| Built in Ethernet Channel | Compliant |
| 3D Compatible | Compliant |
| Bandwidth | 18Gbps |
| Audio | Return channel |
| HDMI Version | HDMI 2.0 |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 2ft | 3ft | 4ft | 6ft | 8ft | 10ft | 12ft |
|---|---|---|---|---|---|---|---|
| 0.10 lbs | 0.10 lbs | 0.10 lbs | 0.15 lbs | 0.15 lbs | 0.20 lbs | 0.25 lbs | 0.30 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| HDMI-140-01.5UT | 1.5ft | 0.07 lb |
| HDMI-140-02UT | 2ft | 0.1 lb |
| HDMI-140-03UT | 3ft | 0.15 lb |
| HDMI-140-04UT | 4ft | 0.17 lb |
| HDMI-140-06UT | 6ft | 0.21 lb |
| HDMI-140-08UT | 8ft | 0.26 lb |
| HDMI-140-10UT | 10ft | 0.33 lb |
| HDMI-140-12UT | 12ft | 0.38 lb |
