Description

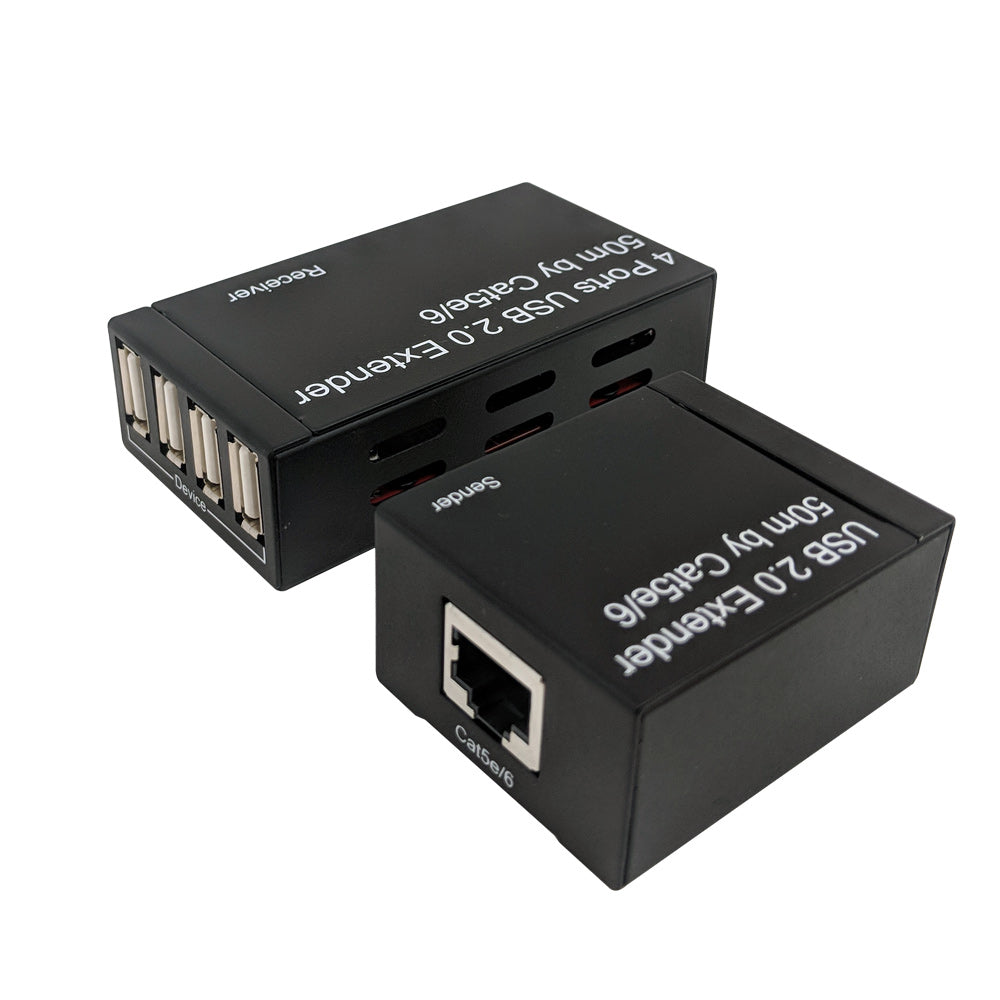

This USB extender allows you to extend four USB devices to 50m away from the host (computer) using one Cat5e/6 cable. It can be used to connect your USB camera, printer, webcam, keyboard, mouse or any other USB device to your computer or DVR. The extender is plug & play therefore no drivers are required.
Features:
- Extend up to 4 USB devices
- Compatible with USB 2.0
- Supports max transmits speed of 39MB/s
- Integrates 10/100Mbps Fast Ethernet MAC/PHY
- Compatible 100Base-TX and 10Base-T PMD level standards
- Embedded Ethernet 802.3/3u transceiver
- Supports MDI/MDIX auto crossover function (Auto-MDIX)
- Supports major Ethernet protocols TCP/IP
- This device works with Windows and Mac
- Low power consumption
| Physical Characteristics | |
|---|---|
| Distance | 50m Max. Over a CAT5e/6 Cable |
| Color | Black |
| Housing | Metal Enclosure |
| Storage temperature |
10℃ to +80℃ |
| Storage humidity |
5%to 90 % RH |
| Operating temperature |
0℃ to +50℃ |
| Operating Humidity |
10% to 85 % RH |
| Power | |
| Sender Voltage |
5V (USB self- powered) |
| Receiver Voltage |
5V/2A (External Power) |
| Connector(s) | |
| Sender | 1 - USB Type-B Female 1 -RJ45 Female |
| Receiver |
4 - USB Type-A Female |
| Performance | |
| Max transmission speed |
39MB/s |
| USB Standard |
USB2.0, USB1.1 |
| Environmental | |
| RoHS | Yes |
|
Compatibility |
|
| Windows | Yes |
| Mac | Yes |
| Linux OS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.04 lbs [0.47kg] |
| Contents | |
| Included in Package | 1 - Sender |
| 1 - Receiver | |
| 1 - DC5V 2A Power Adapter | |
| 1 - USB 2.0 A male to B male cable | |
| 1 - Manual | |
Spec Sheets
Product Weights
| SKU | Weight | |
| USB-EC50M | 3.3 lb |
