Description

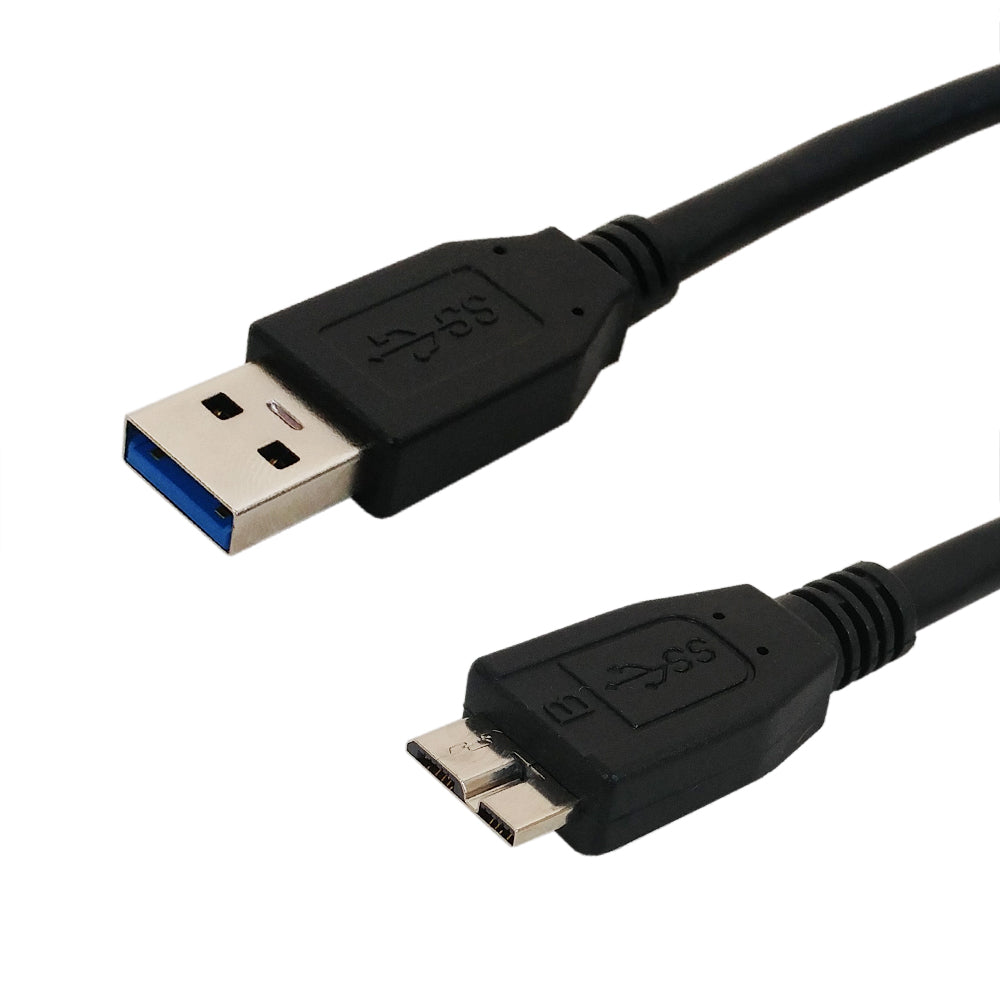

This USB 3.0 cable consists of a USB A male on one end and a USB Micro B male on the other end. It is typically used to charge or sync mobile devices such as cell phones and tablets to a PC/laptop USB charger.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 5.5 mm |
| Wire Gauge | 28AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 85% ALMG |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
| Cable Voltage Rating | 30V |
| Connector(s) | |
| Connector A | 9-pin USB 3.0 Type A Male |
| Connector B | 10-pin Micro-USB 3.0 Type B Male |
| Performance | |
| Rating | USB 3.0 SuperSpeed Compliant Cable |
| Speed | 5 Gbps Max |
| Compatibility | Backwards compatible with USB 3.0 and 2.0 |
| Approvals | |
| UL | Yes - Cable |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.15 lbs | 0.20 lbs | 0.35 lbs | 0.45 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| USB-303-03 | 3ft | 0.15 lb |
| USB-303-06 | 6ft | 0.21 lb |
| USB-303-10 | 10ft | 0.33 lb |
| USB-303-15 | 15ft | 0.5 lb |
