Description

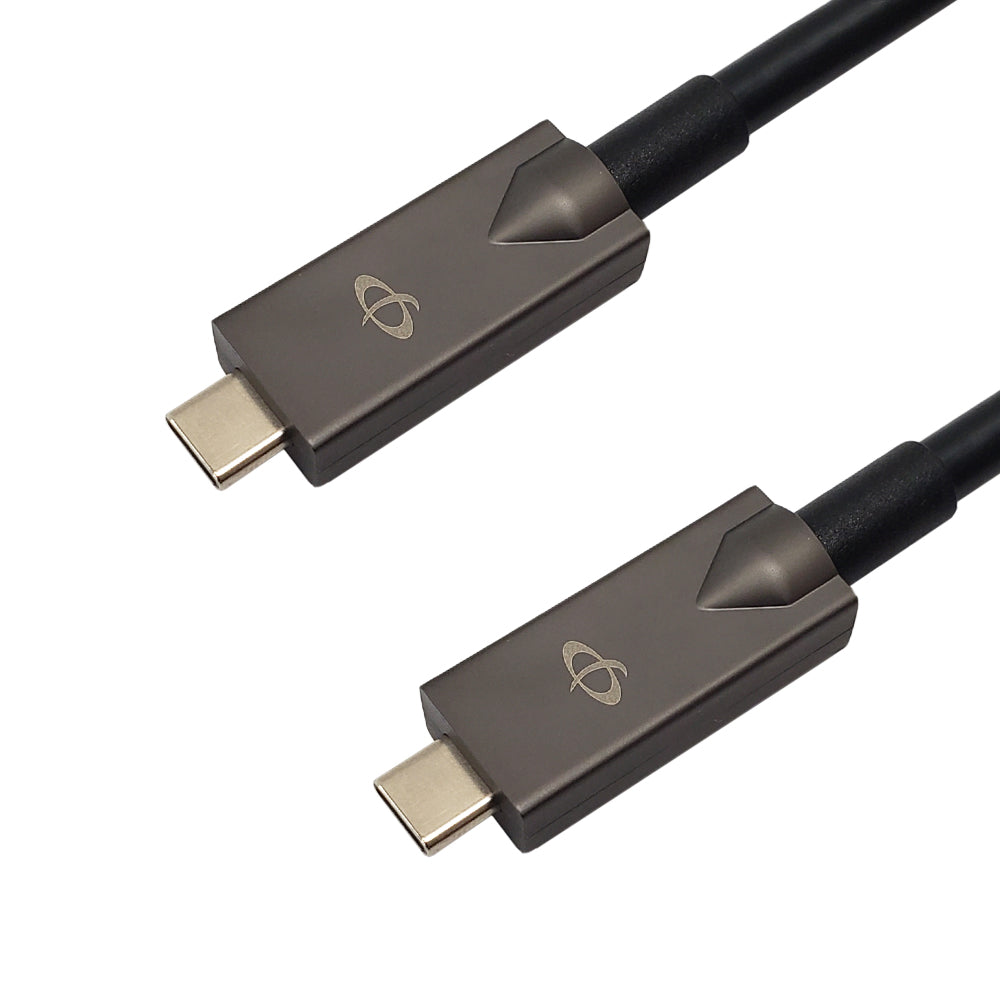

This active optical USB 3.1 cable consists of a USB type-C male on both ends. It is capable of transferring data at 10Gbps and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderboltā¢ 3 ports.
Features:
- Supports DP 2 lane 4K@30Hz video transmission
- Supports USB 3.1 Gen 2 10Gbps data transmission
- Backwards USB 2.0 & USB 1.1
- Support PD 60W (20V 3A) Power Delivery
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Jacket Rating | CMP |
| Strain Relief | Molded |
| Connectors | |
| Connector A | 9-pin USB 3.1 Gen 2 Type-C SuperSpeed Male |
| Connector B | 9-pin USB 3.1 Gen 2 Type-C SuperSpeed Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed ā Gen 2 |
| Speed | 10 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB (2.0 and 1.1) |
| Power | 3 Amp |
| Power Delivery | Supported, PD 60W (20V 3A) |
| Approvals | |
| CE | Compliant |
| FCC | Compliant |
| c(UL) | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Years Warranty |
| 5m | 7.5m | 10m |
|---|---|---|
| 0.75 lbs (0.34 kg) | 1.09 lbs (0.49 kg) | 2.64 lbs (1.2 kg) |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| USB-314AOC-5MPL | 5m | 0.2 lb |
| USB-314AOC-7.5MPL | 7.5m | 0.33 lb |
| USB-314AOC-10MPL | 10m | 0.33 lb |
