Description

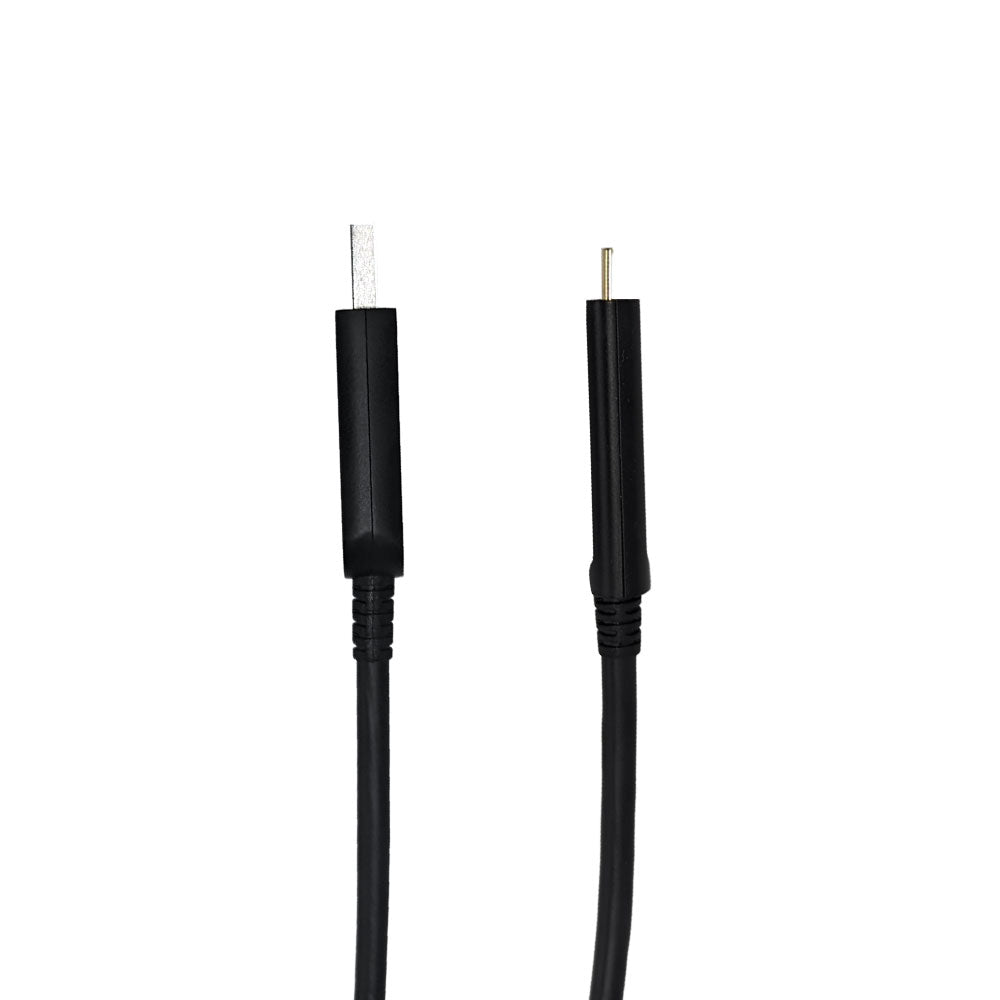

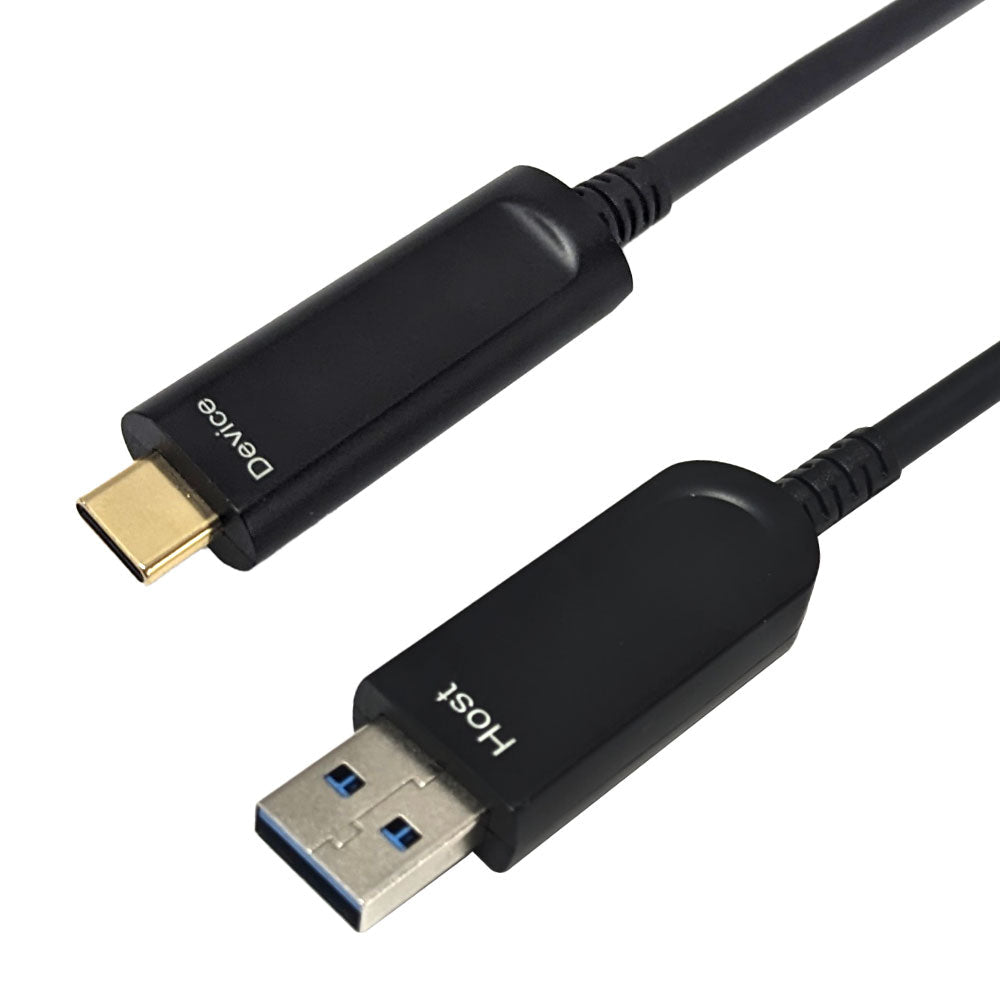

This active optical USB 3.1 cable consists of a USB type-C male on one end and a USB A male on the other. It is capable of transferring data at 10Gbps and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderboltā¢ 3 ports.
Features:
- No RF interference, stable in complex environments
- Supports USB 3.1 Gen 2 10Gbps data transmission
- 850nm VCSEL and PIN photodetector
- Backwards USB 2.0 & USB 1.1
| Physical Characteristics | |
|---|---|
| Length | 30M / 45M |
| Color |
Black |
| Fiber Wire | 2*OM3-850nm |
| Diameter | 4.8mm |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Jacket Rating | CMP |
| Strain Relief | Molded |
| Operating Temperature | -20āļ½+50 ā |
| Connectors | |
| Connector A | 9-pin USB 3.1 Gen 2 Type-C SuperSpeed Male |
| Connector B |
9-pin USB 3.1 Type-A SuperSpeed Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed - Gen 2 |
| Speed | 10 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB (2.0 and 1.1) |
| Power | 5.5V 90mA |
| Power Consumption | ā¤0.5W |
| Tensile strength | 200N |
| Crush resistance | 100N |
|
Minimum bending radius |
20mm |
| Minimum bending radius (dynamic) | 20000 cycle |
| Wavelength | 850nm |
| Approvals | |
| CE | Compliant |
| FCC | Compliant |
| c(UL) | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| 30m | 45m |
|---|---|
| 3.38 lbs (1.53 kg) | 5.13 lbs (2.32 kg) |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| USB-328AOC-30MPL | 30m | 0.95 lb |
| USB-328AOC-45MPL | 45m | 1.4 lb |
