Description

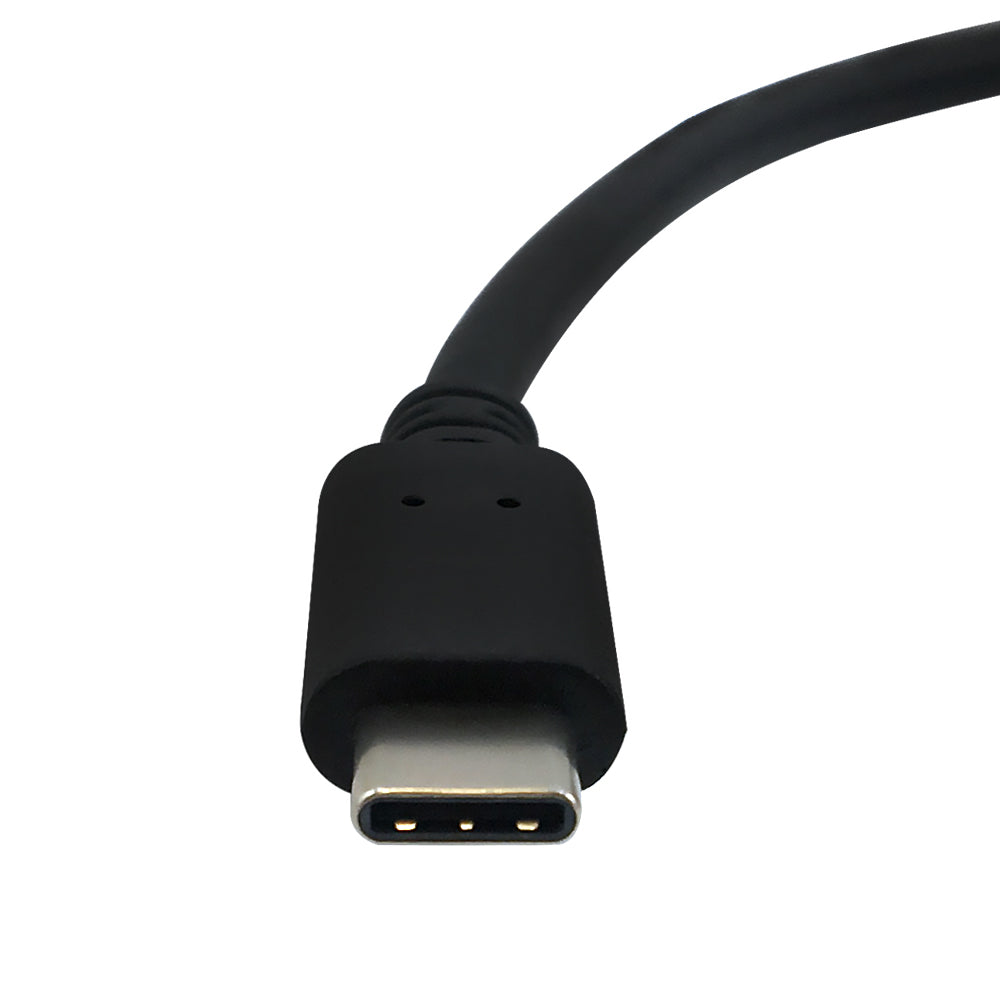

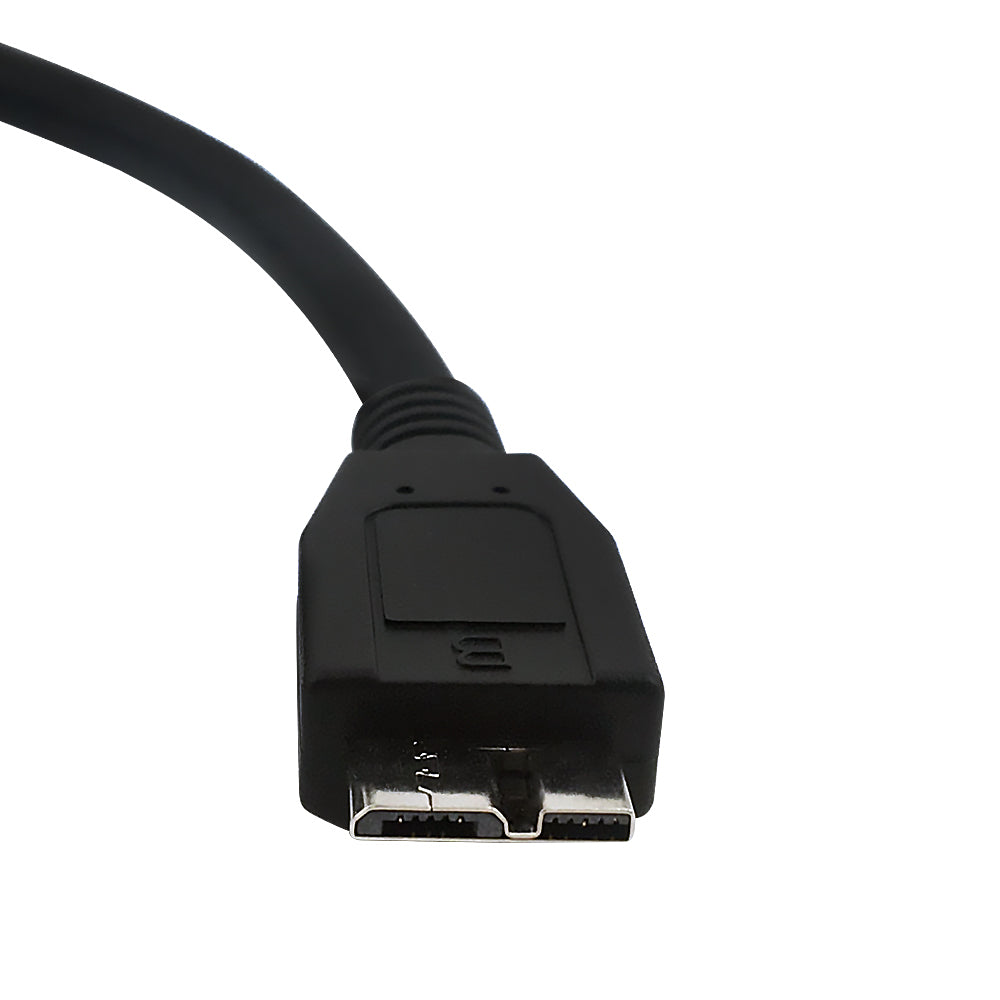

This USB 3.1 cable consists of a USB type-C male on one end and a USB Micro-B male on the other end. It is capable of transferring data at 10Gbps and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt 3 ports.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 30AWG (data) / 24AWG (power) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
| Connector(s) | |
| Connector A | 9-pin USB 3.1 Type-C SuperSpeed Male |
| Connector B | 9-pin USB 3.1 Micro-B SuperSpeed Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed Gen 2 |
| Speed | 10 Gbps |
| Compatibility | Backwards Compatible Previous Generation USB |
| Power | 3 Amp |
| Support | DisplayPort, 4-Channel Audio, Thunderbolt 3, PCI Express |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft |
|---|---|
| 0.06 lbs | 0.12 lbs |
Spec Sheets
Product Weights
the weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| USB-354-01.5 | 1.5ft | 0.07 lb |
| USB-354-03 | 3ft | 0.15 lb |
