Description

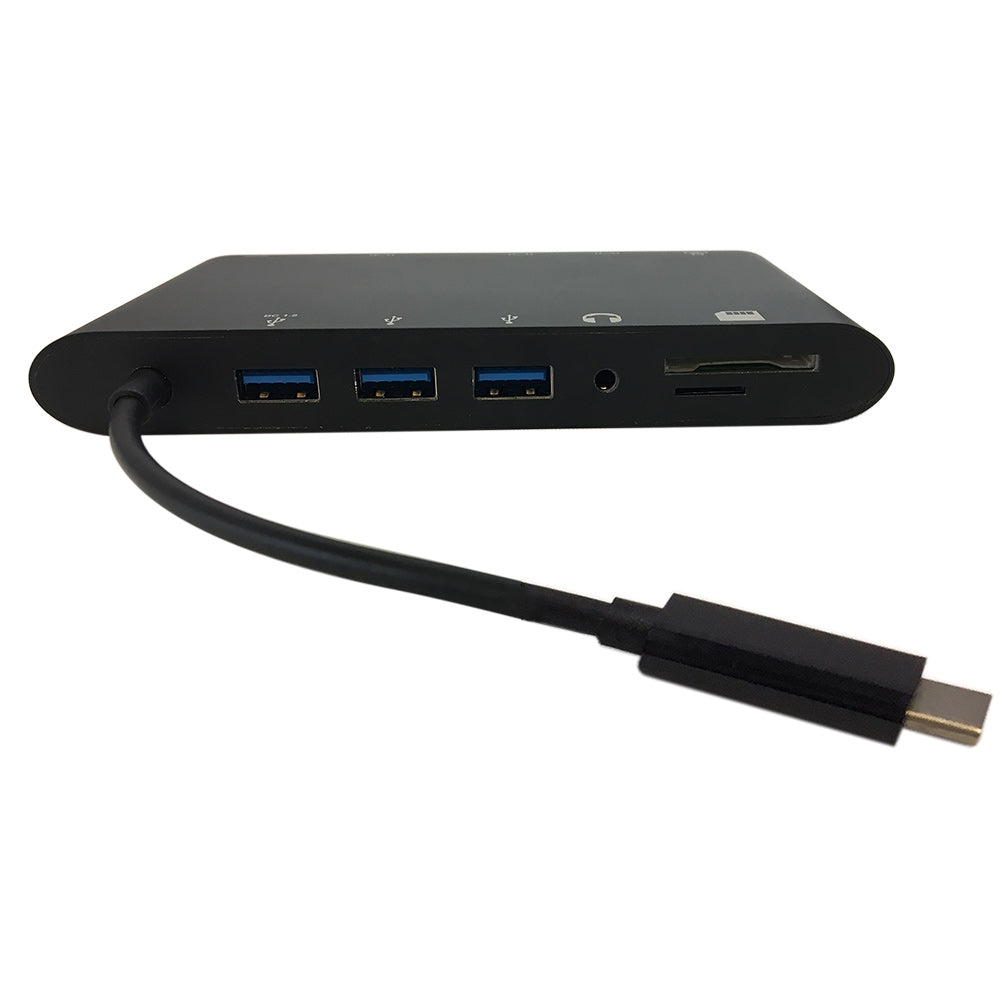

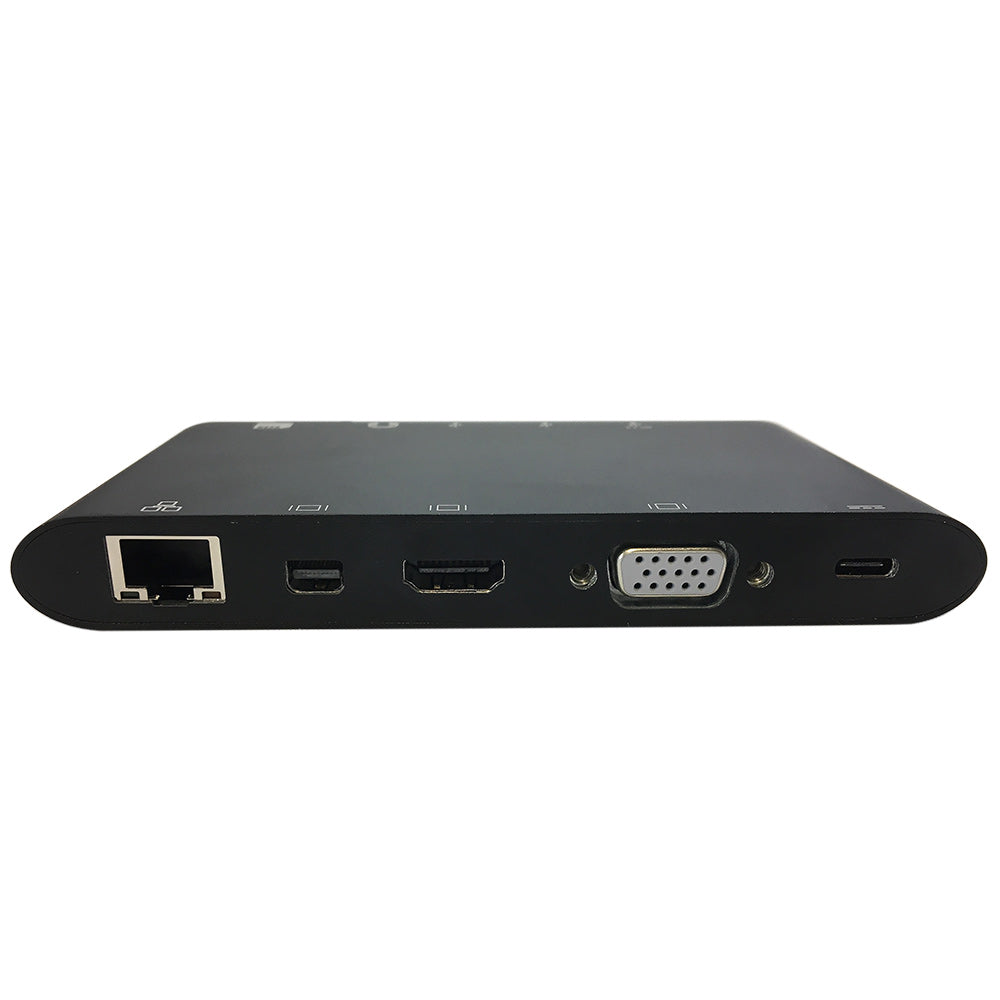

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male on one end and a HDMI female, Mini-DisplayPort, USB 3.1 Type-C female, RJ45 female, VGA female, 3x USB 3.0female, 3.5mm stereo female, SD card slot and a Micro SD card slot on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
*Not intended for uses with multiple monitors. Additional monitors should be connected through the USB Type-C port of the dockings station.
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| Mini DisplayPort Female | |
| USB 3.1 Type-C Female | |
| RJ45 Female | |
| VGA Female | |
| 3x USB 3.0 Female | |
| 3.5mm Stereo Female | |
| SD and Micro SD card slots | |
| Performance | |
| HDMI Resolution | Up to 1080p |
| Mini DisplayPort Resolution | Up to 2560x1440 |
| VGA Resolution | Up to 1080p |
| USB 3.0 Ports | 3Devices Simultaneously with Max Total Output of 900mAH and Data Speed up to5Gbps |
| Stereo Port | Supports Both Microphone and Headphone |
| Ethernet | 10/100/1000Mbps Bandwidth |
| Compatibility | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Certifications | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.44 lbs [0.19kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| AD-UC-DS01 | 0.44 lb |
