Description
Overview

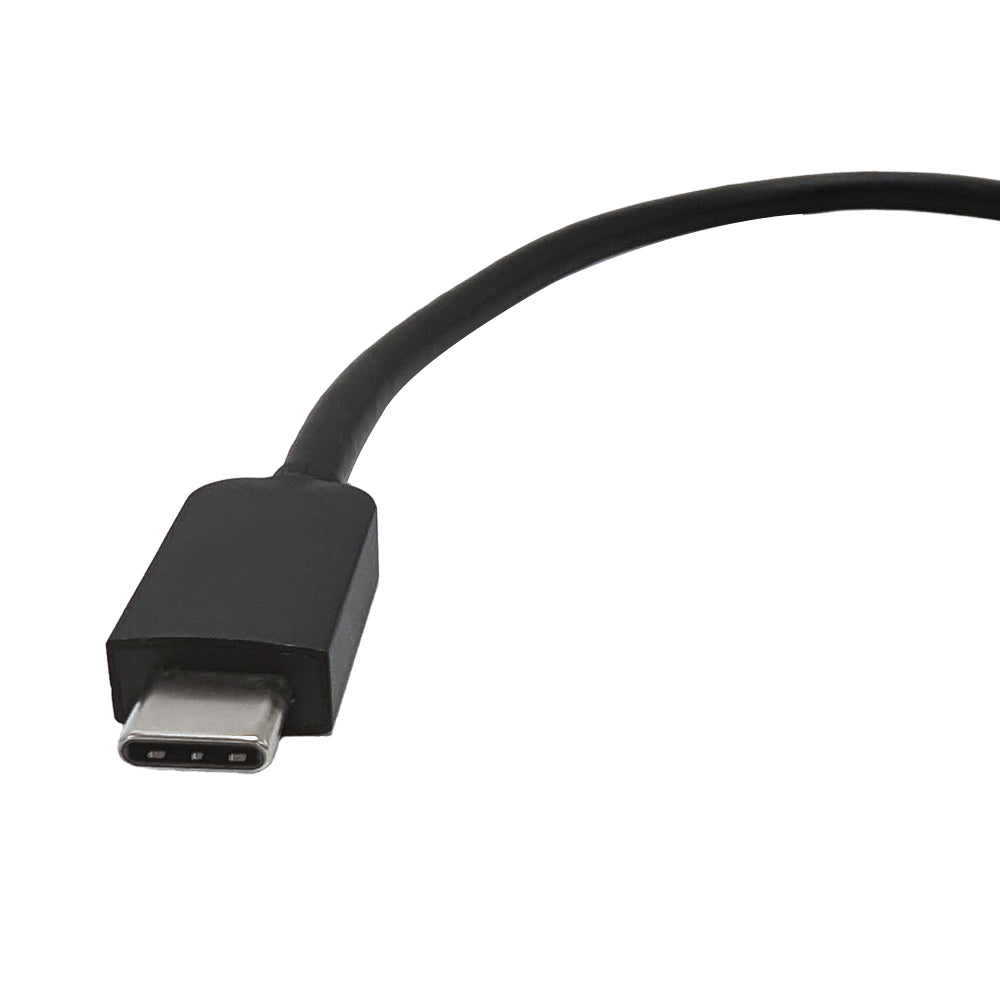

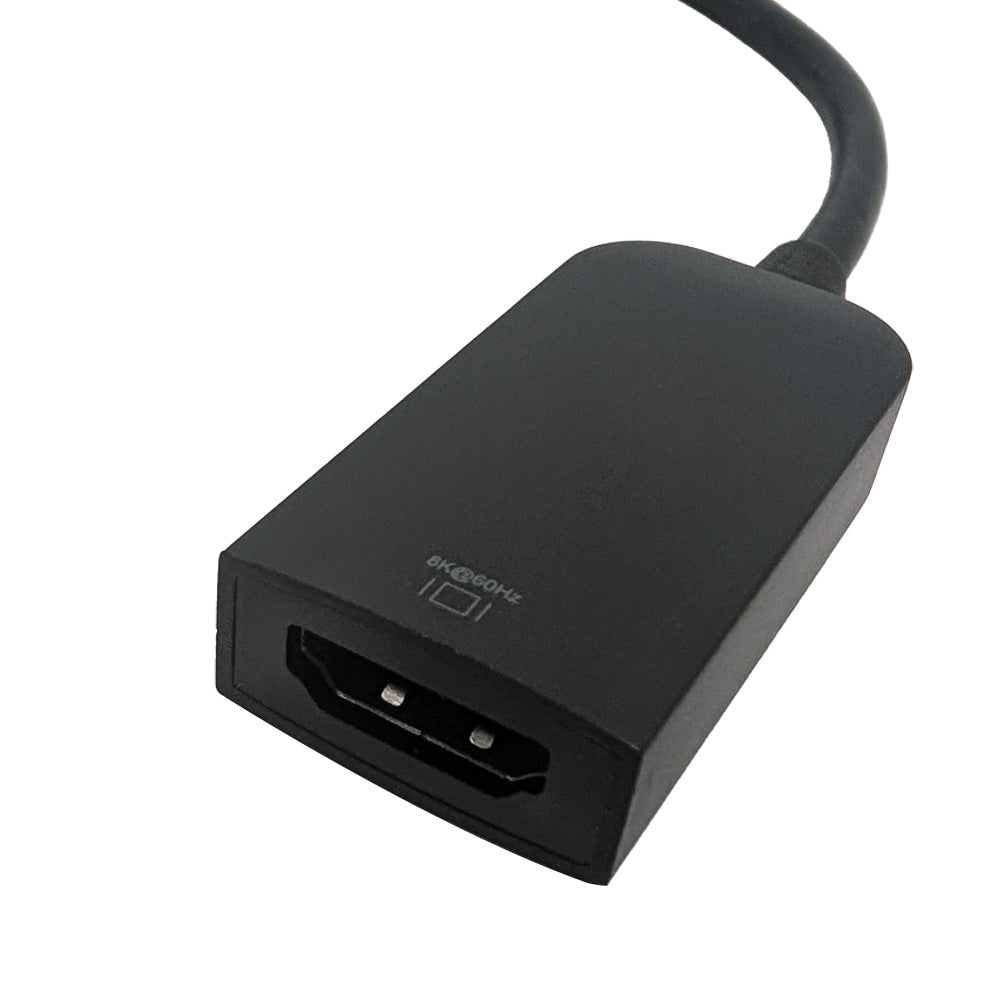

The USB Type-C to HDMI adapter consists of a USB 3.1 Type-C male on one end and a HDMI female on the other end. It allows you to connect an extra display from your laptop's USB Type-C port. This adapter provides high throughput using the USB 3.1 bus and supports high definition monitors. The adapter can either extend or mirror your source. It can also be used to connect a Type-C device such as a laptop, to an HDMI monitor or TV. It can work on all Type-C and Thunderbolt 3 hosts that support DP1.4 Alt mode.
|
|
High Performance and Quality Video OutputThe HDMI output provides a simple Plug & Play connection to displays with an Ultra HD 8K (7680×4320)@60Hz resolution. DisplayPort Alt ModeThis adapter works on all Type-C and HDMI hosts that support DP1.4 Alt mode. |
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Size(WxLxH) | 43.7x22x10.5(mm) |
| Operating Temperature | 0℃ to +45℃ |
| Storage Temperature | -10℃ to +70℃ |
| Operating Humidity | 10% to 90 % RH (no condensation) |
| Storage Humidity | 10% to 90 % RH (no condensation) |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| Performance | |
| Resolution | Up to 8K (7680×4320) @60Hz |
| Compatibility | Compliant with USB 3.1 |
| Backward Compatible with USB 3.0 and USB 2.0 | |
| Power Source | USB Bus Power |
| Supports | DisplayPort 1.4 Alt mode Dynamic HDR10+ HPD ,DSC 1.1/1.2a Decoder Content protection of HDCP 2.3/1.4 8/10/12 bit Color Depth RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 LPCM audio format with max audio sample rate up to 8-channel 192KHz HBR audio format up to 2-channel 768KHz 3D audio format up to 16-channel 96KHz |
| Power | |
| Working Voltage | 4.9-5.2V |
| Working Current | 100mA-200mA |
| Standby Power Consumption | ≤0.1W |
| Certifications | |
| FCC | Compliant |
| CE | Compliant |
| System Requirements | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.06 lbs [0.02kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| AD-UC-HD03 | 0.06 lb |
