Description

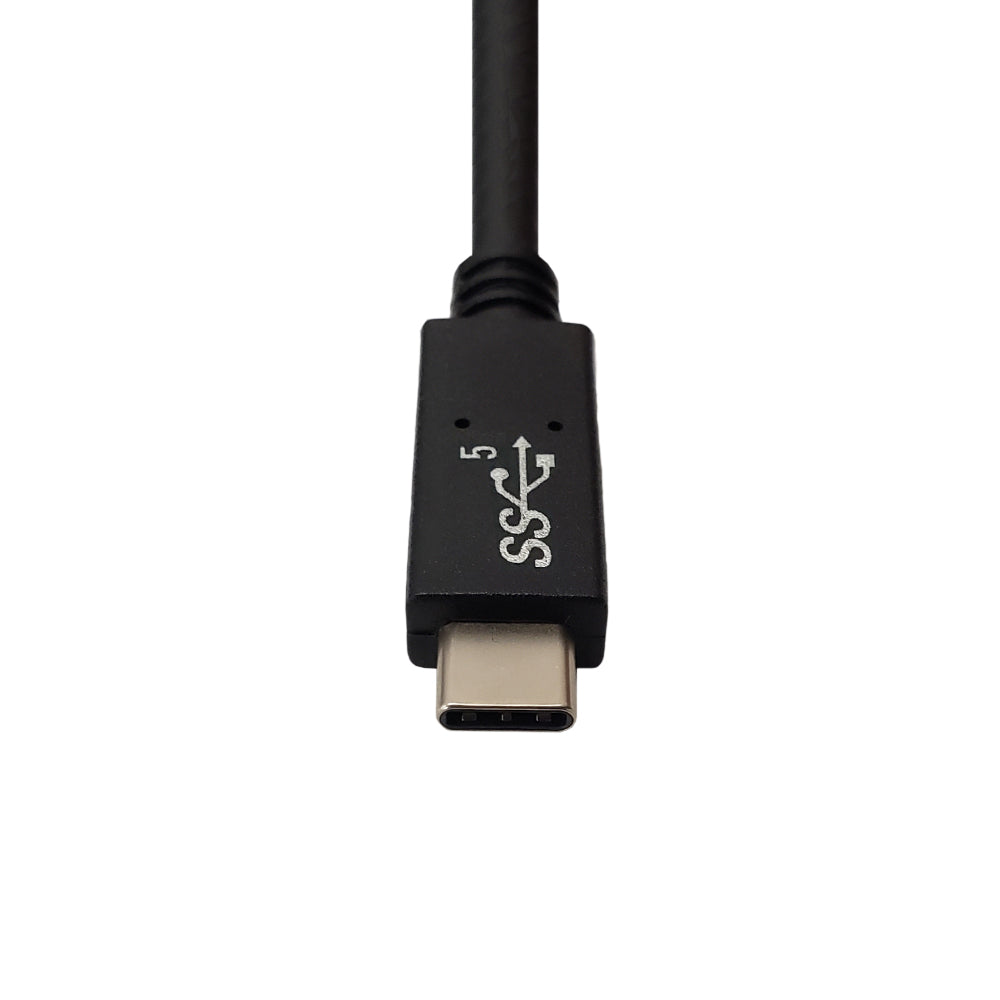

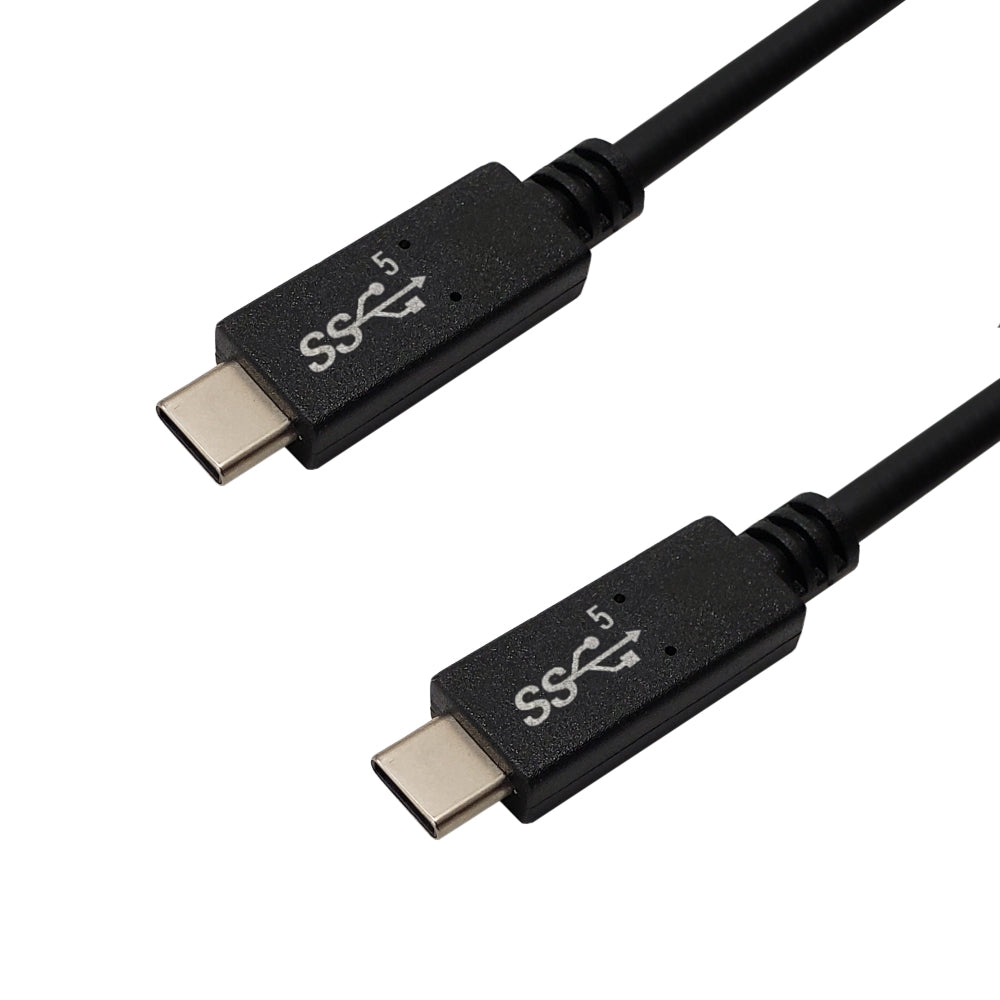

This USB 3.2 cable consists of a USB type-C male on both ends. It is capable of transferring data at 10Gbps/5Gbps and is typically used to connect USB 3.2 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.2 is backwards compatible with previous generation USB devices and is also compatible with Thunderboltā¢ 3 ports.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel Plated |
| Contact Plating | Gold Plated |
| Cable Diameter | 5.2 mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Strain Relief | Molded |
| Connector(s) | |
| Connector A | 9-pin USB 3.1 Type-C SuperSpeed Male |
| Connector B | 9-pin USB 3.1 Type-C SuperSpeed Male |
| Performance | |
| Rating | USB 3.1 SuperSpeed |
| Speed | 10 Gbps (0.5m, 1m) 5 Gbps (2m) |
| Compatibility |
Backwards Compatible Previous Generation USB Type C |
| Power | Max. 5 Amp, 20V, 100W (0.5m, 1m) Max. 3 Amp, 20V, 60W (2m) |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 0.5m | 1m | 2m |
|---|---|---|
| 0.06 lbs | 0.10 lbs | 0.17 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| USB-316-2M | 2m (5G 3A) | 0.1 lb |
| USB-316-1M | 1m (10G 5A) | 0.07 lb |
| USB-316-0.5M | 0.5m (10G 5A) | 0.05 lb |
