Description
Overview

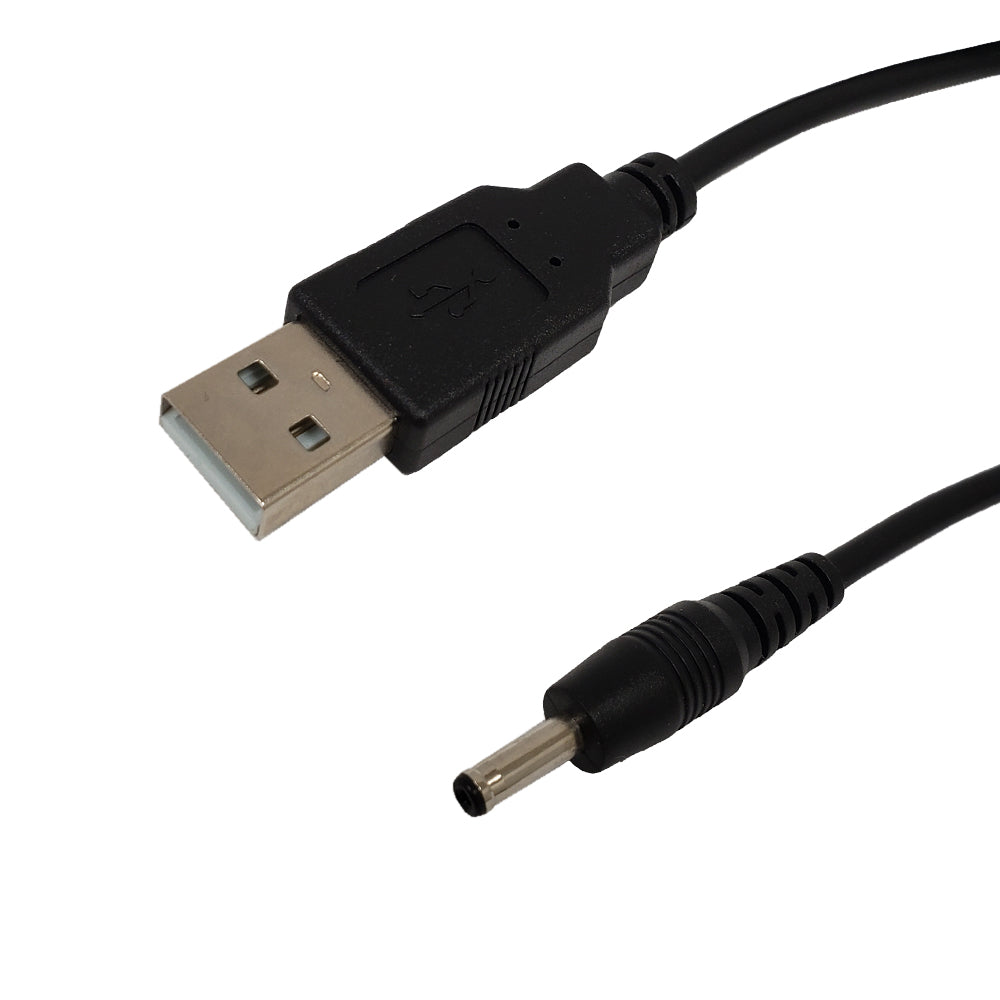

This power cable consists of a USB A male connector on one end and a 3.5mm x 1.35mm male DC connector on the other end. It is typically used to supply power to 5V devices from a USB port rather than a AC/DC transformer.
|
|
Very Convenient in Certain SituationsTurn a USB A male port into a power port in order to supply power to devices. For example, you can use your TV or surge protector with USB ports to power a device such as a switch, splitter or extender. Another option would be using the USB port on your computer to power peripherals like an external drive.
|
Application
Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Color | Black | |||
| Jacket Material | PVC | |||
| Wire Gauge | 24 AWG - DCU-35135B-01 28 AWG - DCU-35135B-03/06/10 |
|||
| Connector Plating | Nickel | |||
| Power Rating | 18W Maximum | |||
| Voltage Rating | 12VDC Maximum | |||
| Amperage Rating | 3Amp Maximum - DCU-35135B-01 1.5Amp Maximum - DCU-35135B-03/06/10 |
|||
| Pinout |
|
|||
| Connector(s) | ||||
| Connector A | 1 - USB A Male | |||
| Connector B | 1 - 3.5mm x 1.35mm DC Male | |||
| Environmental | ||||
| RoHS | Compliant | |||
| Package Information | ||||
| Package Quantity | 1 | |||
| Contents | ||||
| Included in Package | 1 - Cable | |||
| 1ft | 3ft | 6ft | 10ft |
|---|---|---|---|
| 0.04 lbs | 0.05 lbs | 0.08 lbs | 0.11 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| DCU-35135B-01 | 1ft | 0.07 lb |
| DCU-35135-03 | 3ft | 0.15 lb |
| DCU-35135-06 | 6ft | 0.21 lb |
| DCU-35135-10 | 10ft | 0.33 lb |
