Description
Overview

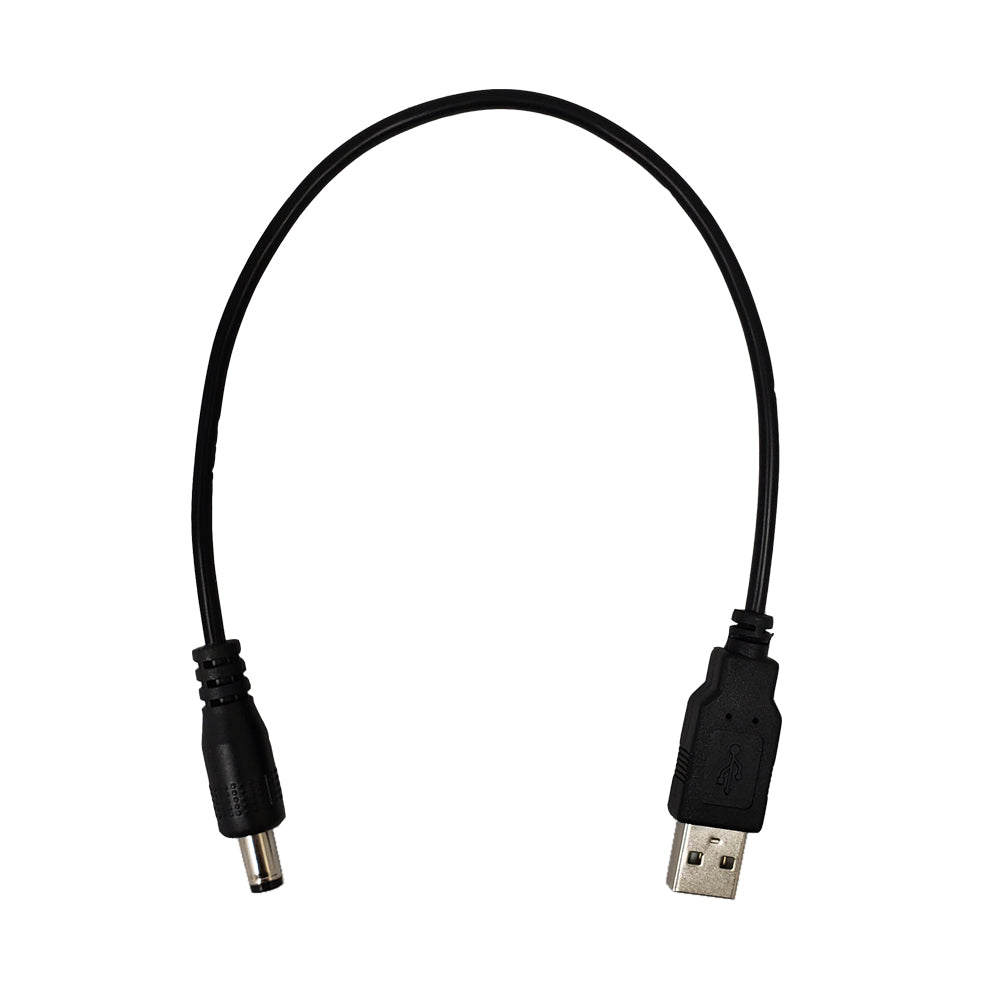

This power cable consists of a USB A male connector on one end and a 5.5mm x 2.1mm male DC connector on the other end. It is typically used to supply power to 5V devices from a USB port rather than a AC/DC transformer.
|
|
Very Convenient in Certain SituationsTurn a USB A male port into a power port in order to supply power to devices. For example, you can use your TV or surge protector with USB ports to power a device such as a switch, splitter or extender. Another option would be using the USB port on your computer to power peripherals like an external drive.
|
Application
Specifications
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Color | Black | ||||
| Jacket Material | PVC | ||||
| Connector Plating | Nickel | ||||
| Wire Gauge | 28AWG | ||||
| Power Rating | 18W Maximum | ||||
| Voltage Rating | 12VDC Maximum | ||||
| Amperage Rating | 1.5Amp Maximum | ||||
| Pinout |
|
||||
| Connector(s) | |||||
| Connector A | 1 - USB A Male | ||||
| Connector B | 1 - 5.5mm x 2.1mm DC Male | ||||
| Environmental | |||||
| RoHS | Compliant | ||||
| Package Information | |||||
| Package Quantity | 1 | ||||
| Contents | |||||
| Included in Package | 1 - Cable | ||||
| 1ft | 3ft | 6ft | 10ft |
|---|---|---|---|
| 0.06 lbs | 0.07 lbs | 0.1 lbs | 0.13 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| DCU-5521-01 | 1ft | 0.07 lb |
| DCU-5521-03 | 3ft | 0.15 lb |
| DCU-5521-06 | 6ft | 0.21 lb |
| DCU-5521-10 | 10ft | 0.33 lb |
