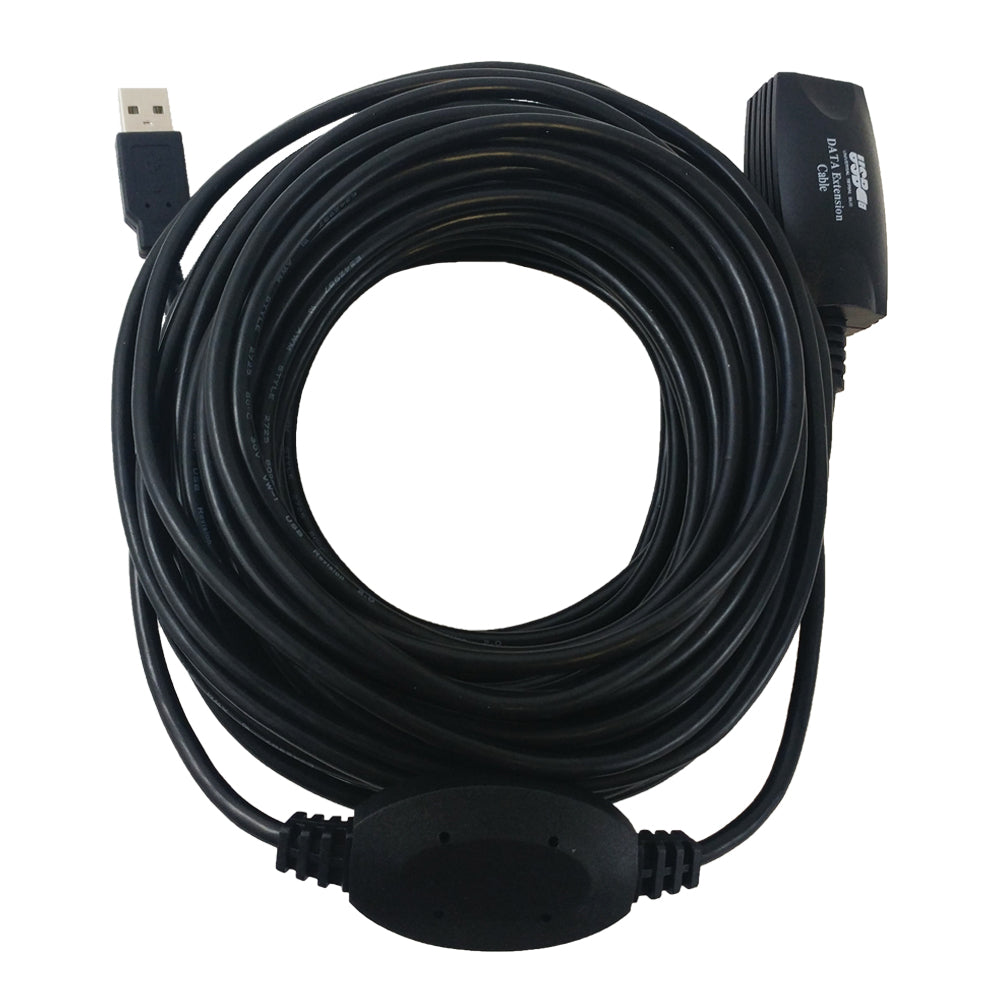

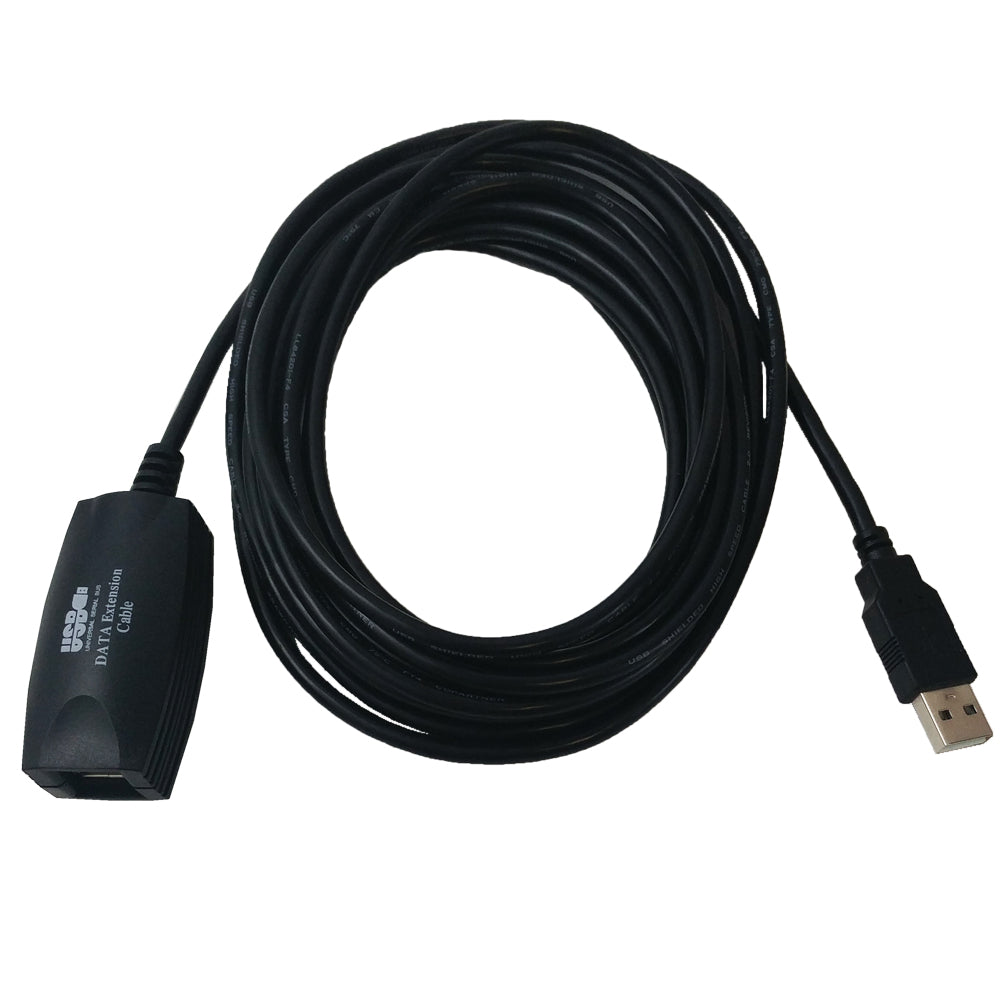

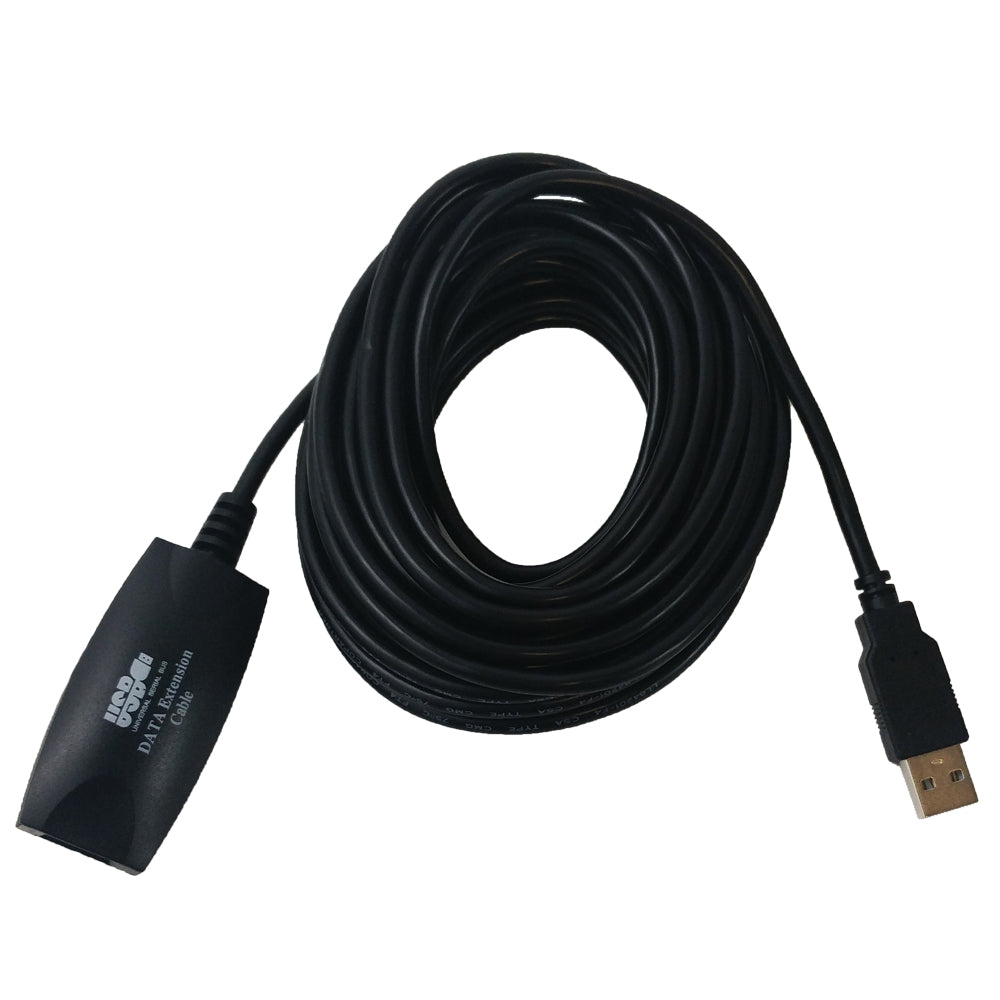

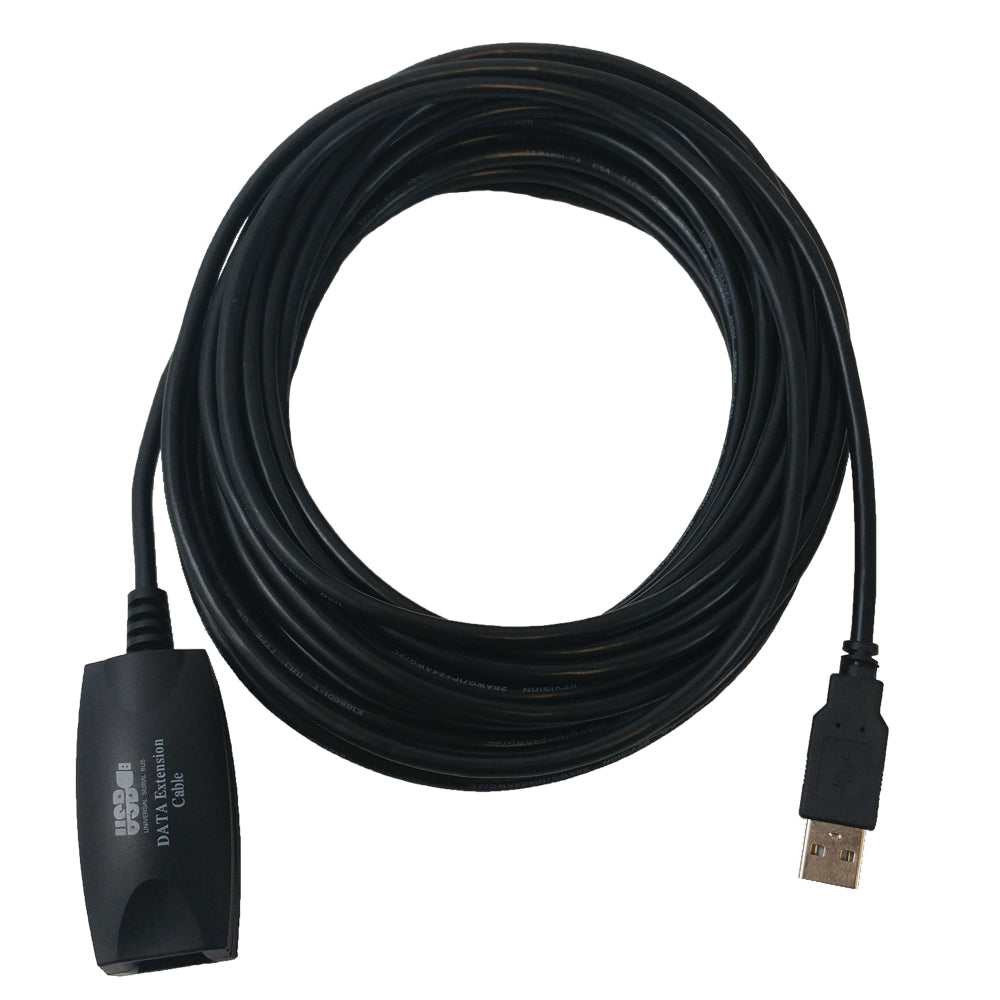

This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 2.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.
This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.
NOTE: Only the 16ft cable supports cascading with 1x1 connection.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Diameter | 4.5 mm |
| Wire Gauge | 28AWG Data, 24AWG Power |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMG, FT4 Riser |
| Cable Shielding | 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid |
| Strain Relief | Molded PVC |
| Temperature Rating | 75℃ |
| Connector(s) | |
| Connector A | USB 2.0 Type A Hi-Speed Male |
| Connector B | USB 2.0 Type A Hi-Speed Female |
| Repeater (USB-E50) | Located directly in middle of cable - 25ft from either end |
| Performance | |
| Rating | USB 2.0 Hi-Speed Compliant Cable |
| Speed | 480 Mbps |
| Compatibility | |
| Windows | Windows 98, ME 2000/XP, Vista, 7, 8, 10 |
| Apple Mac | OX 9 and OS X |
| Linux, Unix | Yes |
| Approvals | |
| UL | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty |
3-Years Limited Warranty |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on part number(s) USB-E3xx to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| USB-E16 | 16ft | 0.57 lb |
| USB-E25 | 25ft | 0.77 lb |
| USB-E35 | 35ft | 1.1 lb |
| USB-E50 | 50ft | 1.55 lb |
