Overview

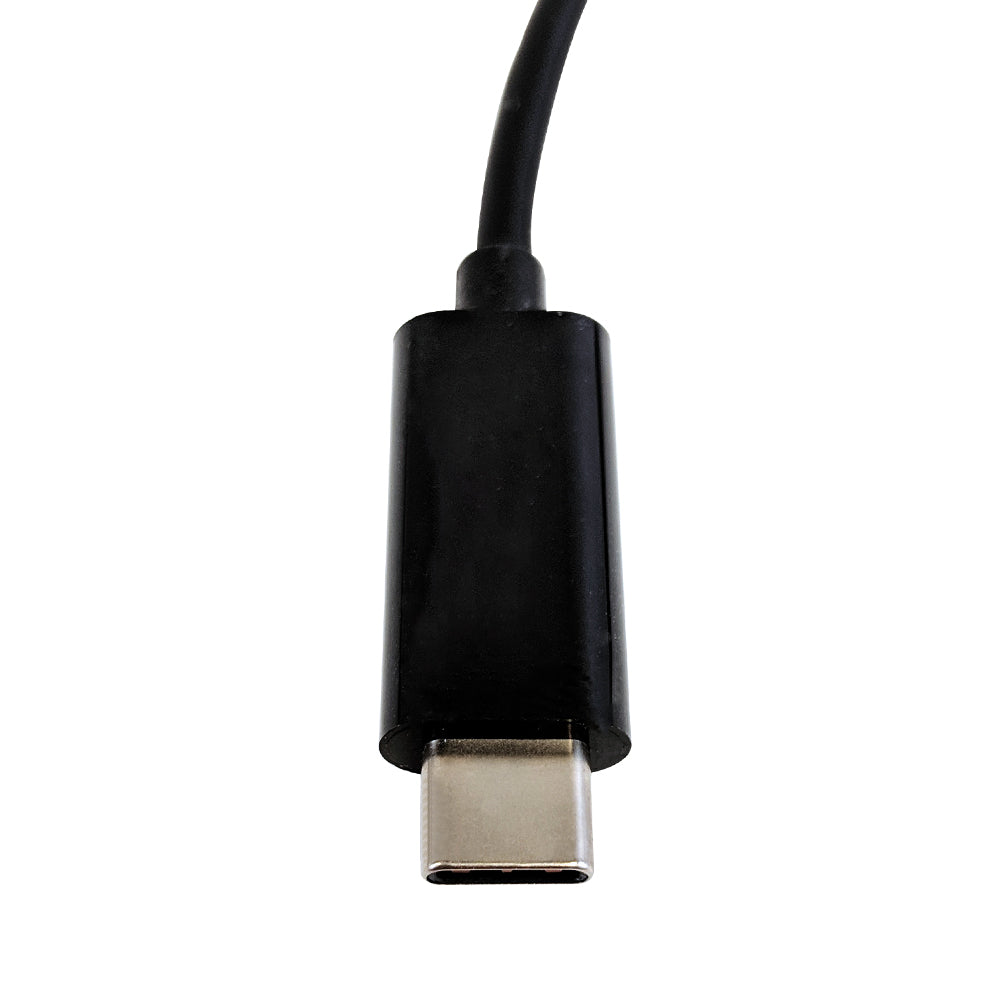

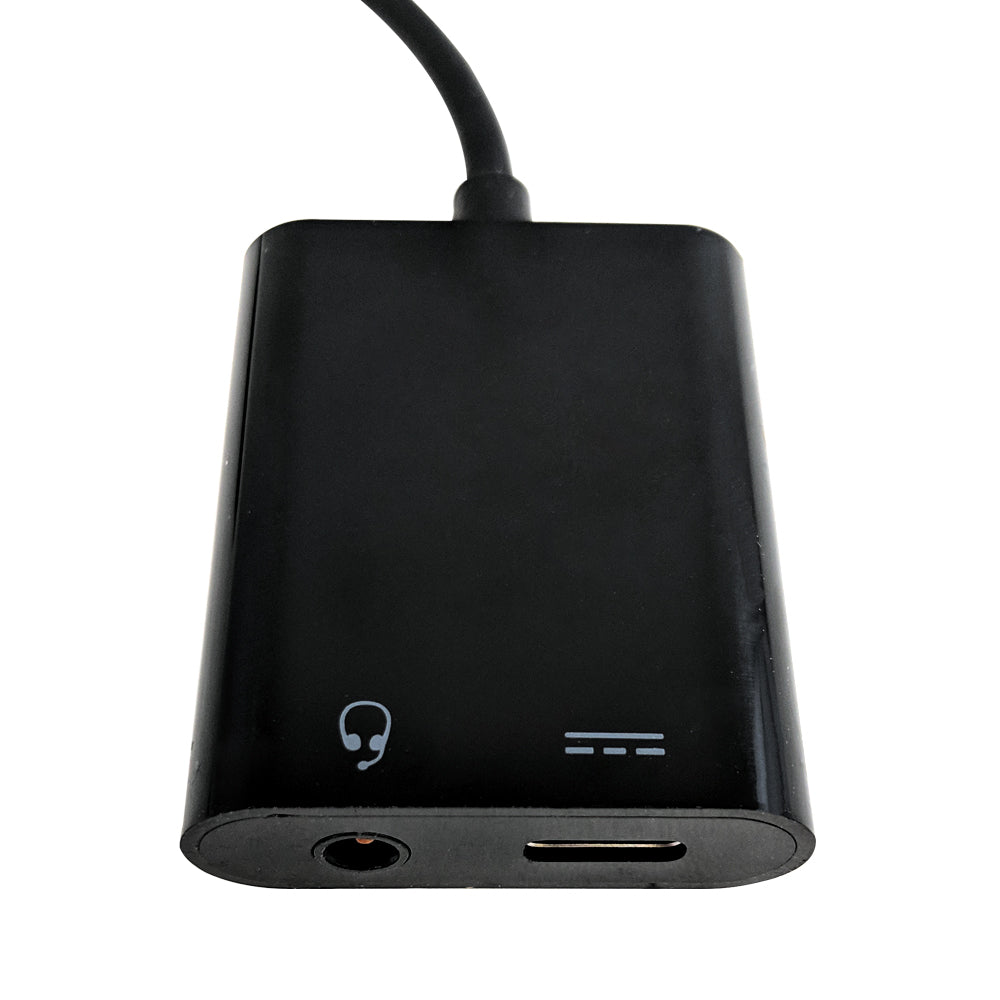

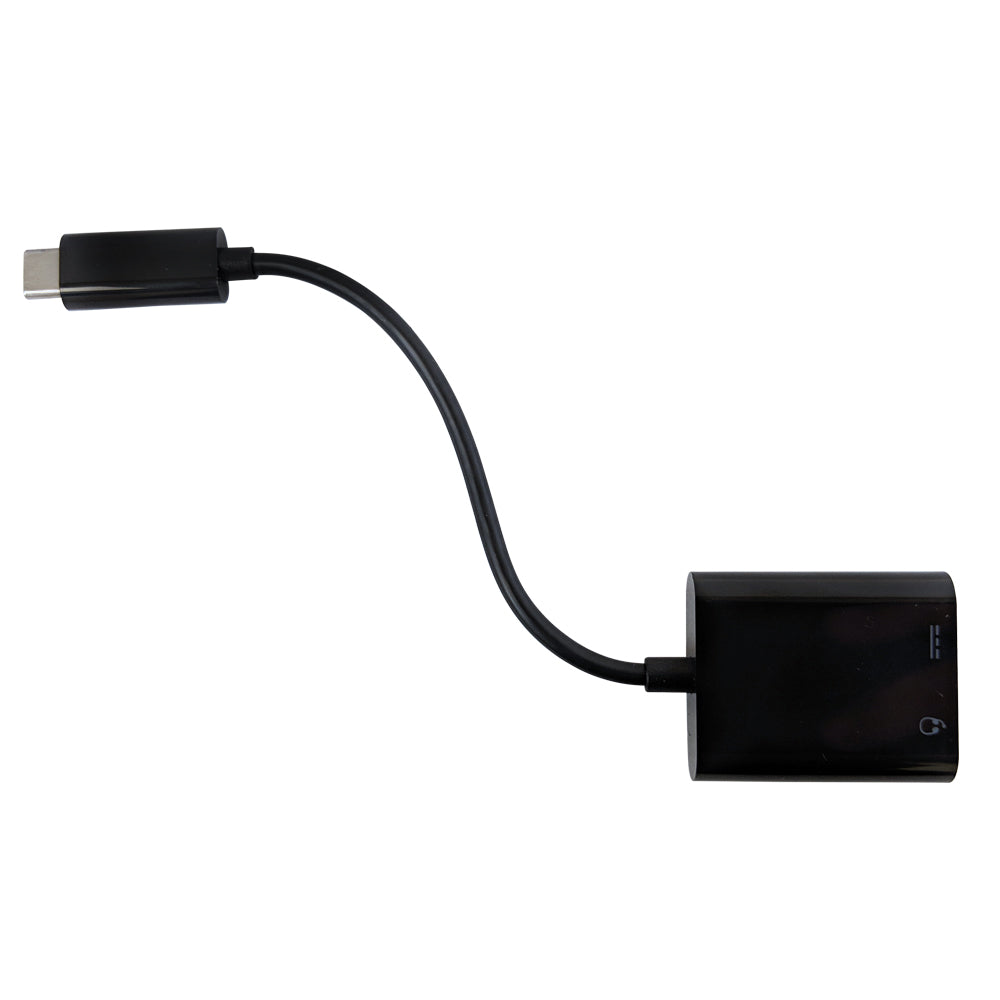

This USB-C to 3.5mm adapter consists of a USB 3.1 Type-C male on one end and a 3.5mm 4-position female plus a USB Type-C female on the other end. It allows you to connect headphones/microphone to a USB Type-C device such as a laptop or cell phone while using the Type-C female port for charging at the same time.
|
|
Compatible for Newer Type-C DevicesNewer devices often do not come with a 3.5mm female port. This adapter connects traditional 3.5mm headphones and/or microphone to Type-C compatible cellphones or laptops, while still allowing you to utile the Type-C female port for charging. High Performance Audio and PD ChargingThis adapter supports digital high-resolution audio, has audio output of 100dB SNR and microphone input of 94dB SNR. It also supports Power Delivery charging with power up to 100 watts.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 3 inches |
| Color | Black |
| Material | ABS |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B |
3.5mm Stereo Female (4-Pole) |
| Performance | |
| Type-C Female | Supports Power Delivery Charging with Power up to 100W (20V/5A) |
| Audio Output | Stereo Digital-to-Analog Converter with 100dB SNR |
| Microphone Input | Stereo Analog-to-Digital Converter with 94dB SNR |
| Supports |
Digital Hi-Resolution Audio |
| Auto-Switch | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01kg] |
