Overview

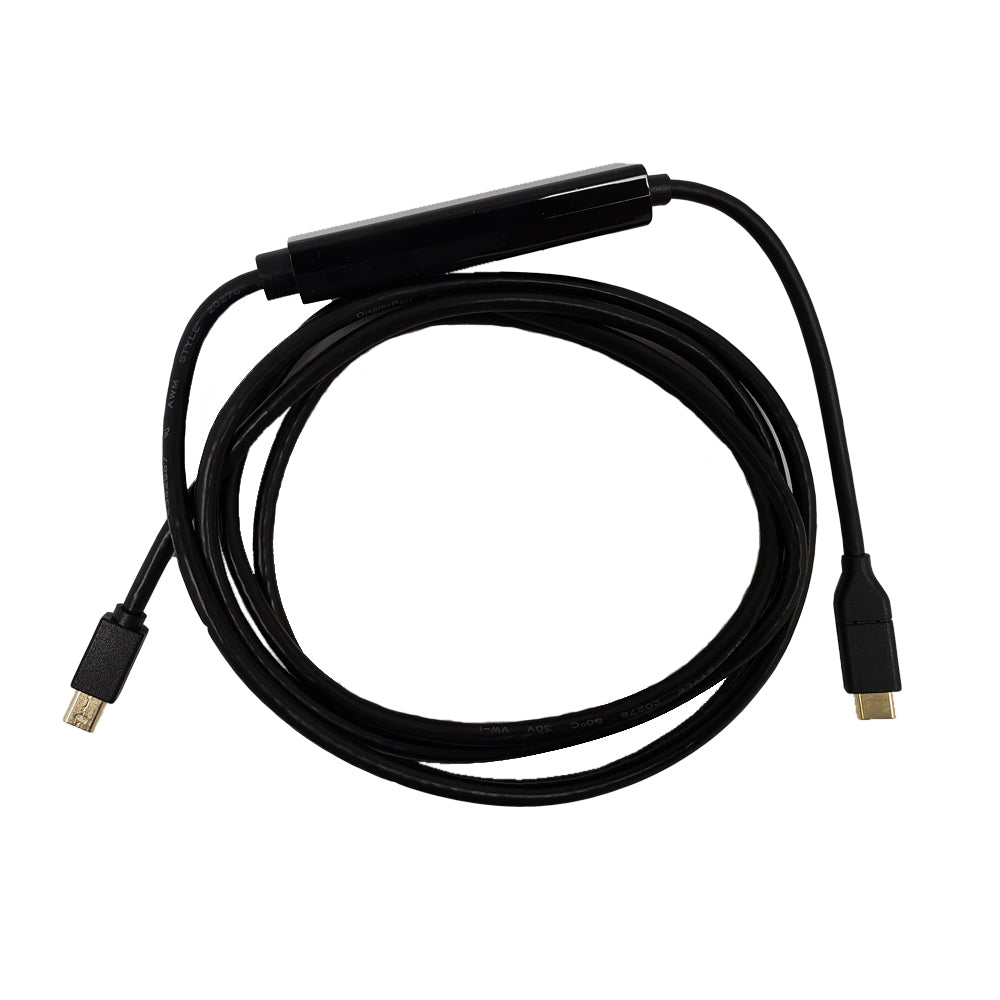

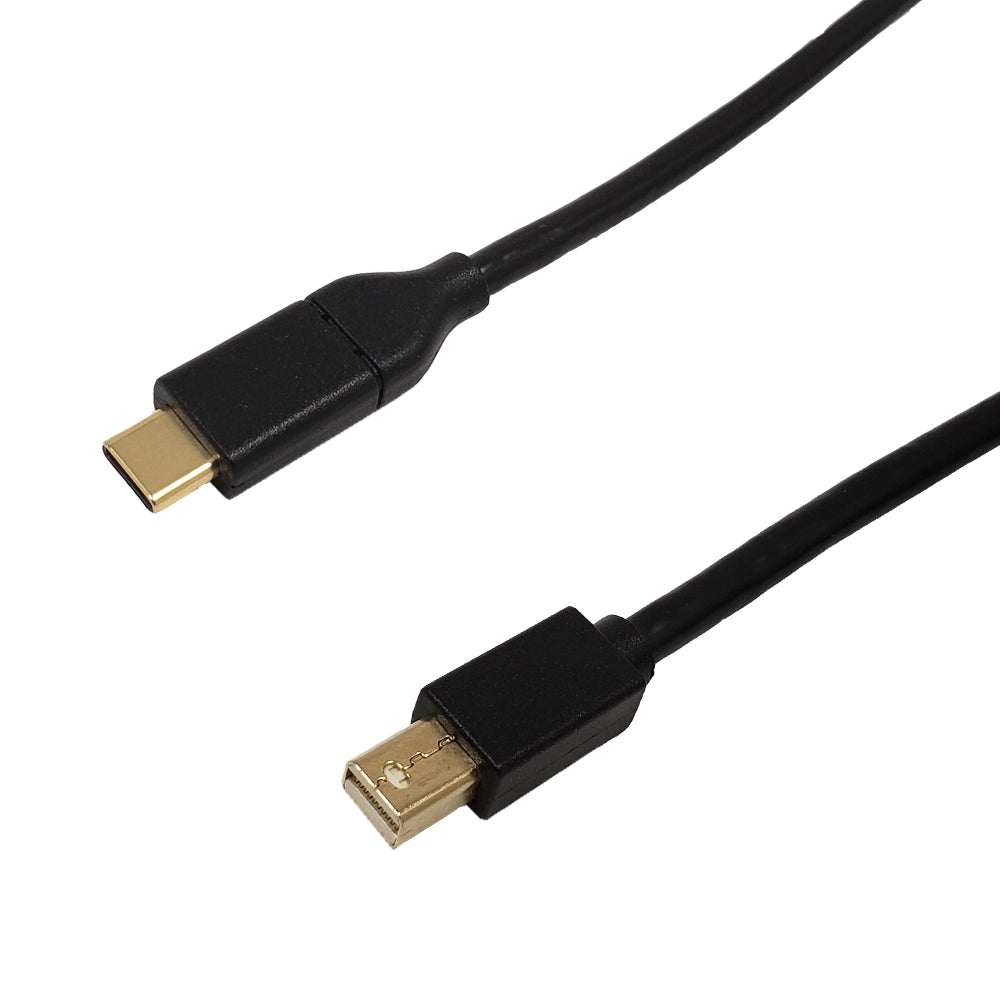

This Type-C male to Mini DisplayPort male cable supports resolutions of Ultra HD 4K x 2K at 60Hz. It is typically used to connect a Type-C source (PC, Laptop, Mac Computer, Mac Laptop, etc.) to a Mini DisplayPort display (monitors, etc.). This cable is uni-directional, therefore it will only work from a Type-C source to a Mini DisplayPort display and not in the reverse direction.
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 4K x 2K (4096 x 2160) @ 60Hz. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Works Like an External Video CardThis cable can be used for various input devices - for example, connecting your PC to a monitor, in order to extend your PC, laptop, Mac computer or MacBook onto another display.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge | 28 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Cable Type | Active |
| Temperature Rating | 45ĀŗC |
| Connectors | |
| Connector A | Type-C Male |
| Connector B | Mini DisplayPort Male |
| Performance | |
| Bandwidth | 18 Gbps |
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz |
| 3D Support | No |
| DP Version | v1.2 |
| Type-C Version | v3.0 |
| Approvals | |
| c(UL) | Approved Cable |
| Certifications | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty | |
| Warranty | Lifetime Limited |
| 3ft | 6ft |
|---|---|
| 0.12 lbs | 0.19 lbs |
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| UC-MDP-03 | 3ft | 0.15 lb |
| UC-MDP-06 | 6ft | 0.21 lb |
