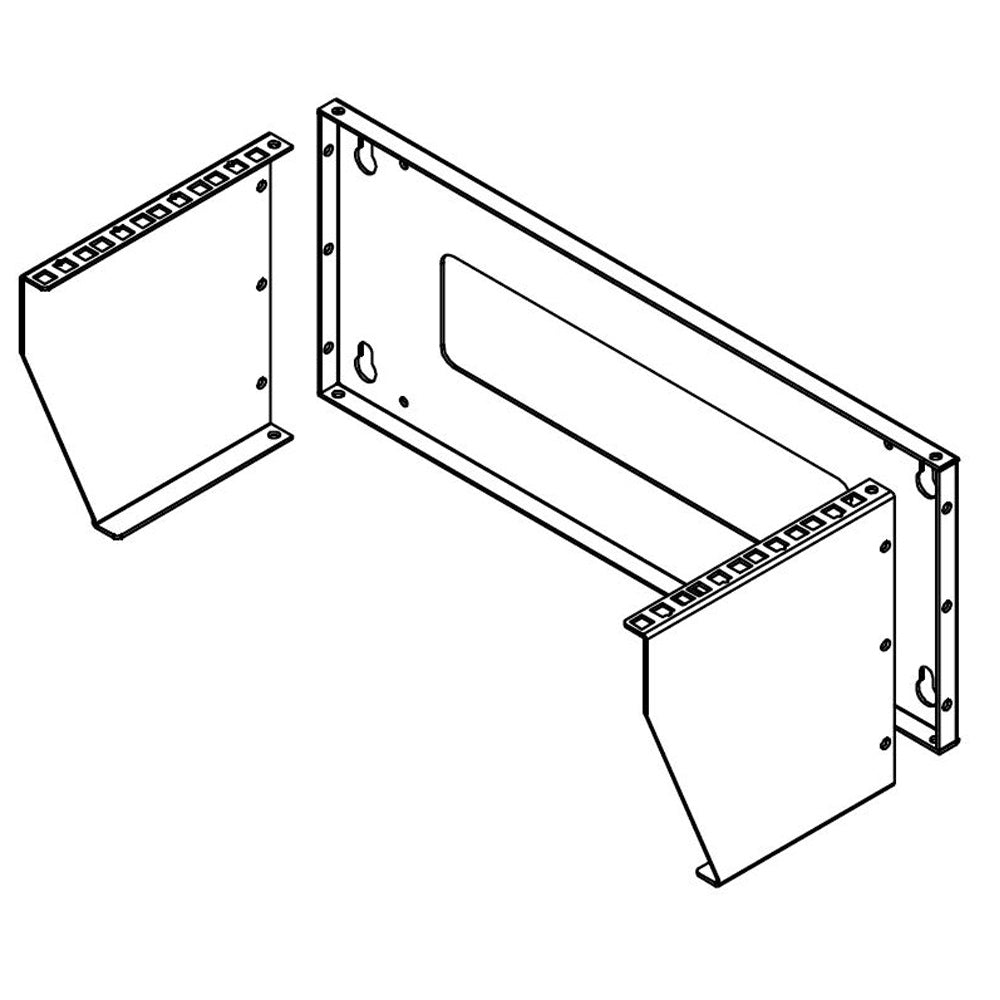

This vertical wall mount rack is 4U in depth. It is used for mounting 19" wide networking equipment vertically. Works well in a small office or home where space is limited.
Physical Characteristics |
Color |
Black |
Finish |
Powder Painted |
Material |
2.0mmSPCC Cold Rolled Steel
|
Depth in units |
4U |
Height in inches |
7.8 inches [198mm]
|
Rail Mounting Style |
Square Hole Punched Rails
|
Mounting Rail Thickness |
2.2mm |
Mounting Width |
19 Inches
|
Overall Dimensions |
7.8Hx 19.2W x 7.7D Inches
|
Rear Wire Access Hole |
1 (15.6 x 3 inches)
|
Load Capacity |
66lbs(30kg)
|
Wall Mounting Hardware |
Not Included |
Equipment Mounting Hardware |
Included |
Approvals |
ANSI/EIA |
Yes |
RS-310-D |
Yes |
IEC60297-2 |
Yes |
DIN41494 |
Yes |
PART1 |
Yes |
PART7 |
Yes |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Packaging Information |
Package Quantity |
1 |
Product Weight |
7 lbs [3.18kg] |
Content |
Included in Package |
1 -Vertical Wall Mount Rack |
|
10 - M6 Black Screws with Washers and Clip Nuts
|
|
10 - M6 Clip Nuts
|
