Video Converter - HDMI to 12G SDI - 4K@60Hz YUV 4:2:2

Video ConvertersSKU: VC-112

Price:
Sale price$388.22 USD
Stock:
In stock

Description

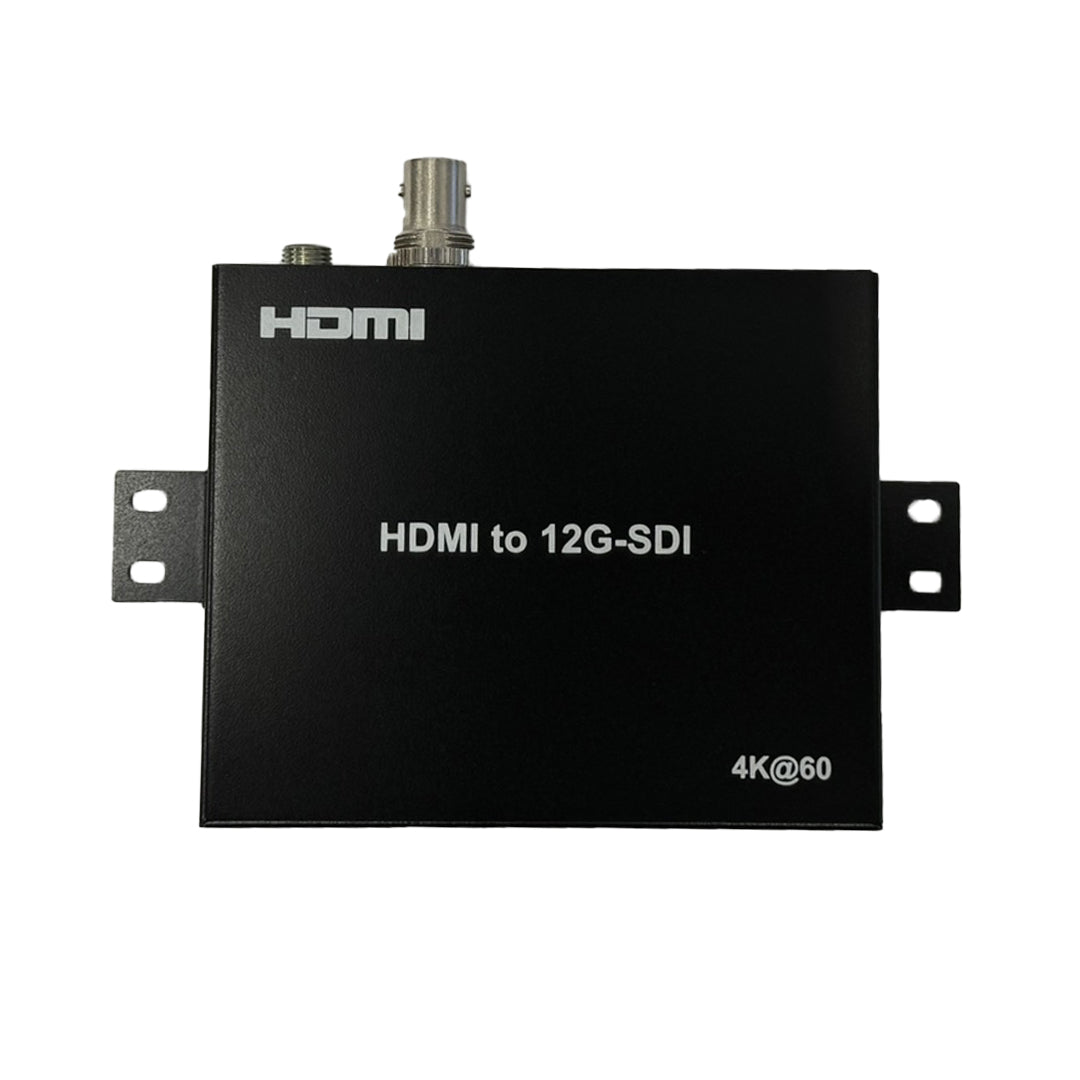

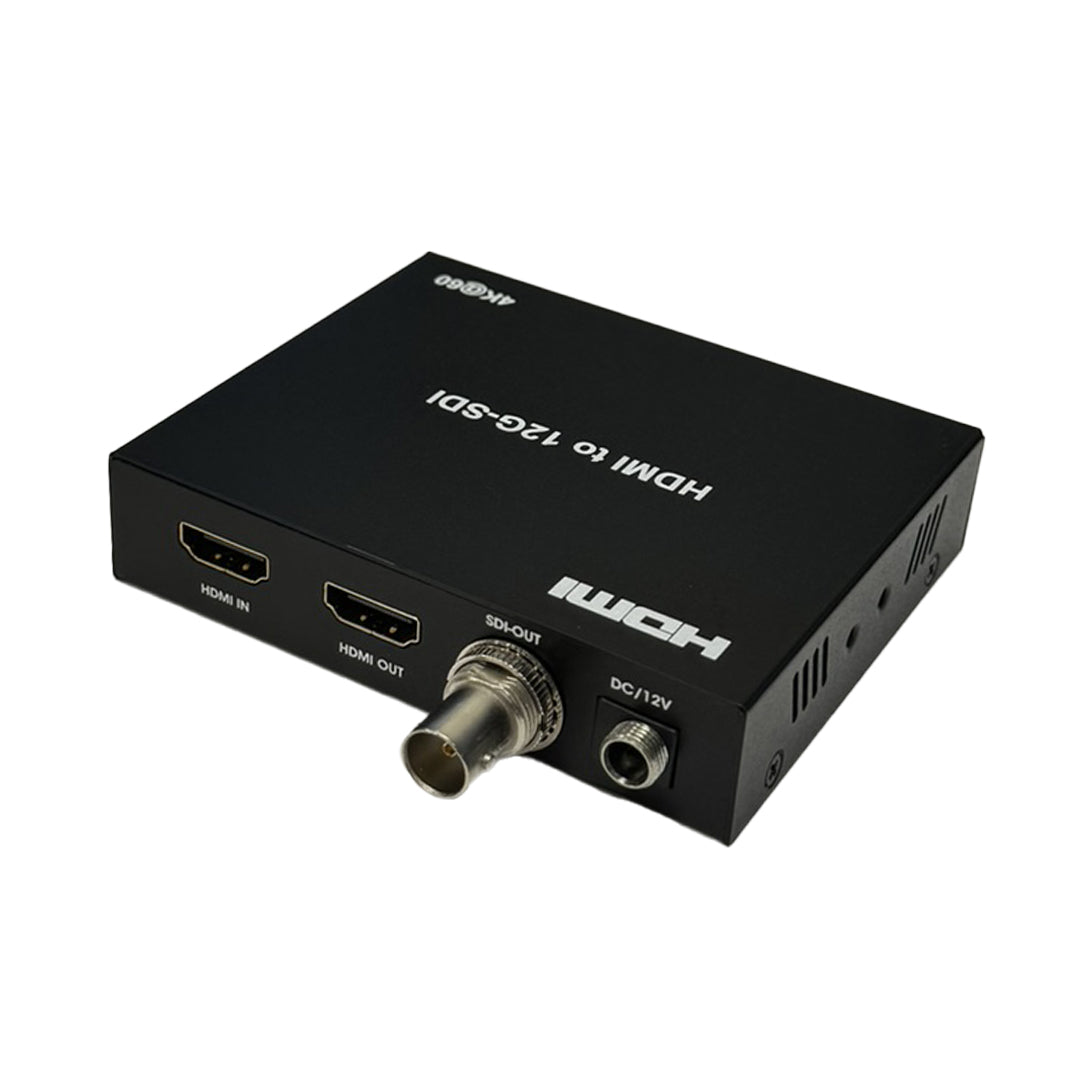

This HDMI video converter consists of oneĀ HDMI input, one HDMI output and one SDI output. It supports 4K ultra HD @60Hz YUV 4:2:2.Ā This is typically used in broadcast / film production applications.

Physical Characteristics
Color Black
Housing Metal
Dimension (LxWxH) 94 x 79 x 20mm
Operating Temperature -5 to +40ā„ƒ(+23 to +95ā„‰)
Operating Humidity 5 to 90%RH (No Condensation)
Power
Power Supply DC 12V/1A
Connector(s)
Input 1 -Ā HDMI
Output

1 - HDMI

1 - SDI

Performance
Video Format Supported 4k@60hzYUV4:2:2/ 4k@30HZ/1080p/1080i/720p
Maximum Resolution 4Kx2K@60Hz, YUV 4:2:0
SDI Cable Distance
80m for 12G4k@60hz and 6G 4k@30hz , 120m for 3G 1080p
Audio Support PCM2.0 16-24bit 48KHz
Max. Power Consumption
12 Watts
Approvals
Power Adapter c(UL)us
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.80 lbs
Contents
Included in Package 1 - Converter

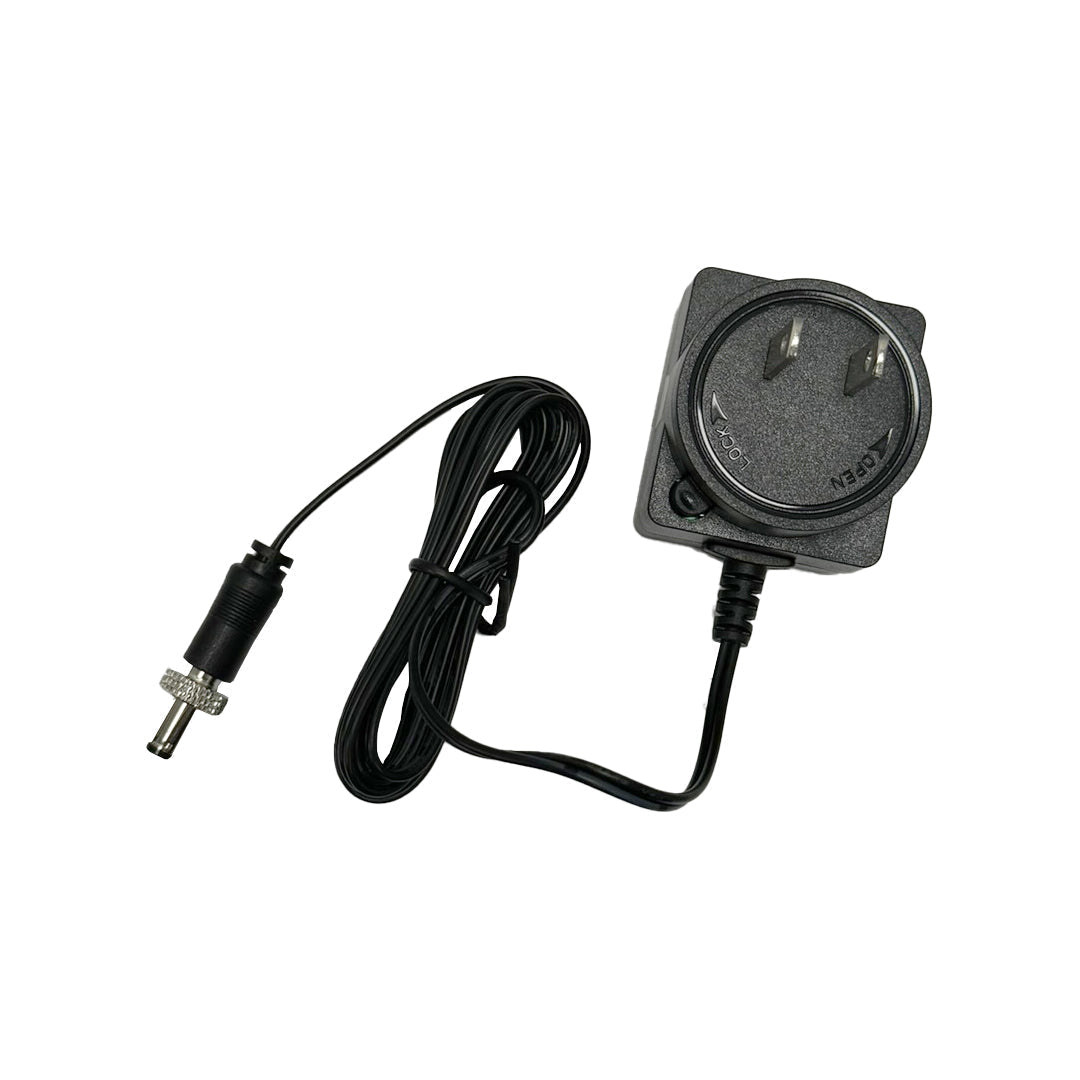

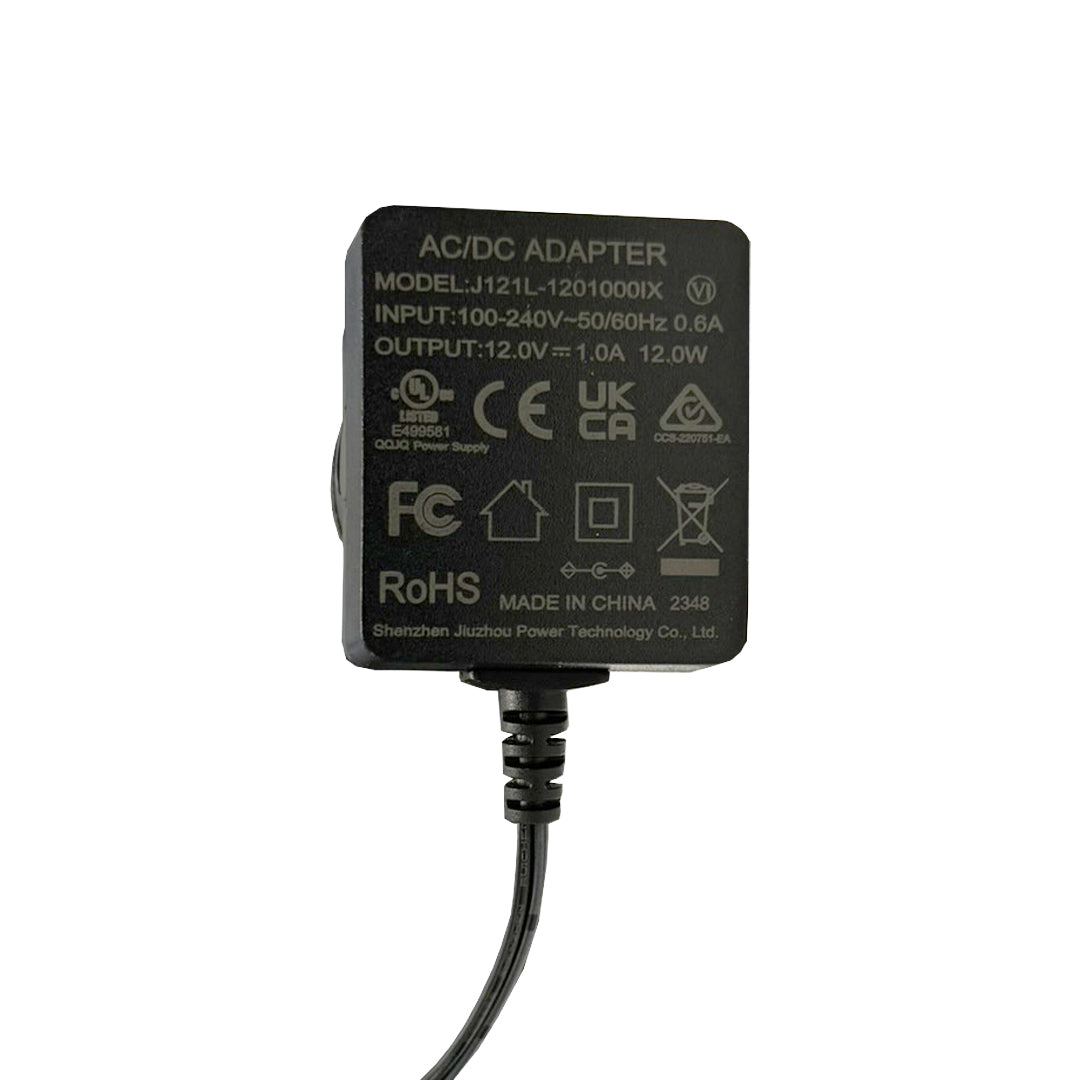

1 - DC 12V 1A Adapter
1 - Manual
2 - Mounting Ears
SKU Weight
VC-112 0.8 lb
