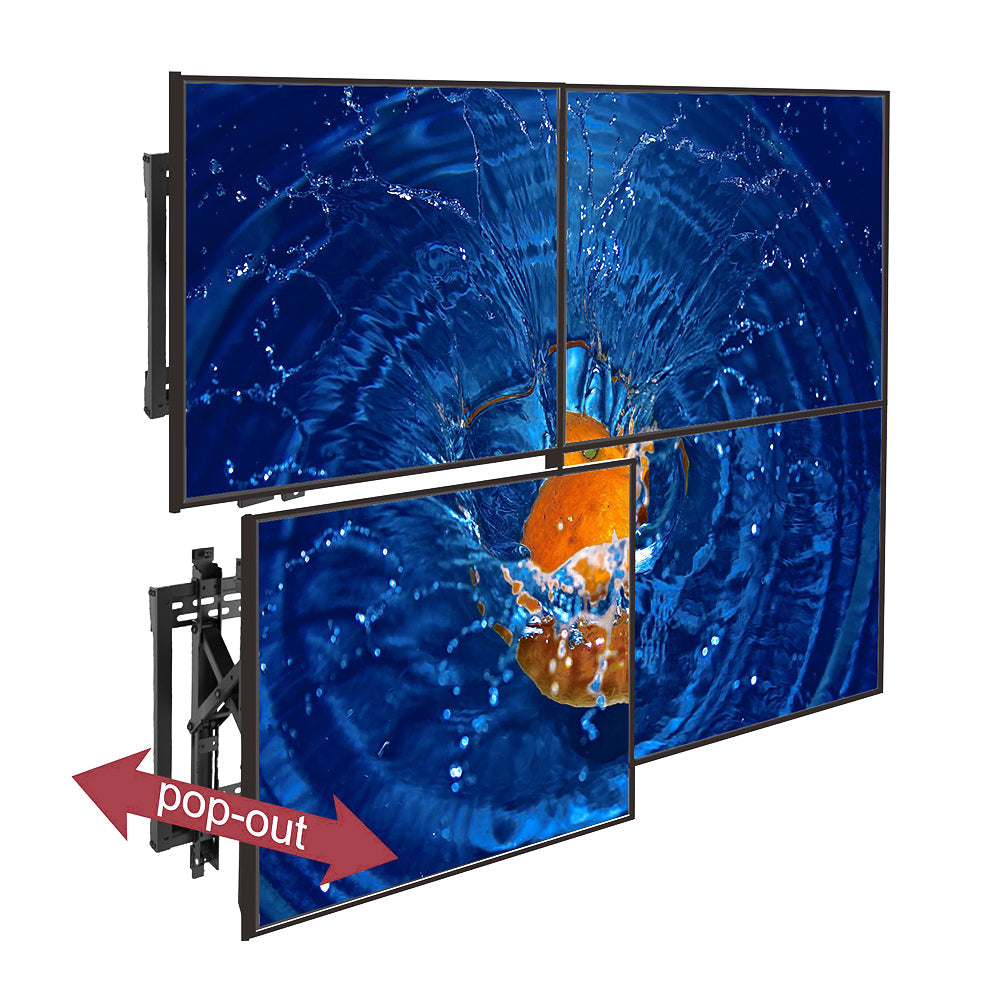

This pop-out video wall mount bracket is designed to hold most 45 inch to 70 inch flat screen displays with a maximum VESA hole pattern of 600x400. It can be used on a single TV or in conjunction with additional mounts to create a video wall.

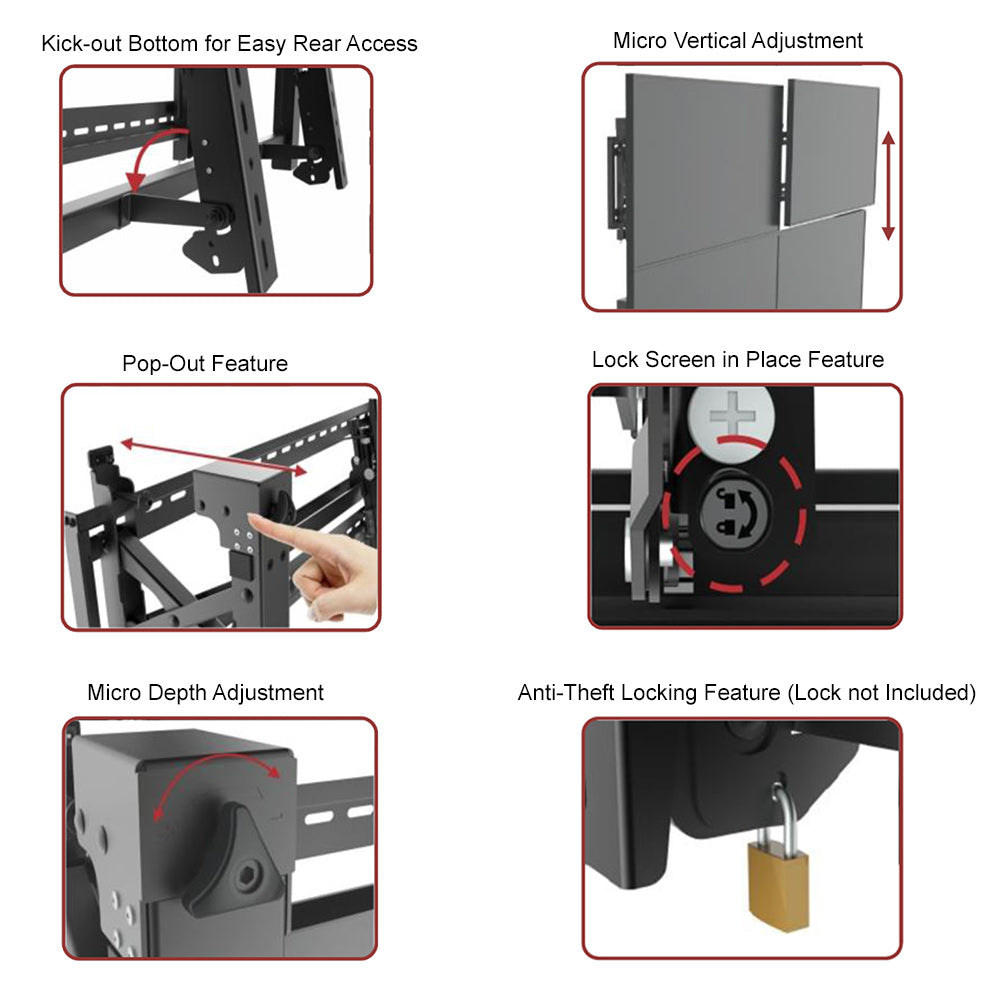

|Mounting Style||Micro Adjustment, Pop-out, Tilting
|Color||Durable Powder-coated Black Finish|
|Mounting Pattern||VESA 200X200, 400X200, 300x300, 400x400, 600x400|
|Screen Size||45 - 70 inches [114 - 178cm]|
|Weight Capacity||154lbs [70kg]|

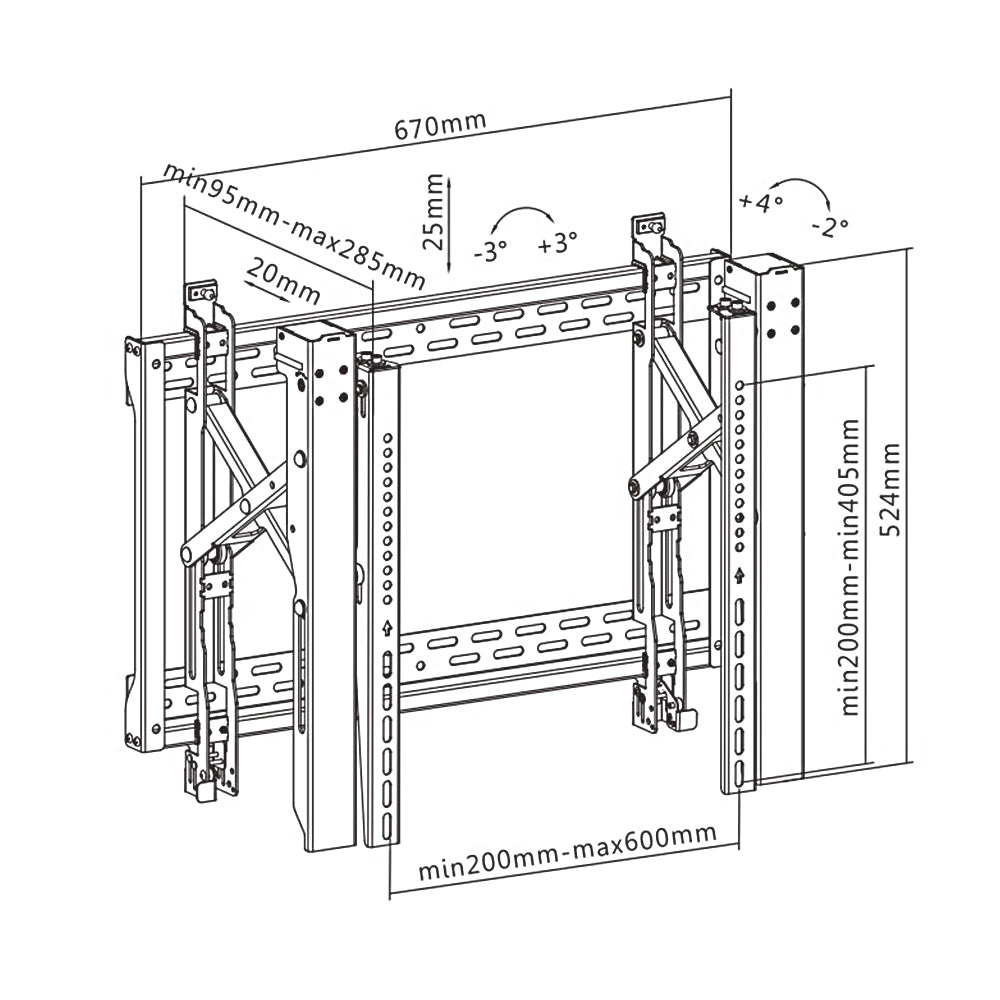

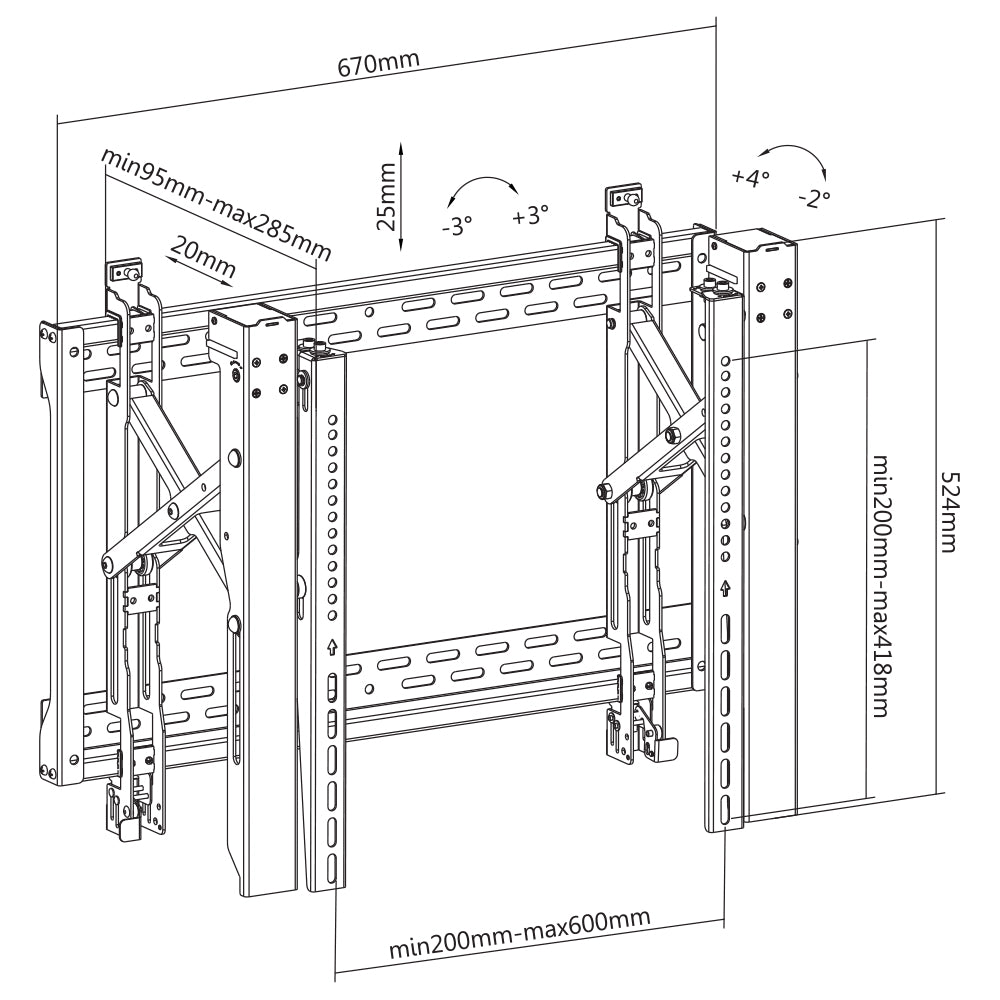

|Profile||95 - 285mm|
|Level Adjustment||-3° ~ +3°|
||-2° ~ +4°
|Installation||Solid Wall or Double Stud|
||Up/Down 28mm, In/Out 18mm
|Mounting Hardware||4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x20 Screws
4 - M8x30 Screws
4 - Rectangular Washers
8 - Small Spacers
4 - Big Spacers
6 - ST6.3x55 Screws
6 - Concrete Anchors
6 - D6 Washers
|Product Weight||26.5 lbs [12 kg]|
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
