Description

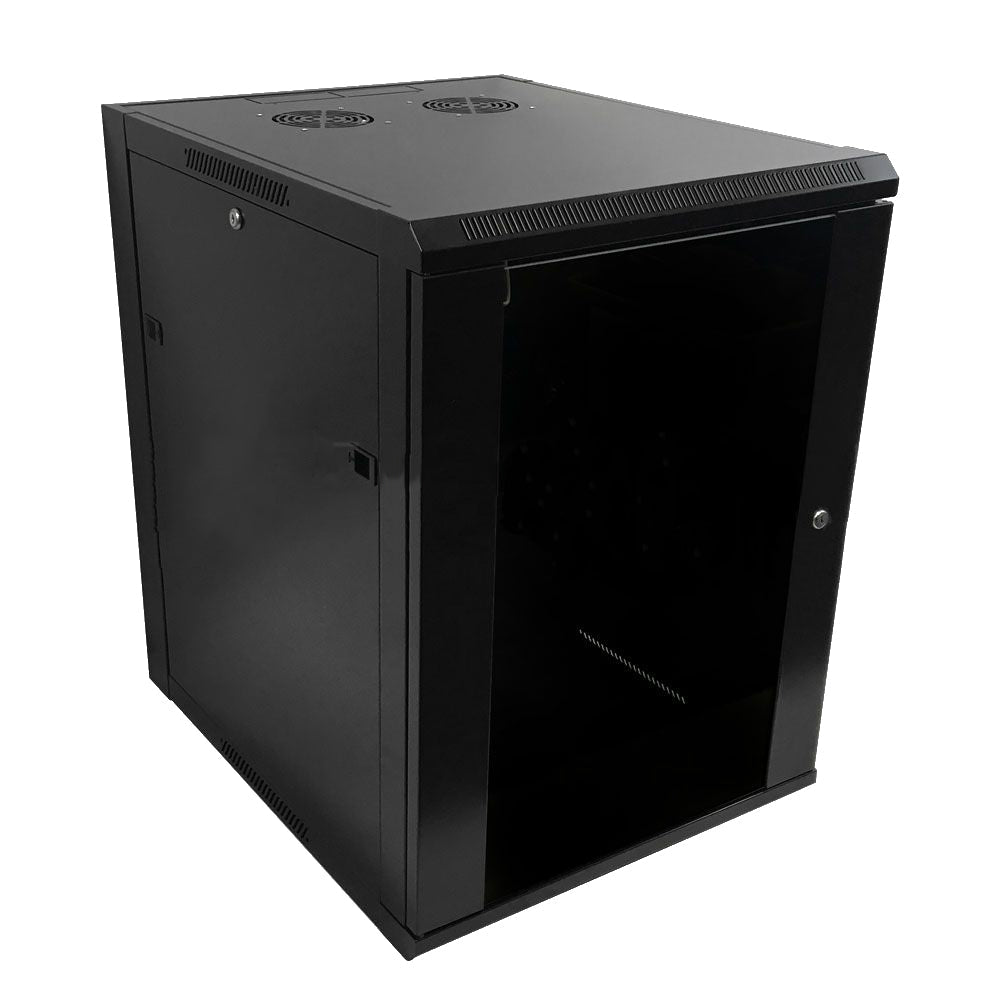

This 15U wall mount cabinet comes with a lockable front door and removable locking side panels. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately. Click here for fan kit).
| Physical Characteristics | |
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:1.35mm, Others:1.0 mm |

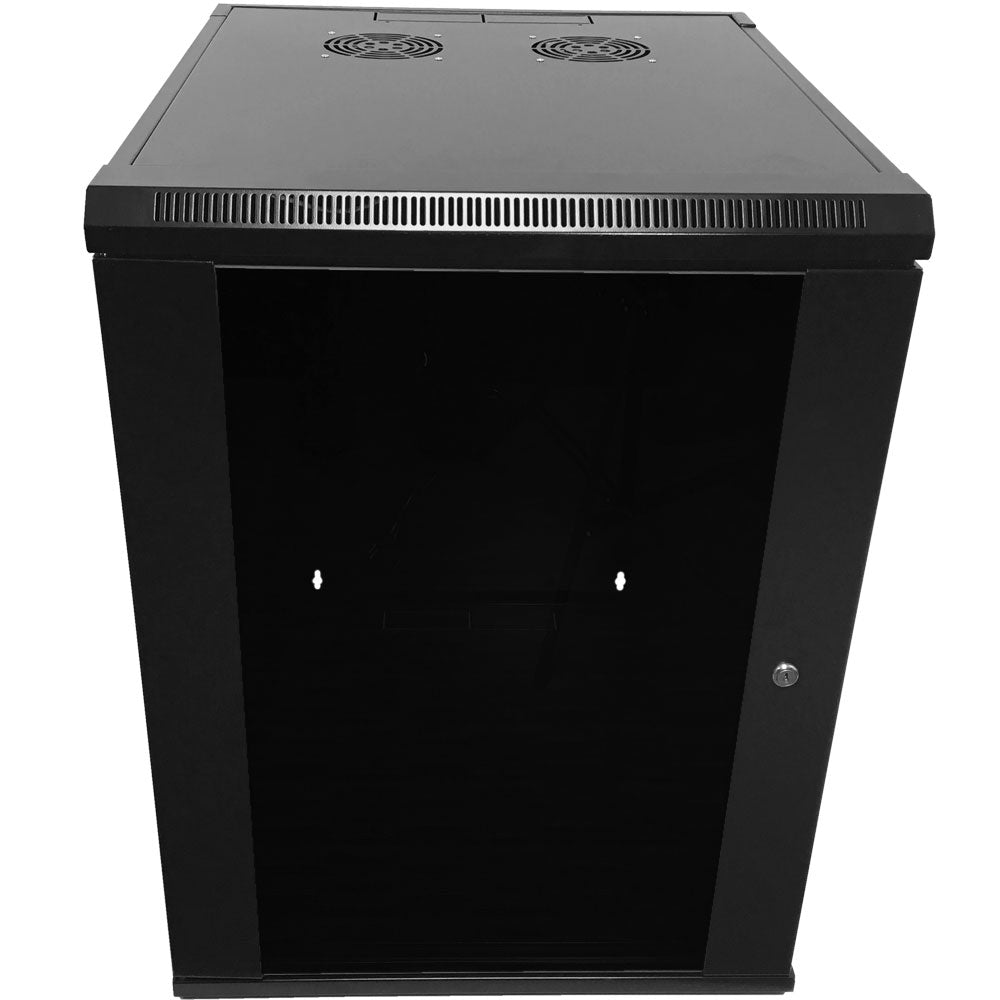

| Doors | Glass Front door can be assembled to open in either direction Opening angle of front door is over 180ās |
| Locks | Locking front door and side panels |

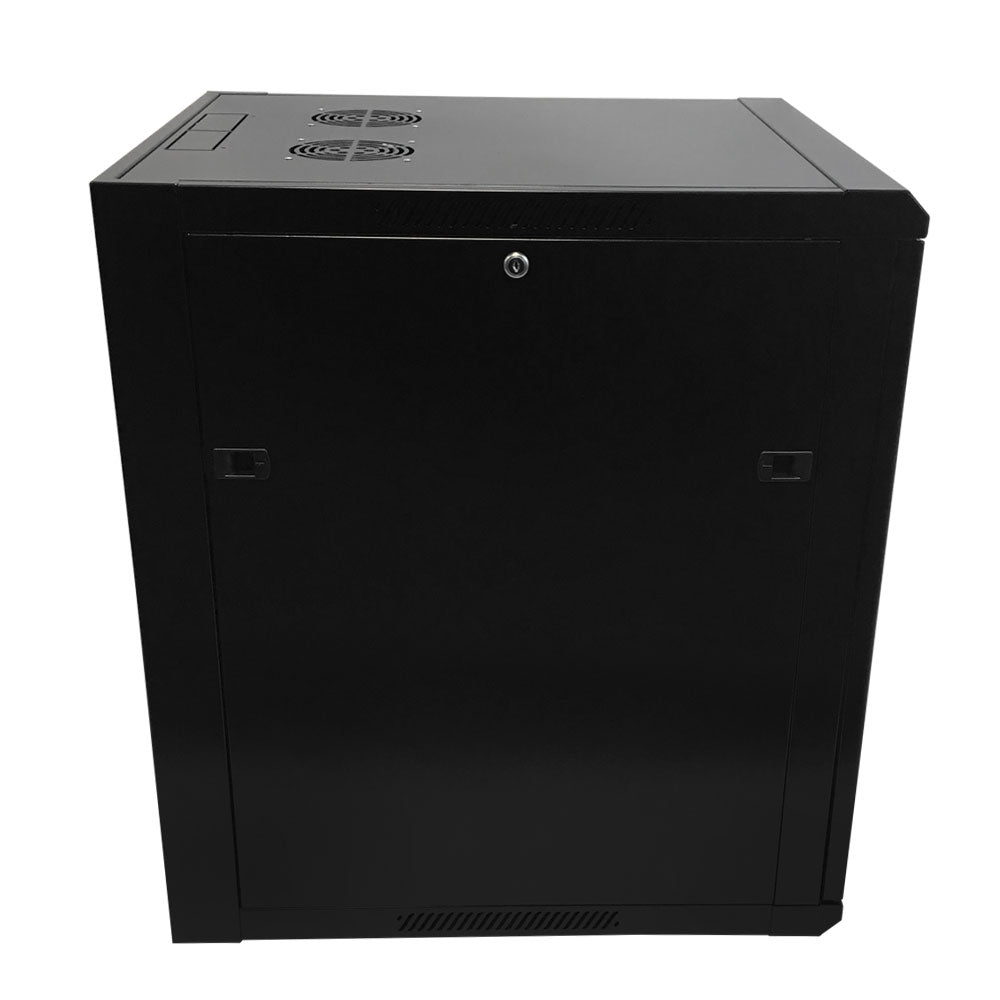

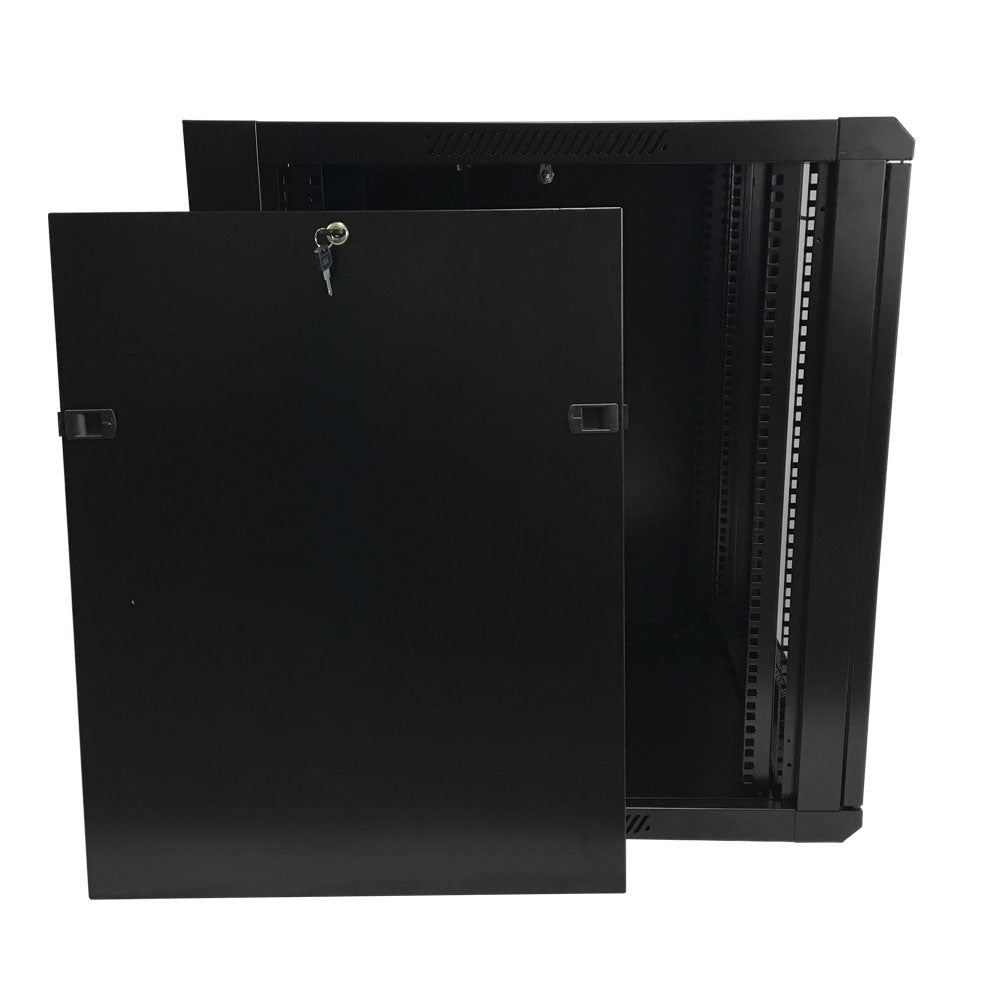

| Removable Side Panels | Yes |
| Adjustable Mounting Profile Installation | Yes |

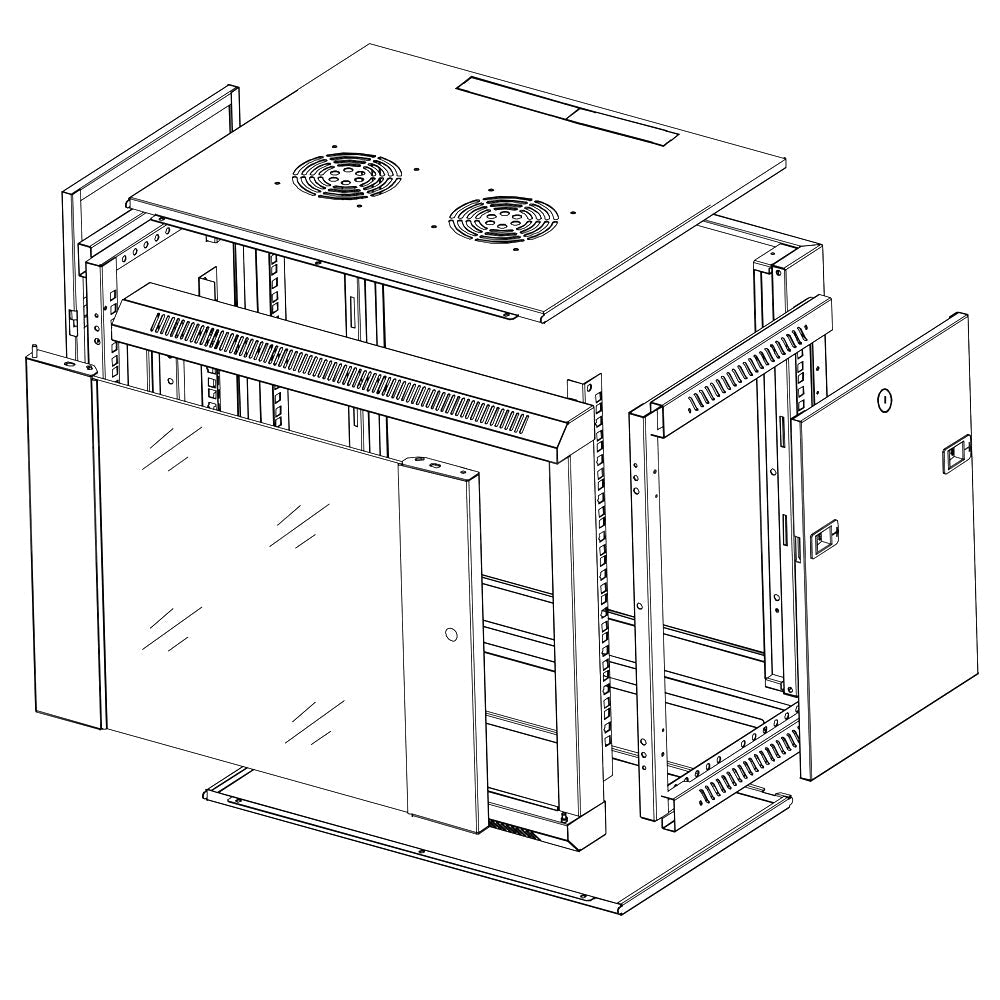

| Assembly Required | Yes (Flat Packed) |
| Loading Capacity | Maximum 132 lbs [60 kg] |
| Cable Entries | Cable entry on both of top cover and bottom panel |
| Width | 19 inches |
| Capacity | 15U |
| Product Dimensions | 30 H, 22.5 W, 27 D inches [76 H, 57 W, 69 D cm] |

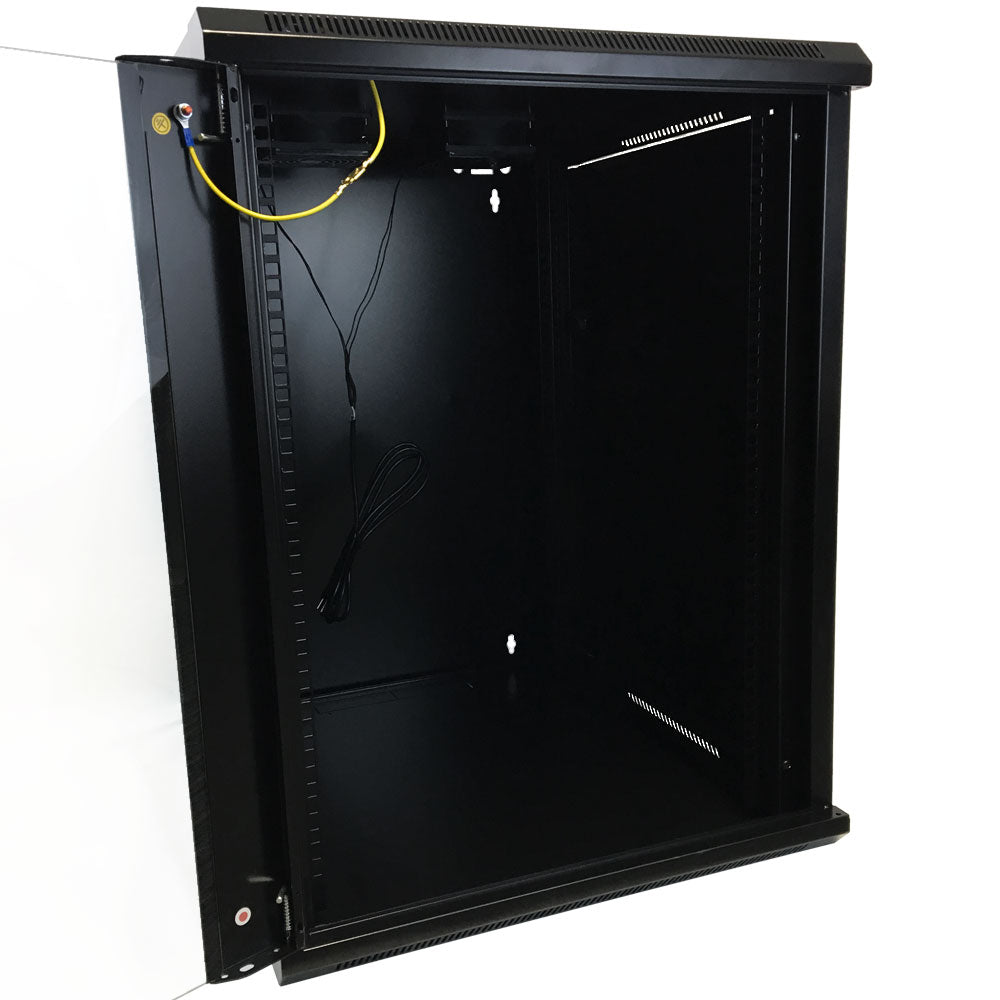

| Mounting Rails | 2 pairs of square hole rails Adjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail) |
| Usable Mounting Dimensions | 15U Height x 19" Wide x 23" Deep |
| Cooling Fans | Not Included, Sold Separately (RM-615) |

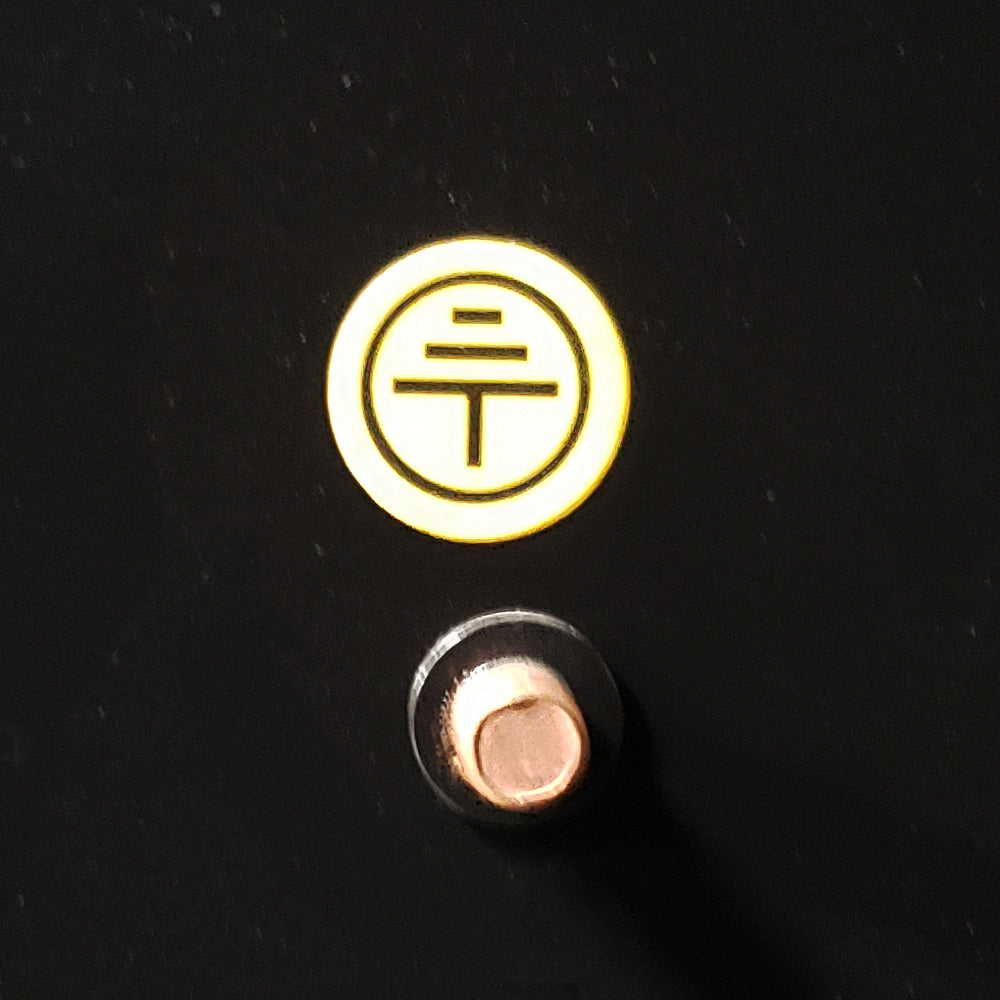

| Grounding Stud | Yes |
| Compatible Products | |
| RM-500-BRUSH |
Brush Opening Cover for Cable Knockout with Screws for RM-5XX Cabinets |
| RM-615 | Fan Kit for RM-500 Series Wall Mount Cabinets - Low Decibel 28dBa - 55 CFM - Pair |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 - Wall Mount Cabinet 15U (Unassembled) |
| Mounting Hardware |
20 Sets - M6 Screws and Cage Nuts |
| Product Weight | 78 lbs [35kg] |
Product Weights
| SKU | Weight | |
| RM-511-15U | 77.0 lb |
