Description

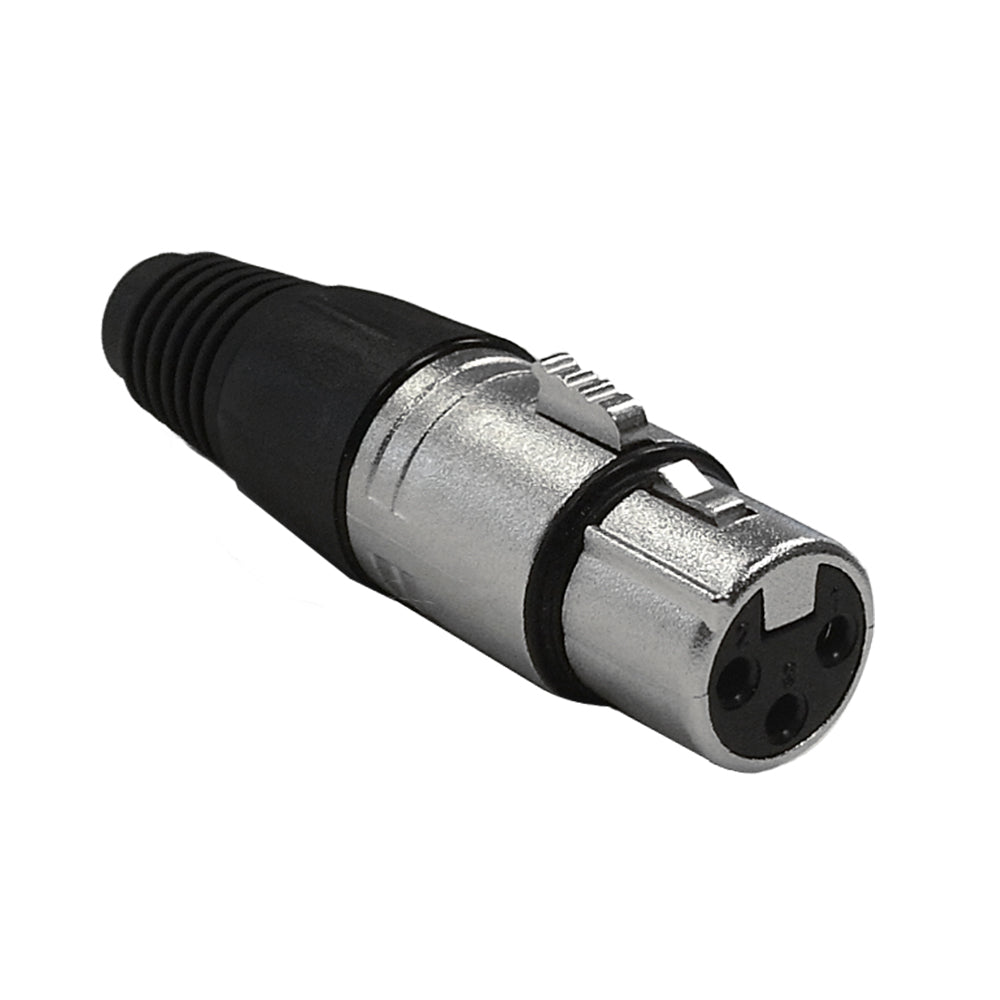

This is a XLR female solder connector. It is meant to be terminated onto audio cable.
| Physical Characteristics | |
|---|---|
| Color | Nickel/Black |
| Pin Plating | Gold |
|
Jack |
Bronze |
|
Button springĀ ground strap |
Stainless steel |
| Shell | Zinc Alloy |
| Button | Zinc Alloy |
| Sealing Ring | Rubber |
| CableĀ | PA (Polyamide) |
| Screw Barrel | PAĀ (Polyamide) |
| StopperĀ | PP (Polypropylene) |
| Tail Sleeve | PVC |
|
Connection Type |
Welding |
|
Cable Sheath Diameter |
ā¤Ī¦7.5 |
|
Inner Core Structure |
2.5mm2 |
|
Locking Structure |
Play type Hook type |
| Wire Gauge | 14AWG |
|
Insertion andĀ ExtractionĀ Force |
ā¤20N |
|
Life Time |
1000 |
| Electrical Characteristics | |
| Contact resistance | Ā ā¤ 5m Ohm |
| Dielectric strength | 1.5KV |
| Insulation resistance | >10m Ohm |
| Rated current | 10A |
| Rated voltage | 50V |
| Connector(s) | |
| Connector | XLR Female Solder |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.25 lbs [0.11 kg] |
| Contents | |
| Included in Package | 1 - Connector |
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-XLRF | 0.25 lb |
