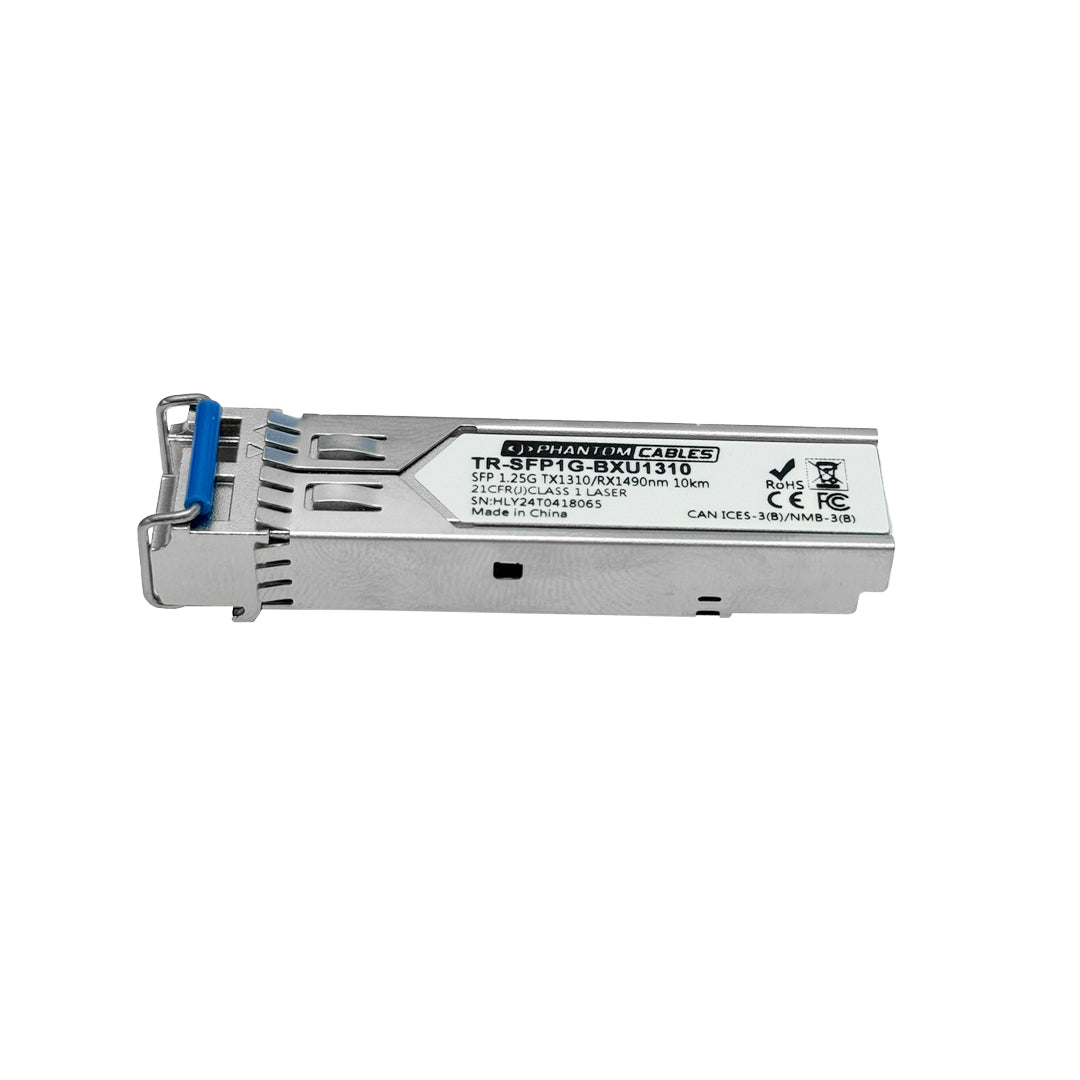

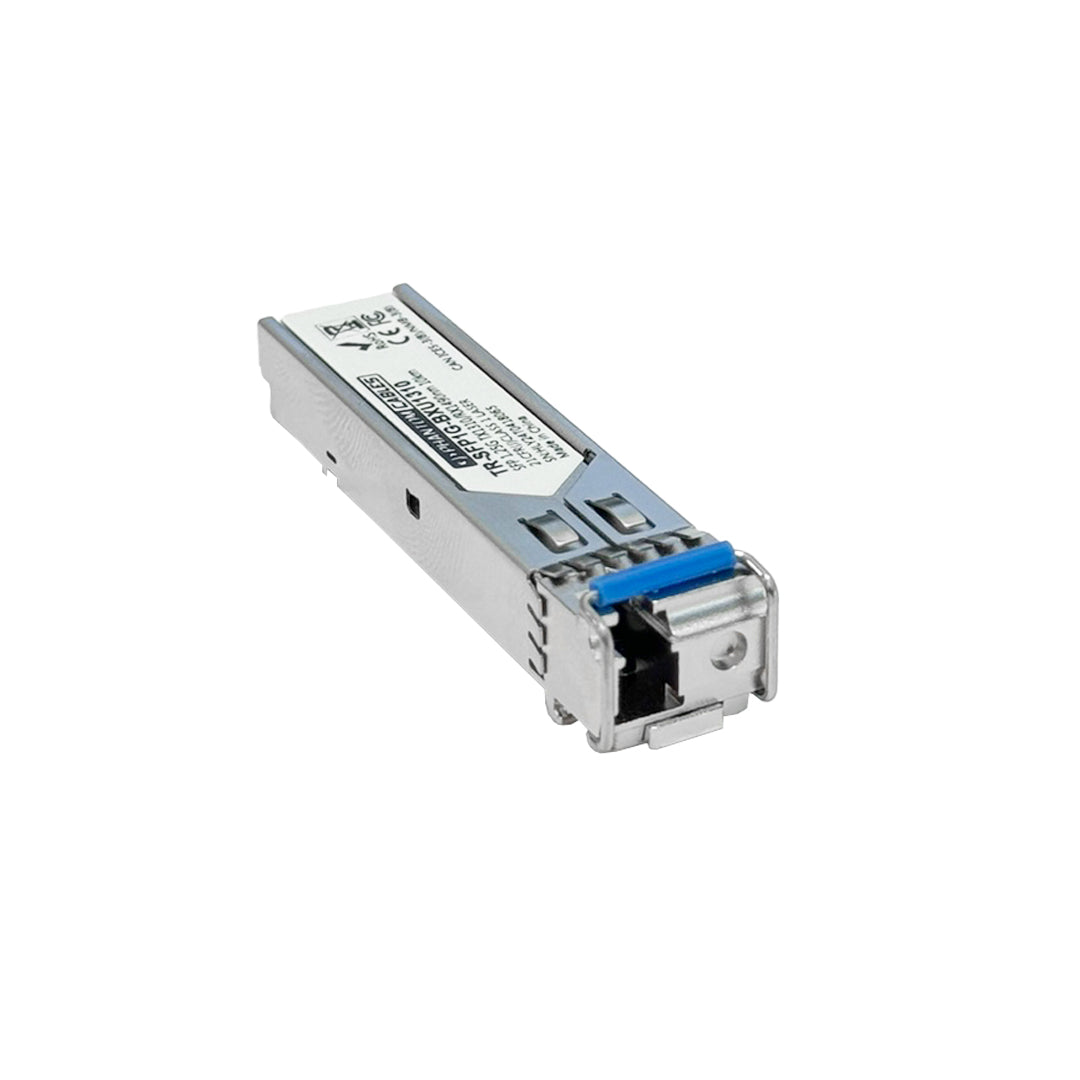

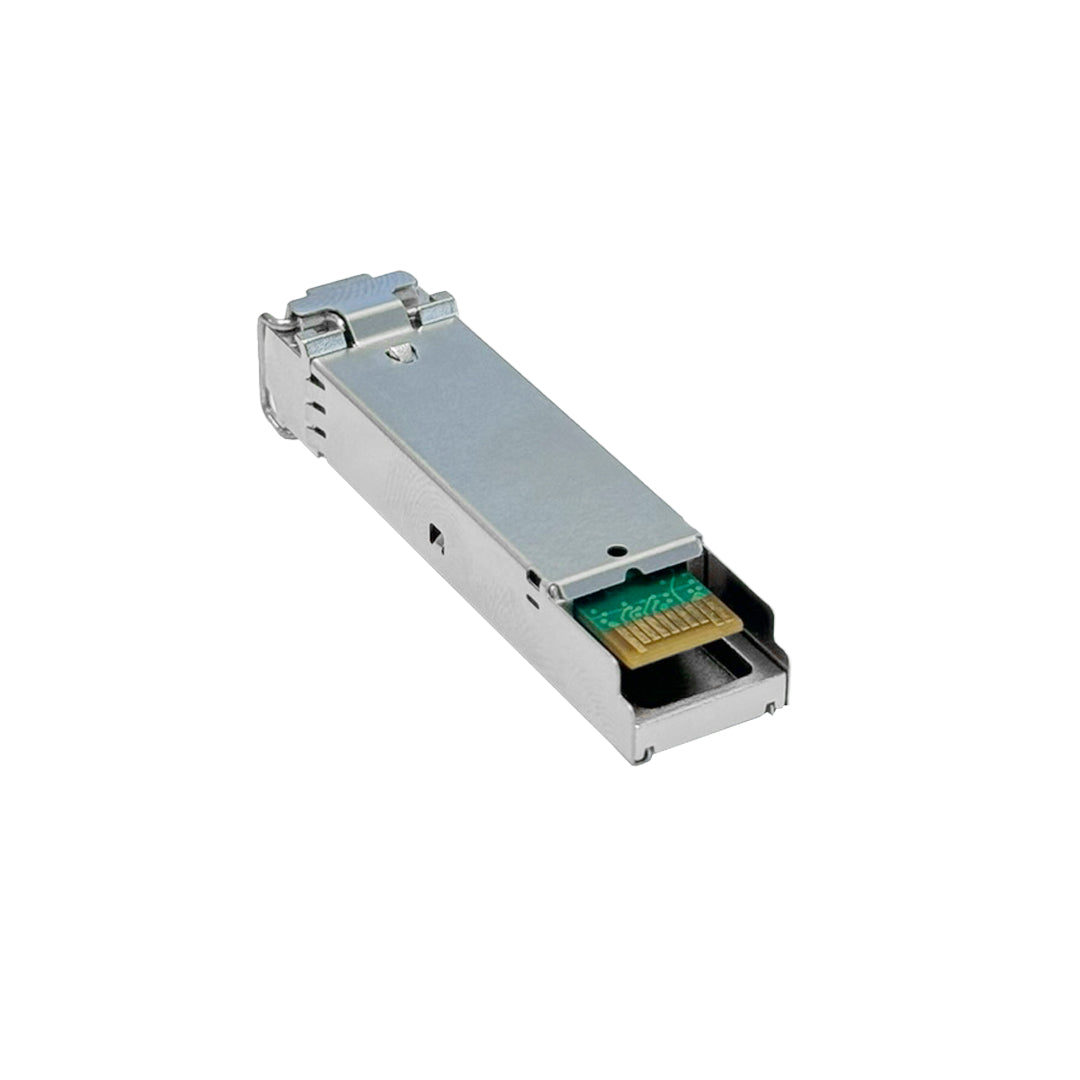

This is a bidirectional Enhanced Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 1.25 Gbps up to 10km over a simplex singlemode fiber cable. It is used in network devices with an SFP slots. The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Features:
- Dual data-rate of 1.25Gbps/1.063Gbps operation
-
Two types：
A:1310nm FP Laser transmitter,1490nm PIN receiver
B:1490nm DFB Laser transmitter,1310nm PIN receiver
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with RoHS
- Compatible with SONET OC-24-LR-1
- +3.3V single power supply
Applications:
- Fiber connectivity where only one fiber core is available
- FTTx networks to reduce fiber deployment costs
- Networks with limited fiber infrastructure or where laying new fiber is not feasible
- High density applications to maximize data transmission capacity while minimizing physical space
- CCTV backhaul over long-distance, single-fiber links
- Last-mile connectivity in telecom applications
- Disaster recovery links using existing single-fiber routes
- Often used in data centers, campuses, metro systems, CCTV environments, telecom
Specifications
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Simplex | |
| Performance | ||
| Media Supported | 1000base-BX-U Singlemode Fiber | |
| Data Trasfer Rate | 1.25Gbps | |
| Maximum Transmission Distance |
10km |
|
| Wave Length |
TX: 1310nm RX: 1490nm |
|
| DDM Support | Compliant | |
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
- Avaya
- Force10
- D-Link
- EMC2
- F5 Networks
- Hirschmann
- Linksys
- Moxa
- MRV
- Netgear
- Nokia Siemens Networks
- Palo Alto Network
- Qlogic
- RAD
- Ruijie Networks
- Supermicro
- Synology
- Telco Systems
- TP-Link
- Trendnet
- Ubiquiti
- WatchGuard
- ZTE
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on this products to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
