Description

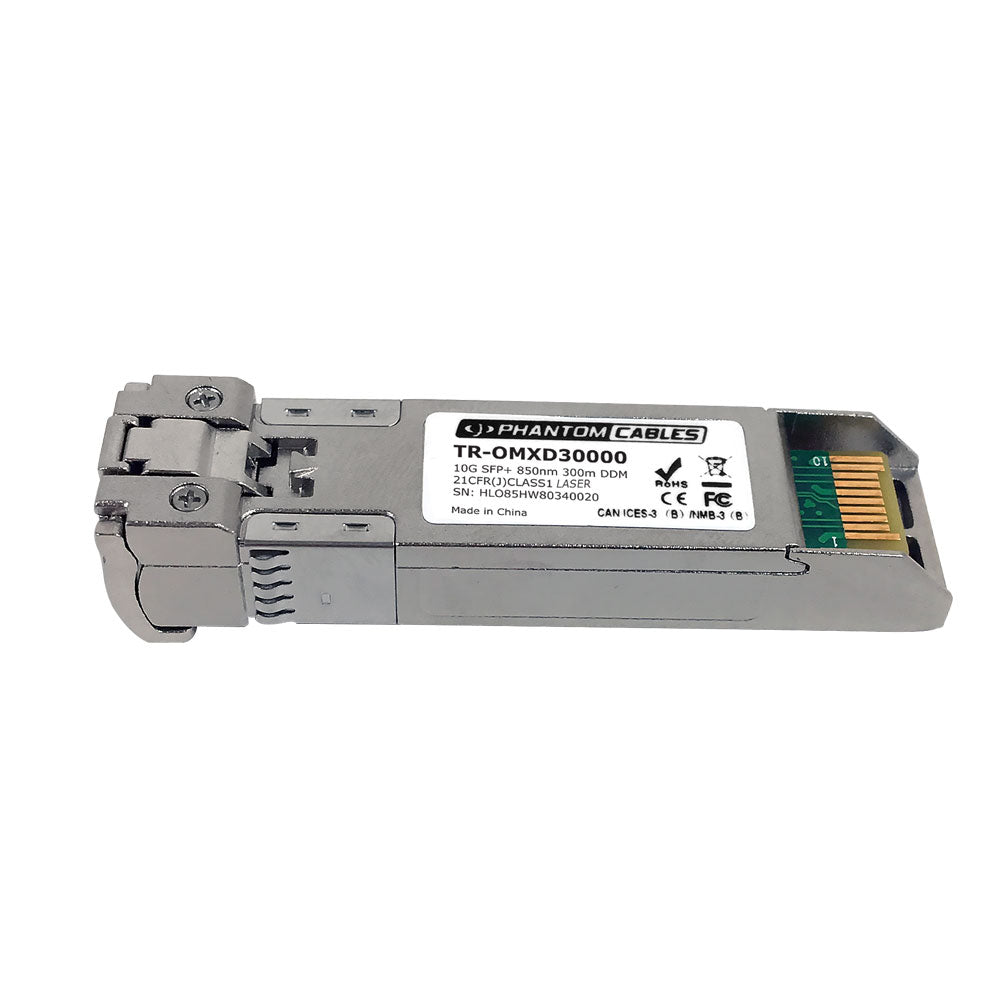

This is an Enhanced Small Form-factor Pluggable (SFP+) transceiver module with maximum data transfer rate of 10 Gbps up to 300m over multimode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Huawei and the Huawei logo are trademarks or registered trademarks of Huawei Technologies Co., Ltd.. This product is not certified or endorsed by Huawei Technologies Co., Ltd..
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 80°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 10GBase-SR Multimode Fiber | |
| Maximum Transmission Distance | 300m with 50/125µm OM3 MMF |
|
| Wave Length | 850nm | |
| DDM Support | Yes | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Product Weights
| SKU | Weight | |
| TR-OMXD30000 | 0.08 lb |
