Description

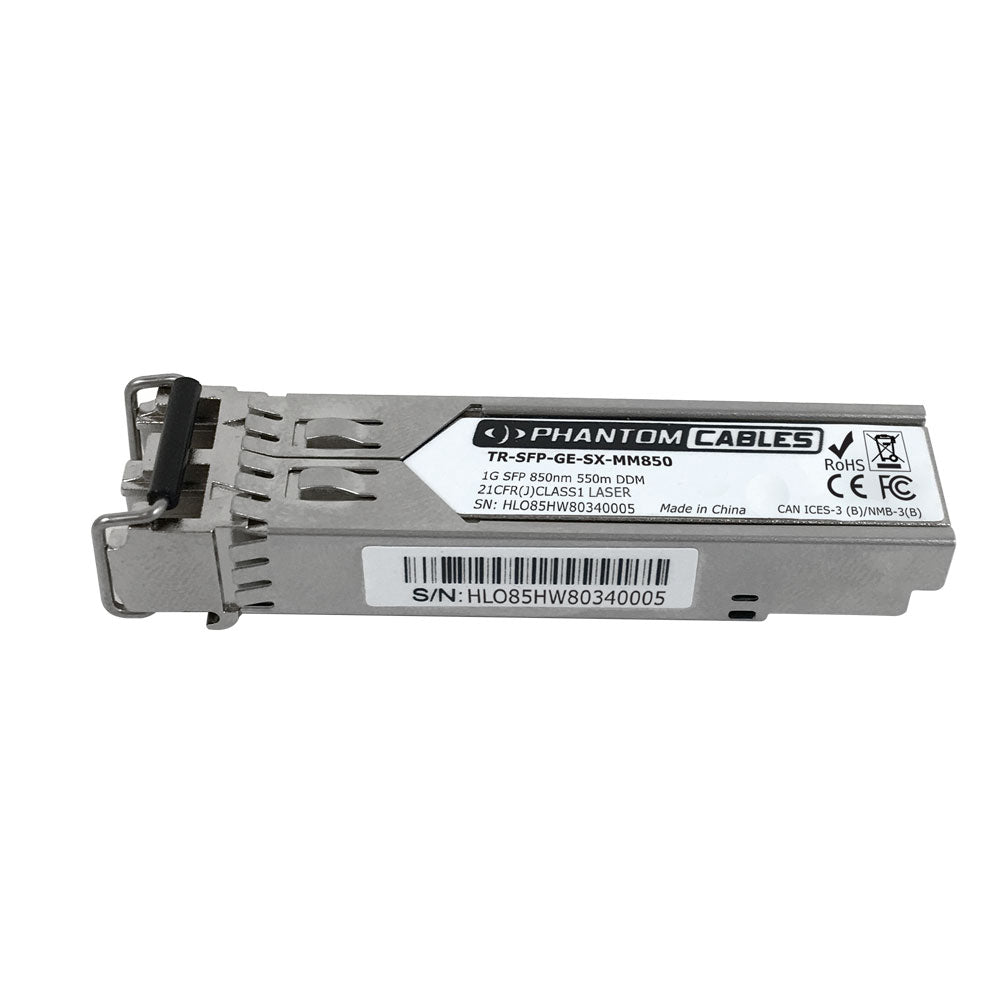

This is a Small Form-factor Pluggable (SFP) transceiver module with maximum data transfer rate of 1.25 Gbps up to 550m over multimode fiber cable. It is used in compatible network devices with an SFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
Huawei and the Huawei logo are trademarks or registered trademarks of Huawei Technologies Co., Ltd.. This product is not certified or endorsed by Huawei Technologies Co., Ltd..
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 100°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Duplex | |
| Performance | ||
| Media Supported | 1000Base-SX Multimode Fiber | |
| Maximum Transmission Distance | 550m with 50/125µm MMF |
|
| Wave Length | 850nm | |
| DDM Support | Compliant | |
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | 5 Year Warranty | |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| TR-SFP-GE-SX-MM850 | 0.08 lb |
