Description

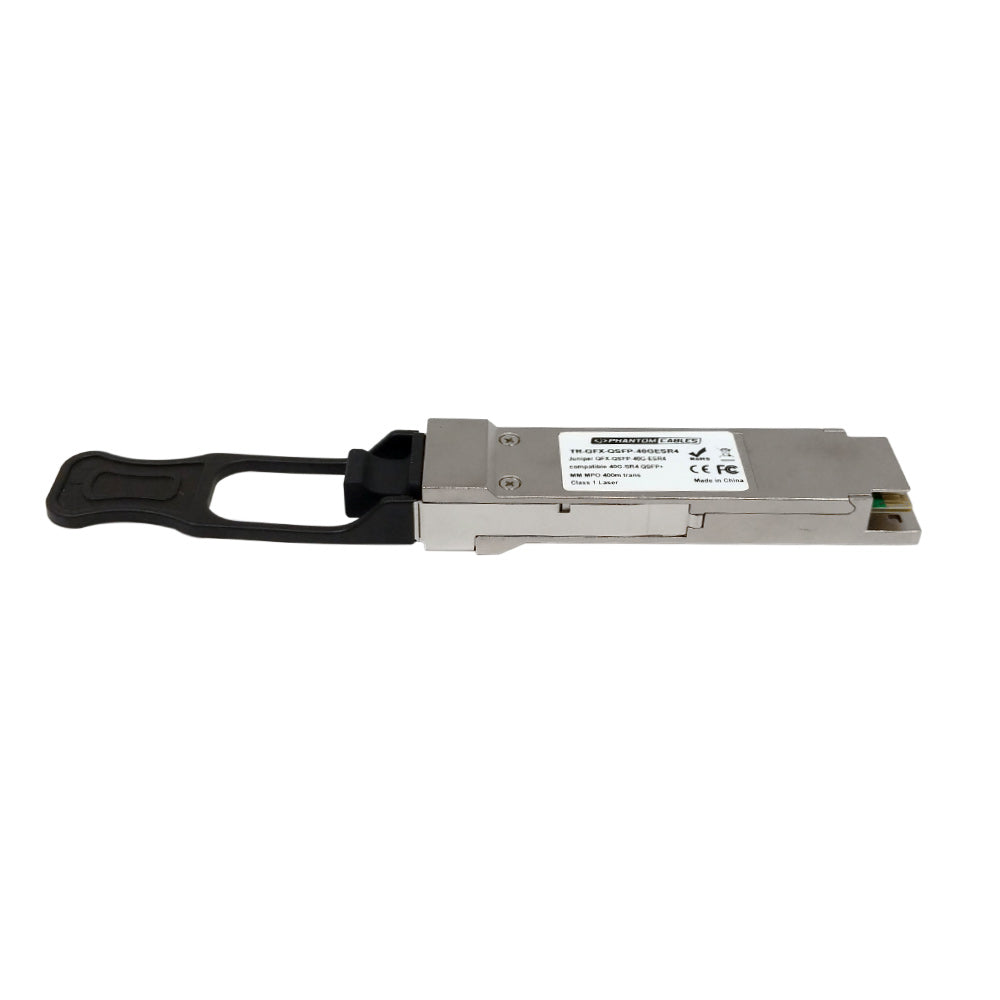

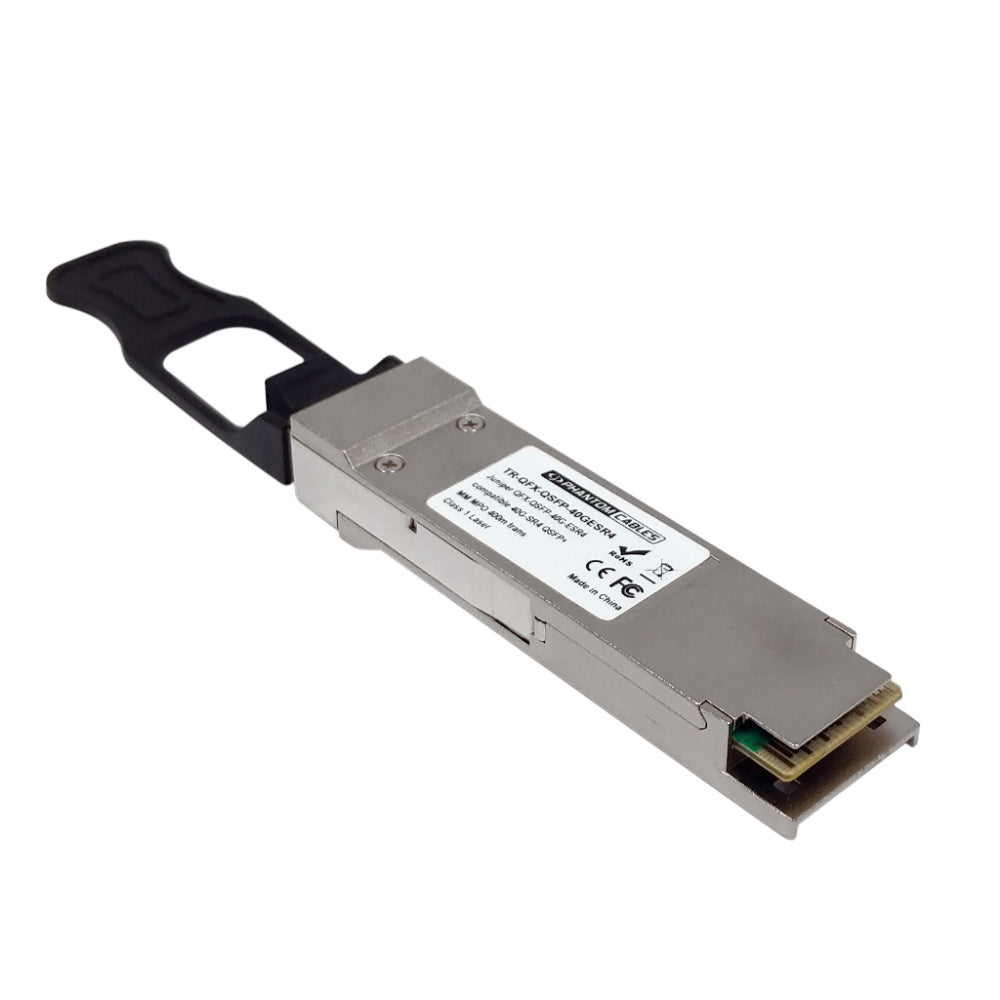

This is a Quad Small Form-factor Pluggable (QSFP) transceiver module with maximum data transfer rate of 40 Gbps up to 300m over multimode fiber cable. It is used in compatible network devices with a QSFP slot. The SFPs are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 85°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | MPO/MTP | |
| Performance | ||
| Media Supported | 40GBase-SR4 Multimode Fiber | |
| Maximum Transmission Distance | 300m with 50/125µm OM4 MMF | |
| Wave Length | 850nm | |
| DDM Support | Yes |
|
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Product Weights
| SKU | Weight | |
| TR-QFX-QSFP-40G-ESR4 | 0.08 lb |
