Description

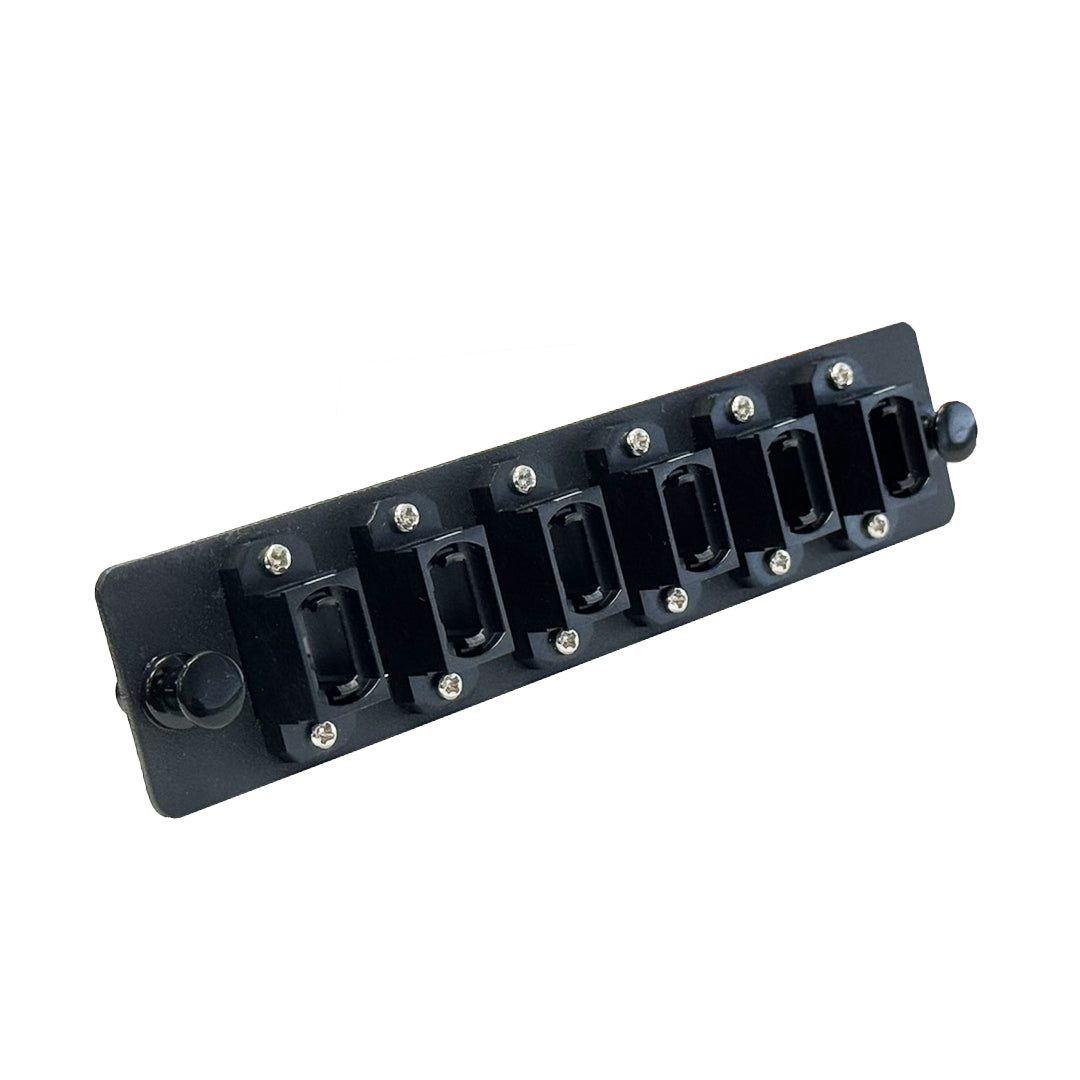

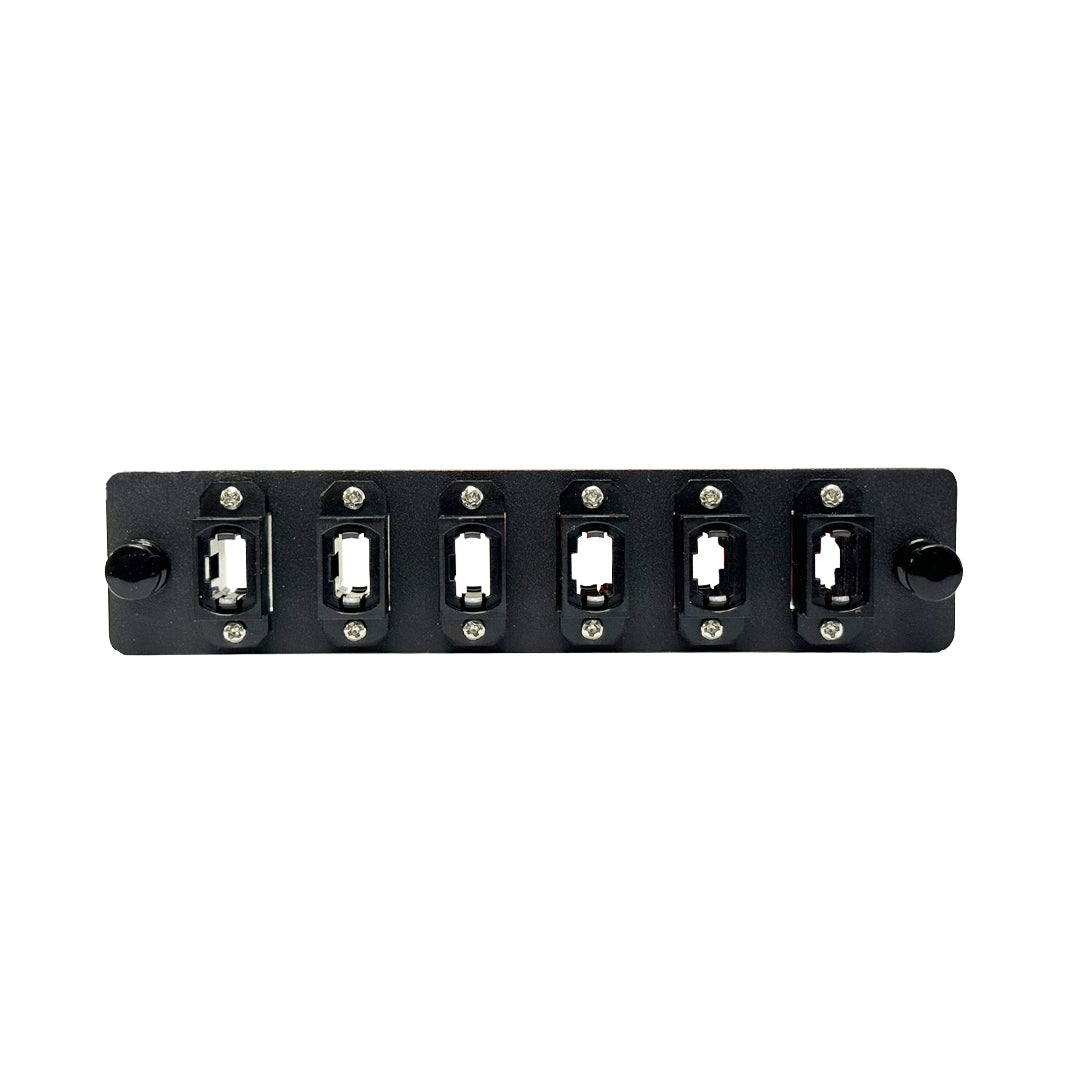

This fiber optic LGX adapter panel comes loaded with 6 MTP singlemode/multimode female to female couplers. The couplers have a straight through wiring (key up to key down). It is designed to fit our PP-F2001-1U and PP-F2001-2U rack mount panels.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Coated |
| Material | Steel |
| Adapter Material | Plastic with Ceramic Sleeve |
| Adapter Color | Black |
| Material Thickness | 1.6 mm |
| Dimensions | 0.6 inches H x 5.13 inches L (4.675 inches from center points of knobs)] |
| Connectors | |
| Front | 6 - Duplex MTP Singlemode/Multimode Female |
| Back | 6 - Duplex MTP Singlemode/Multimode Female |
| Compatible Panels | |
| PP-F2001-1U |
1U LGX Style Sliding Panel (holds 3 cassettes/panels) - Black |
| PP-F2001-2U |
2U LGX Style Sliding Panel (holds 6 cassettes/panels) - Black |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.13 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| PP-FCMTP12-6BK | 0.13 lb |
